Vacuum and Vapor Hose Diagrams
ENGINE CALIBRATION CODESLIGHT DUTY

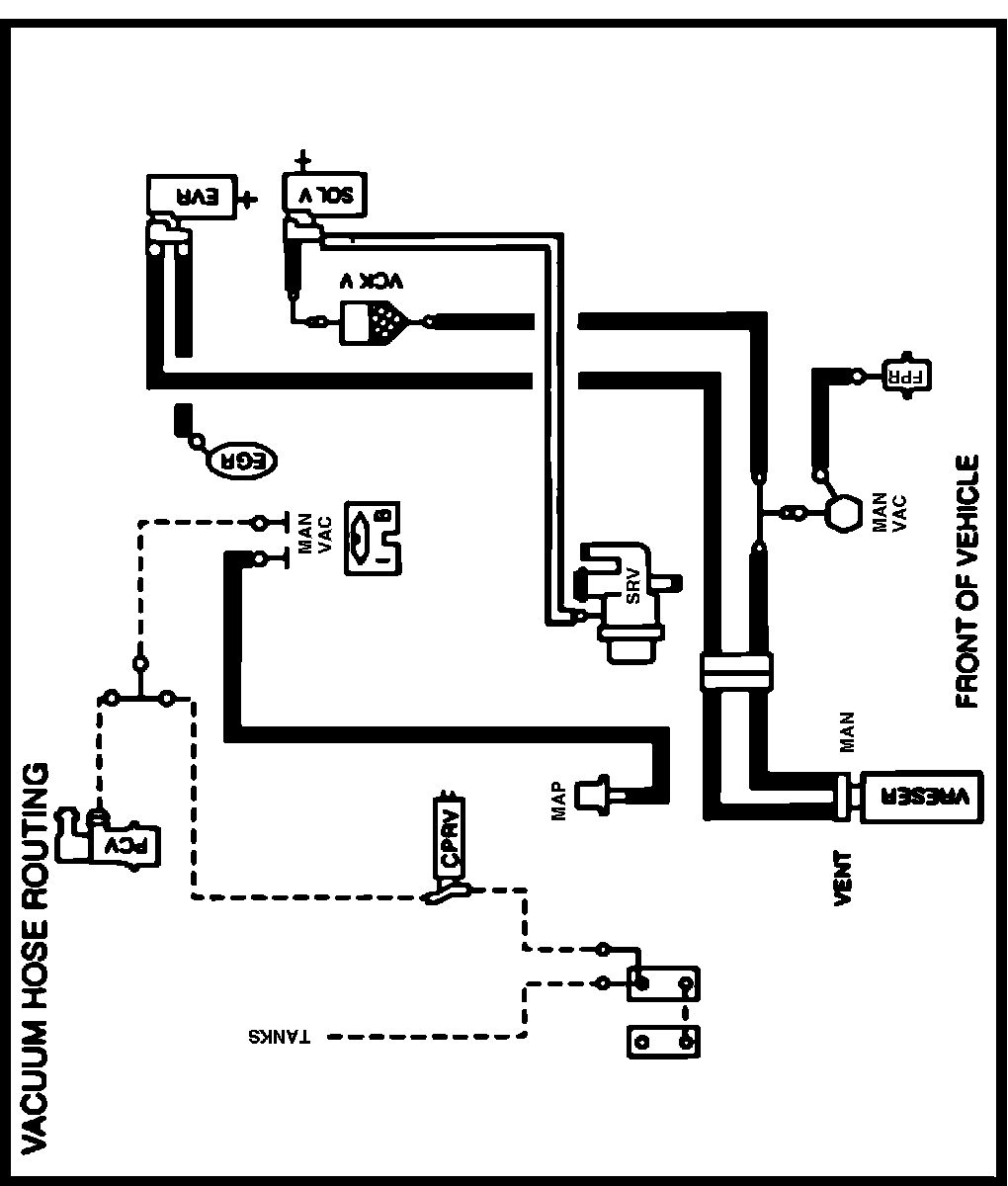

Vacuum Hose Routing:
The above image pertains to the following calibration codes:
1-98F-R00
HEAVY DUTY
Vacuum Hose Routing:
The above image pertains to the following calibration codes:
1-97A-R00 1-78A-R00 1-98B-R00
2-98A-R10 2-98B-R10 2-98E-R00
2-98E-R10
