Heater


COMPONENT TESTING PROCEDURE

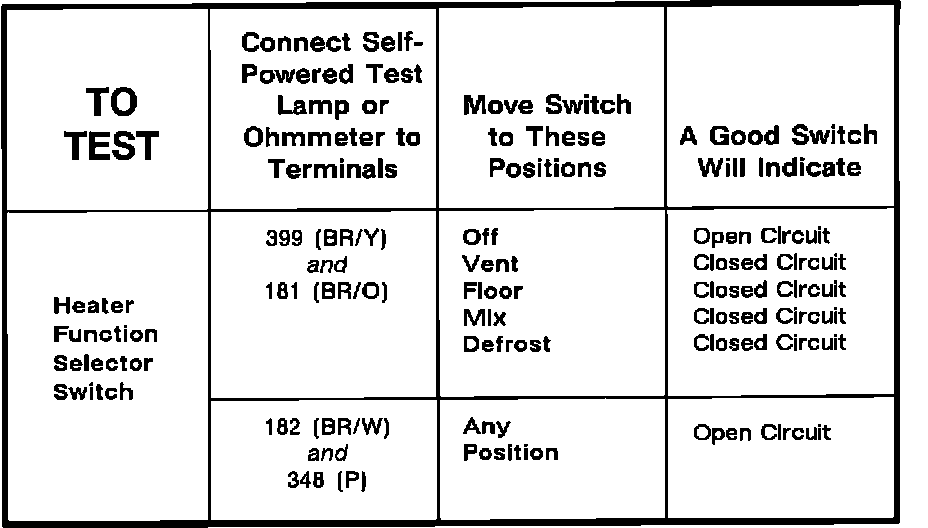

Component Testing Procedure:







TERMINAL IDENTIFICATION

Terminal Locations:






SCHEMATIC


Heater Function Selector Switch - Schematic:
