Engine Views

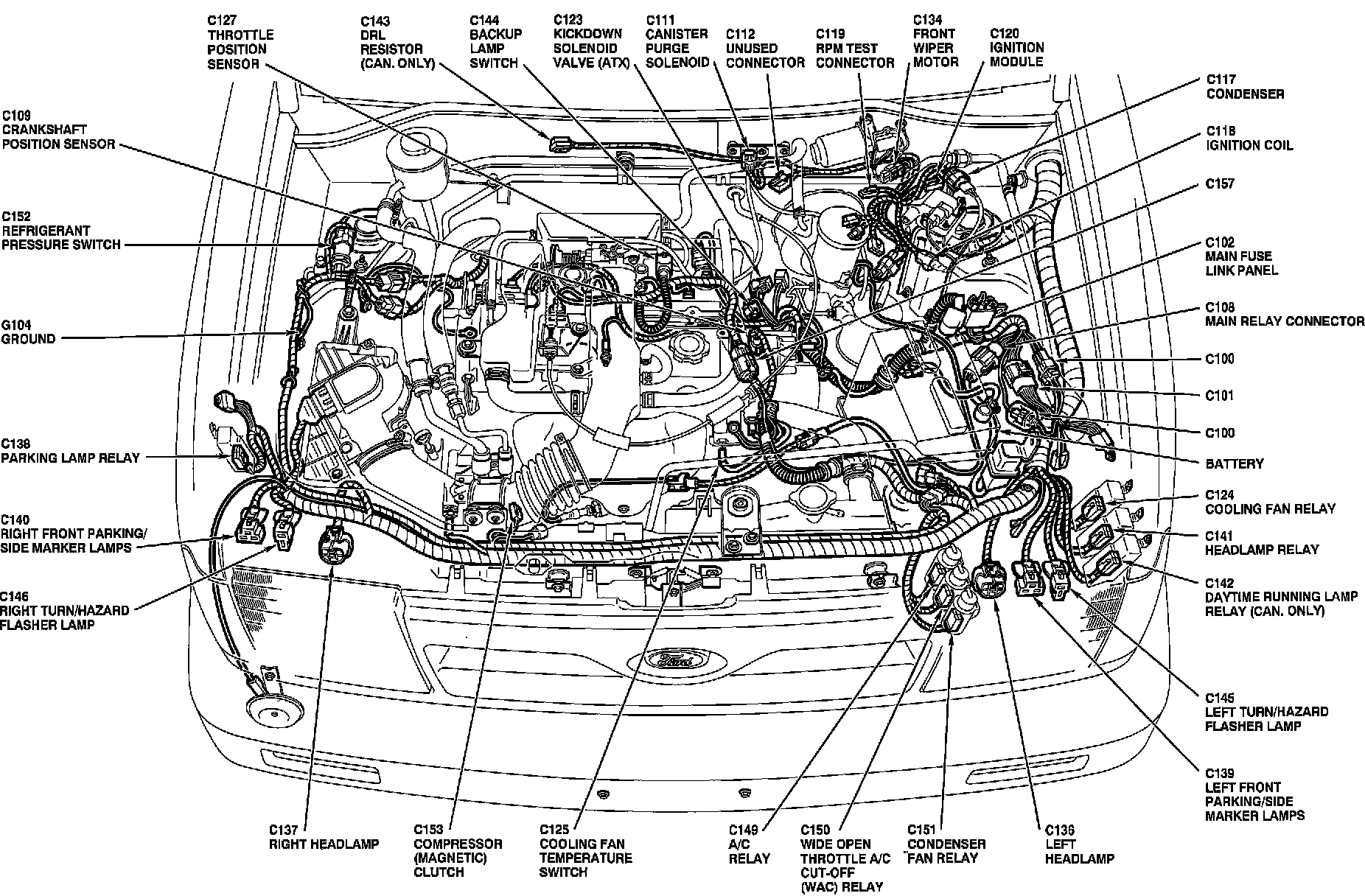

Component Location:

A/C RELAY
BACKUP LAMP SWITCH
BATTERY
CANISTER PURGE SOLENOID
COMPRESSOR (MAGNETIC CLUTCH)
CONDENSER
CONDENSER FAN RELAY
COOLING FAN RELAY
COOLING FAN TEMPERATURE SWITCH
CRANKSHAFT POSITION SENSOR
DAYTIME RUNNING LAMP (DRL) RESISTOR (CAN. ONLY)
DAYTIME RUNNING LAMP RELAY (CAN. ONLY)
FRONT PARK/SIDE MARKER LAMPS
FRONT WIPER MOTOR
GROUND
HEADLAMP
HEADLAMP RELAY
IGNITION COIL
IGNITION MODULE
KICKDOWN SOLENOID VALVE (ATX)
MAIN FUSE LINK PANEL
MAIN RELAY CONNECTOR
PARKING LAMP RELAY
RPM TEST CONNECTOR
REFRIGERANT PRESSURE SWITCH
THROTTLE POSITION SENSOR
TURN/HAZARD FLASHER LAMP
UNUSED CONNECTOR
WIDE OPEN THROTTLE (WOT) A/C CUT-OFF RELAY

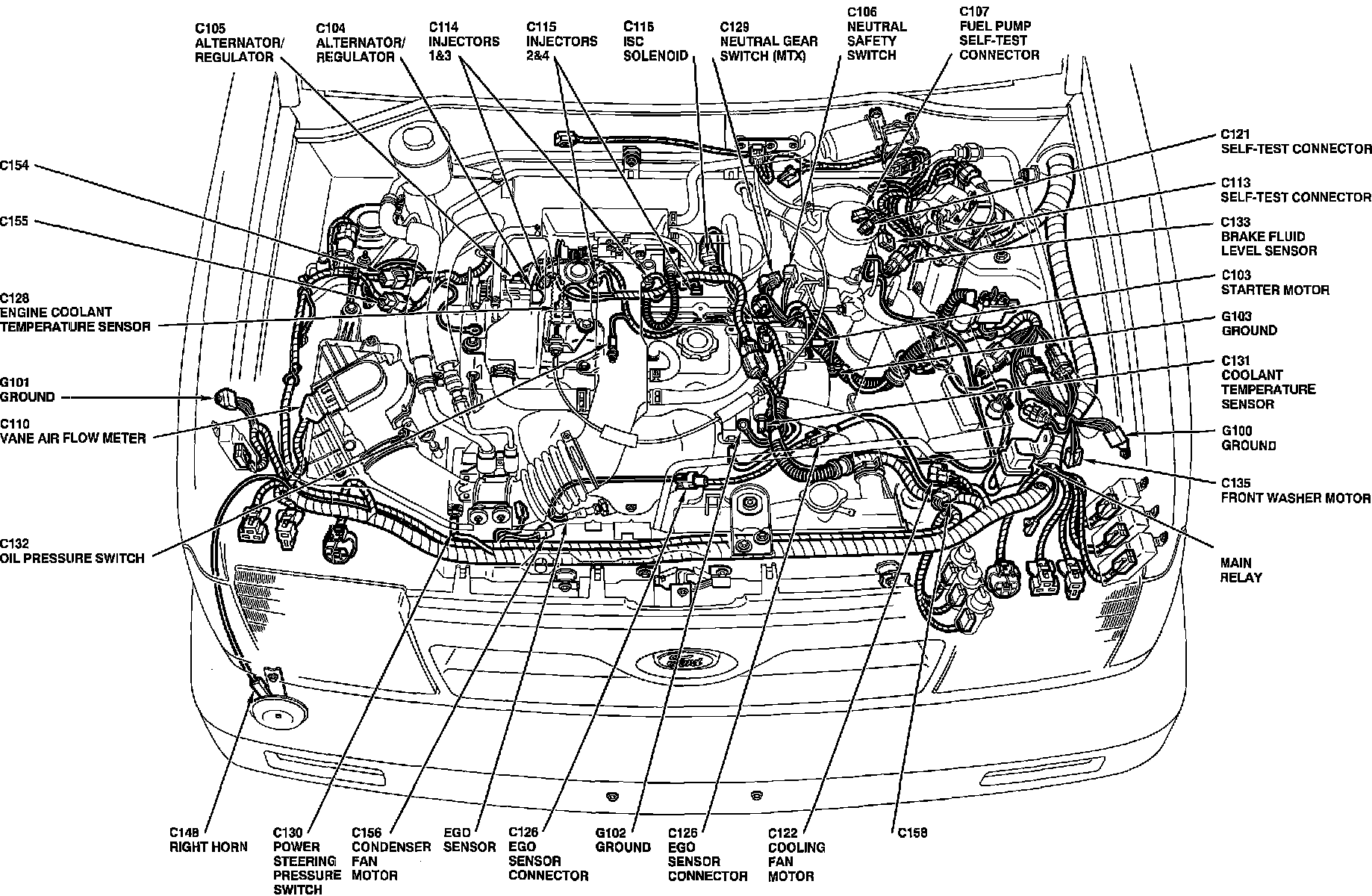

Component Location:

ALTERNATOR REGULATOR
BRAKE FLUID LEVEL SENSOR
COOLANT TEMPERATURE SENSOR
COOLING FAN MOTOR
CONDENSER FAN MOTOR
EGO SENSOR
EGO SENSOR CONNECTOR
ENGINE COOLANT TEMPERATURE SENSOR
FRONT WASHER MOTOR
FUEL PUMP SELF TEST CONNECTOR
GROUND
INJECTORS
ISC SOLENOID
MAIN RELAY
NEUTRAL GEAR SWITCH (MTX)
NEUTRAL SAFETY SWITCH
OIL PRESSURE SWITCH
POWER STEERING PRESSURE SWITCH
SELF TEST CONNECTOR
STARTER MOTOR
VANE AIR FLOW METER
