Multifunction Switch Test

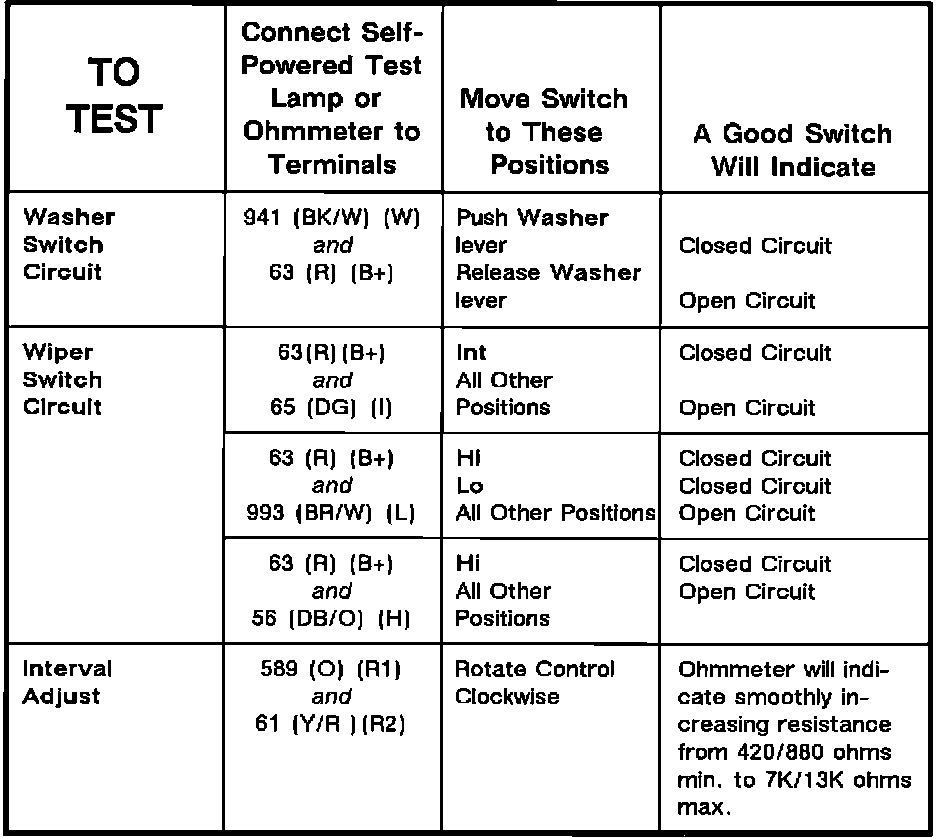

COMPONENT TESTING PROCEDURE


Component Testing Procedure - Wiper Washer Circuits:

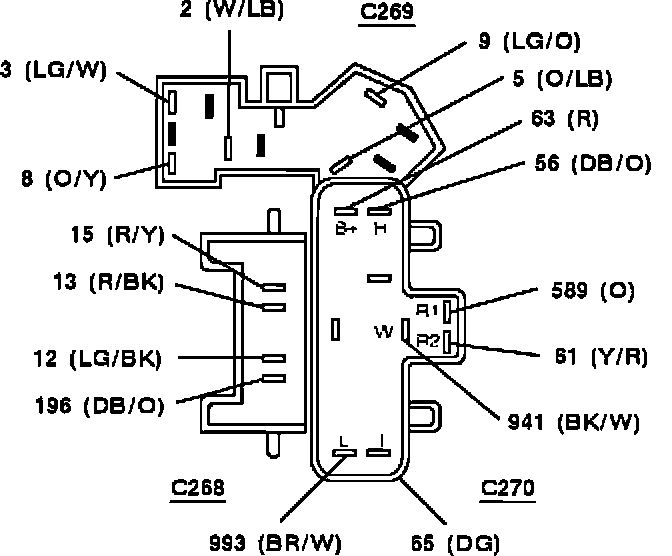

TERMINAL IDENTIFICATION


Terminal Locations:

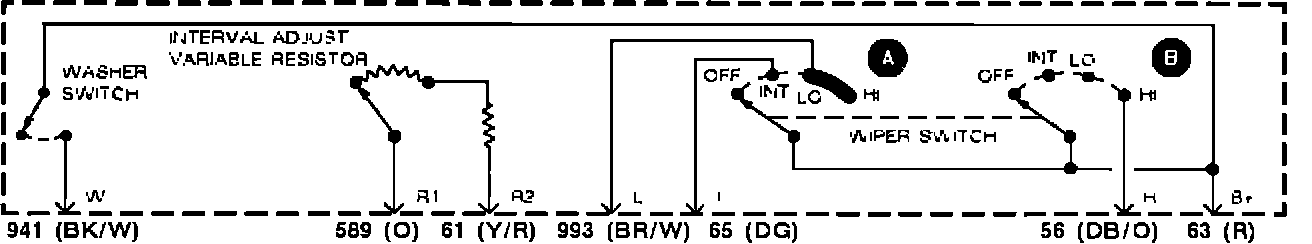

SCHEMATIC


Schematic:
