Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1992
>>
Mustang V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Master Window Control Switch
>>
Convertible
Convertible

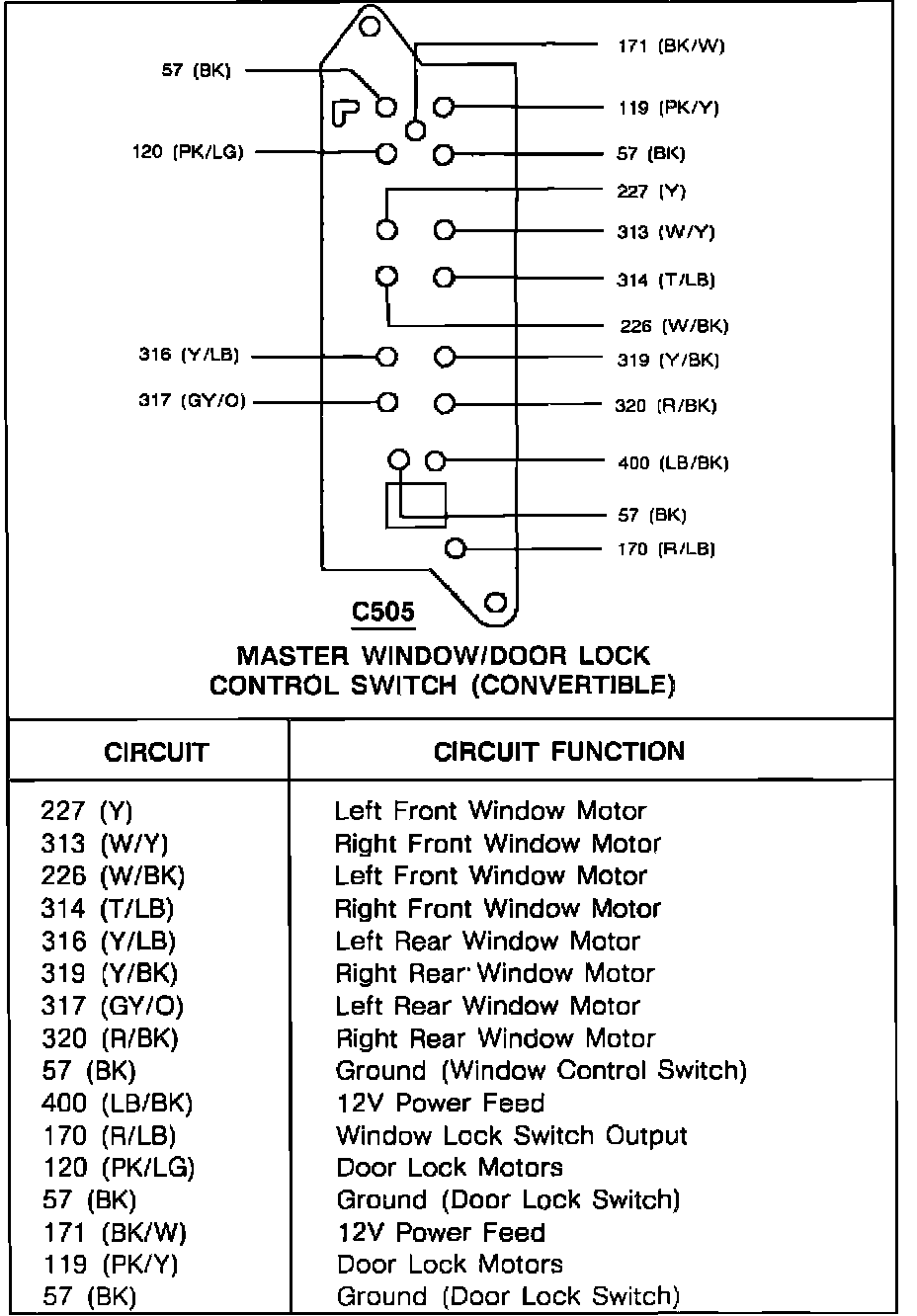

Maser Window/Door Lock Control Switch (Convertible):
