Probe L4-133 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
Control Module HVAC

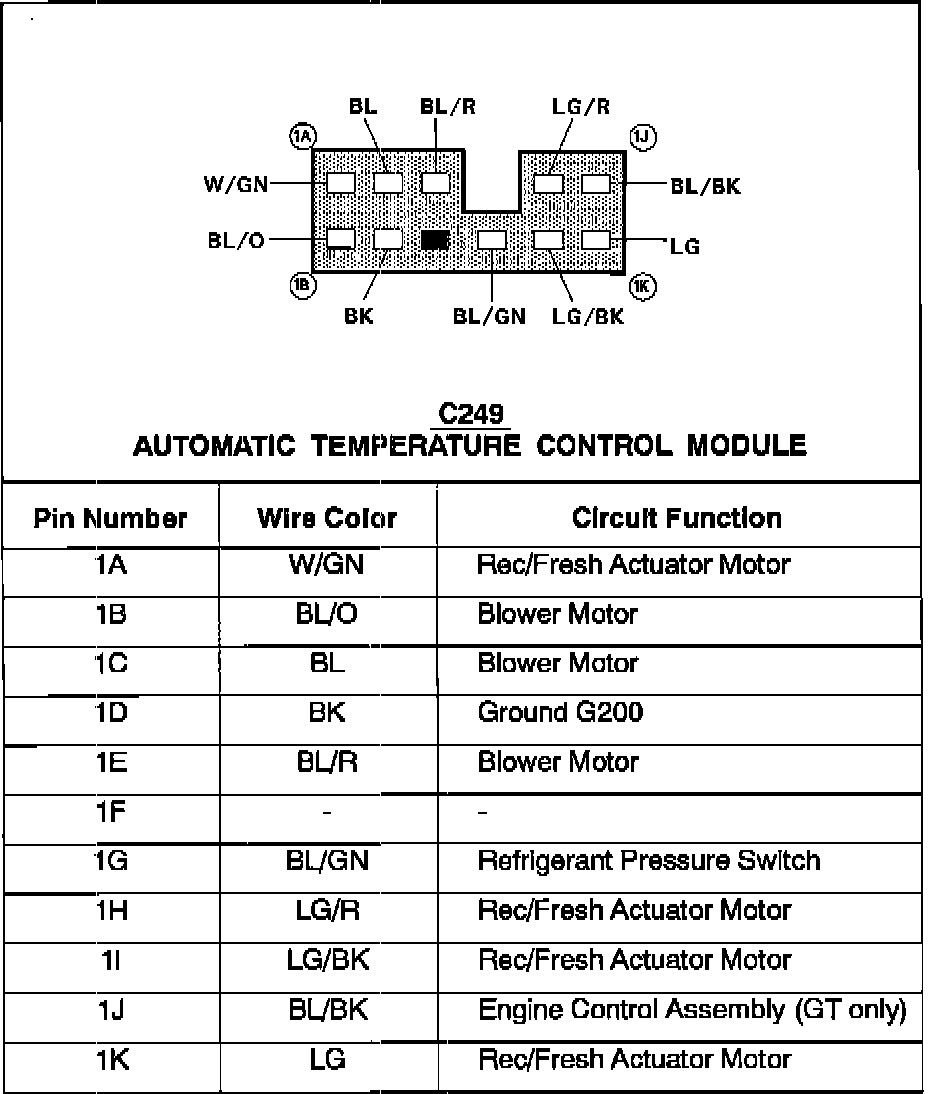

Automatic Temperature Control Module:

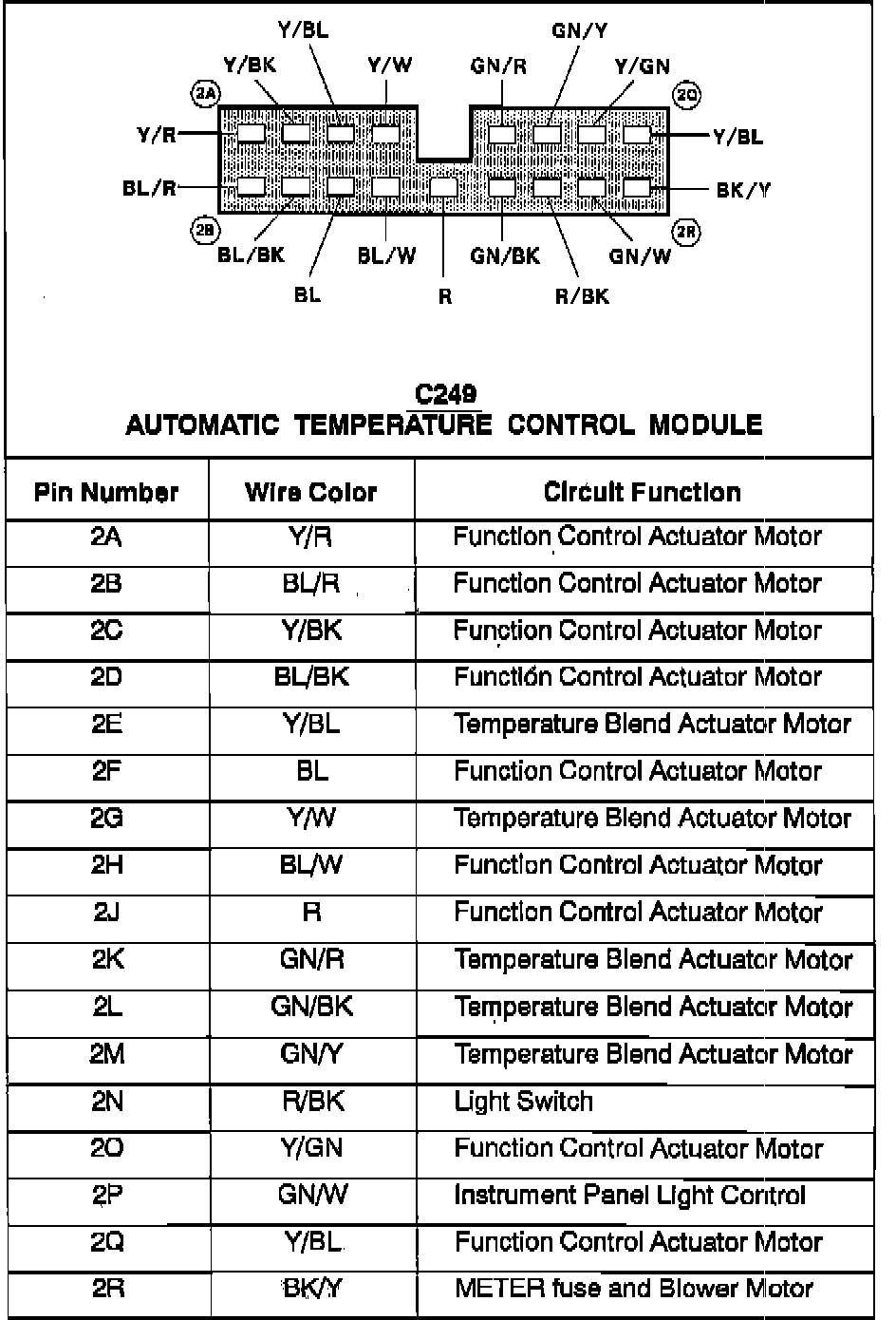

Automatic Temperature Control Module:
