Full Body Views

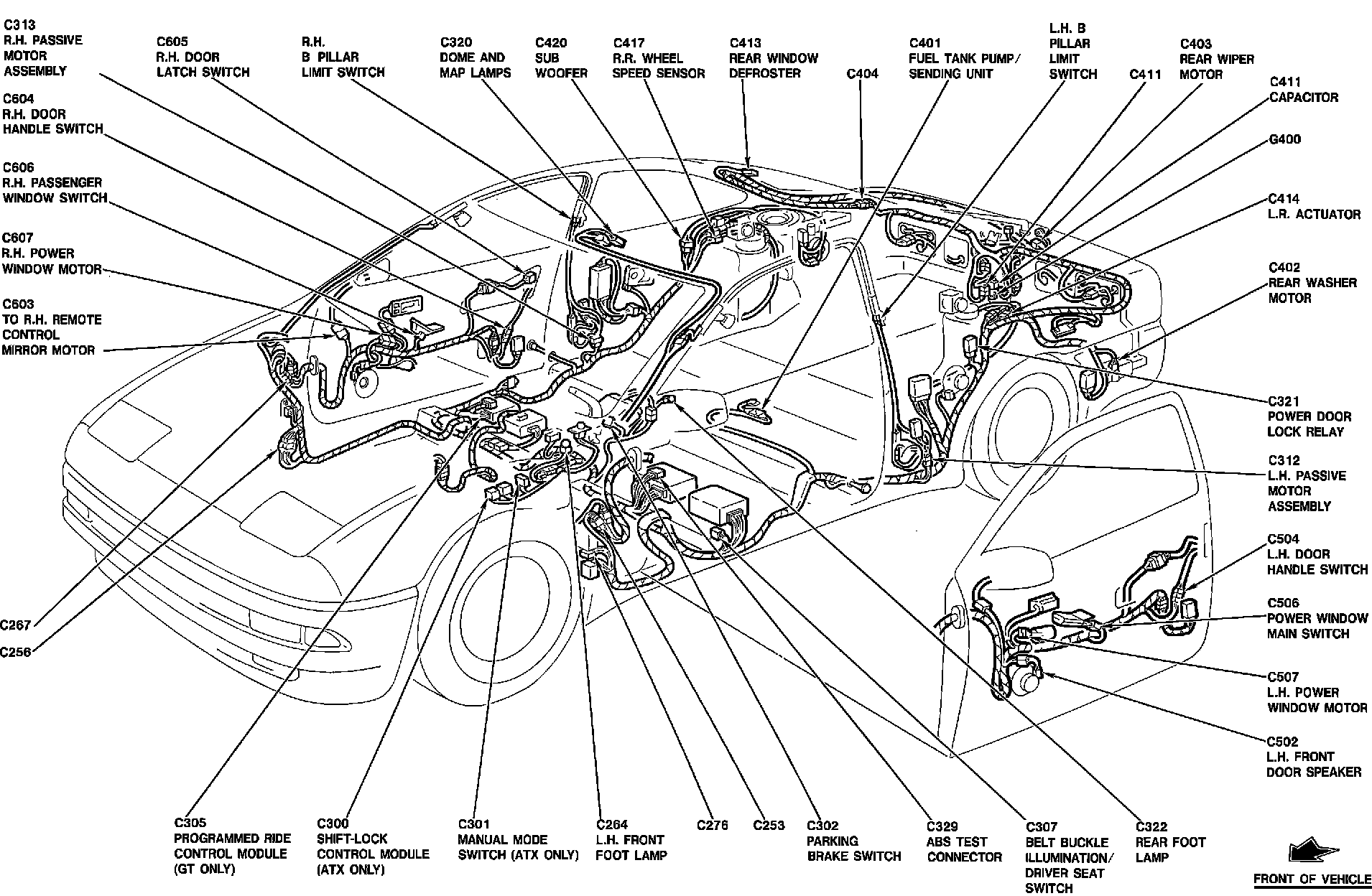

Component Location:

B PILLAR LIMIT SWITCH
BELT BUCKLE ILLUMINATION/DRIVER SEAT SWITCH
CAPACITOR
DOME AND MAP LAMPS
DOOR HANDLE SWITCH
DOOR LATCH SWITCH
DOOR SPEAKER
FOOT LAMP
FUEL TANK PUMP/SENDING UNIT
MANUAL MODE SWITCH
PASSIVE MOTOR ASSEMBLY
PASSENGER WINDOW SWITCH
POWER DOOR LOCK RELAY
POWER WINDOW MAIN SWITCH
POWER WINDOW MOTOR
PROGRAMMED RIDE CONTROL MODULE
REAR WINDOW DEFROSTER
REMOTE CONTROL MIRROR MOTOR
SHIFT LOCK CONTROL MODULE
SUB WOOFER
WASHER MOTOR
WHEEL SPEED SENSOR
WIPER MOTOR

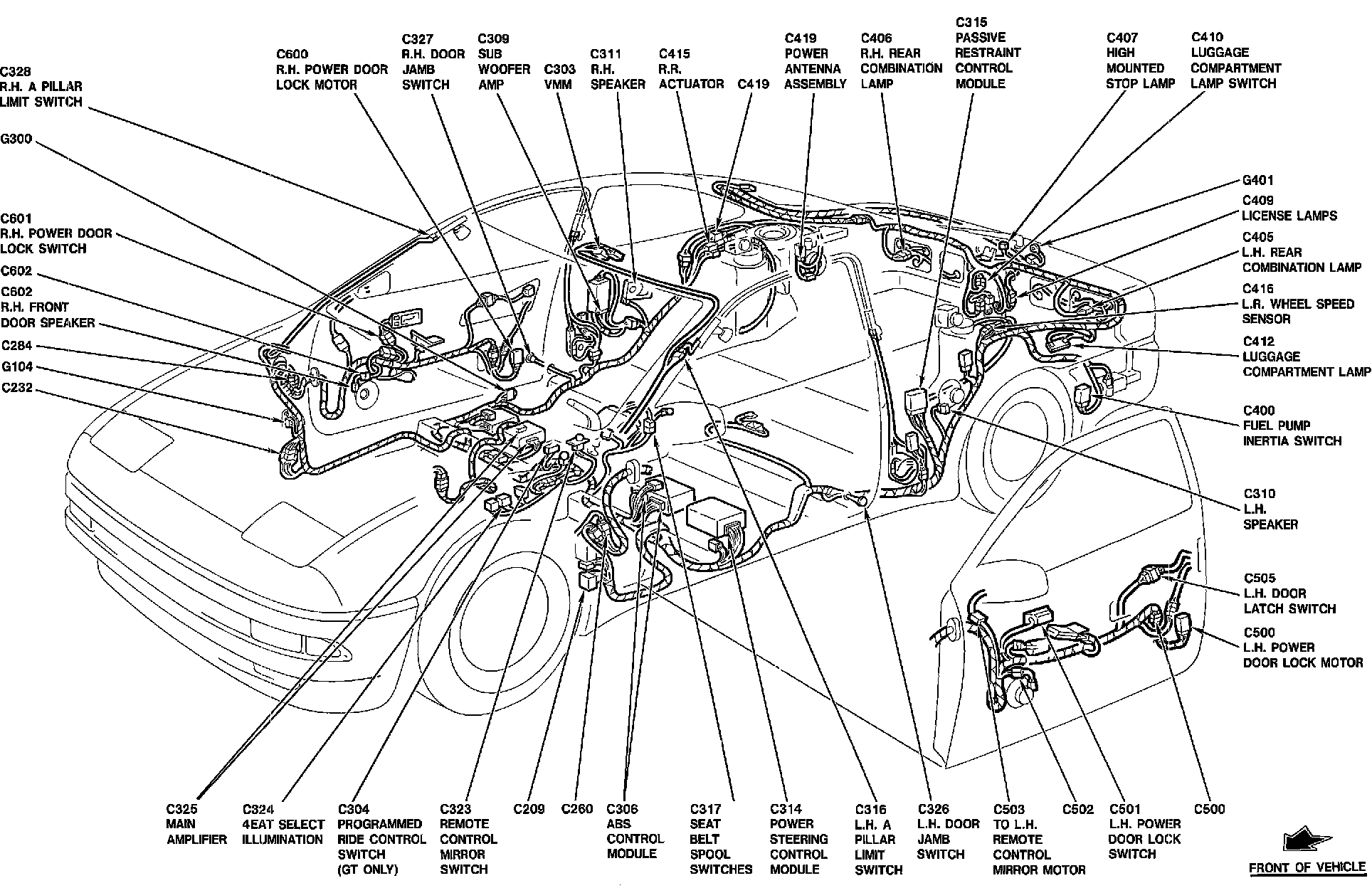

Component Location:

A PILLAR LIMIT SWITCH
ABS CONTROL MODULE
ACTUATOR
COMBINATION LAMP
DOOR JAMB SWITCH
DOOR LATCH SWITCH
DOOR LOCK SWITCH
DOOR SPEAKER
FUEL PUMP INERTIA SWITCH
HIGH MOUNTED STOP LAMP
LICENSE LAMPS
LUGGAGE COMPARTMENT LAMP SWITCH
MAIN AMPLIFIER
PASSIVE RESTRAINT CONTROL MODULE
POWER ANTENNA ASSEMBLY
POWER DOOR LOCK MOTOR
POWER DOOR LOCK SWITCH
POWER STEERING CONTROL MODULE
PROGRAMMED RIDE CONTROL SWITCH
REMOTE CONTROL MIRROR MOTOR
REMOTE CONTROL MIRROR SWITCH
SEAT BELT SPOOL SWITCHES
SPEAKER
SUB WOOFER AMP
VEHICLE MAINTENANCE MONITOR (VMM)
WHEEL SPEED SENSOR
4EAT SELECT ILLUMINATION
