Ignition Control Module

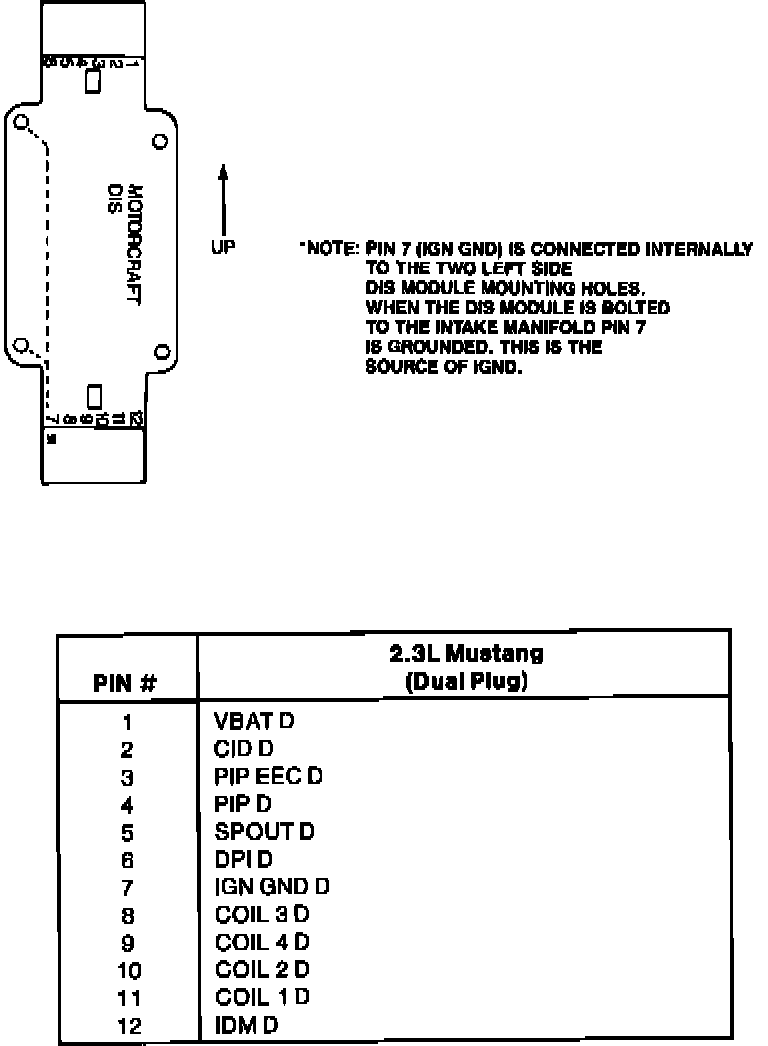

Dis Module And Pinout:

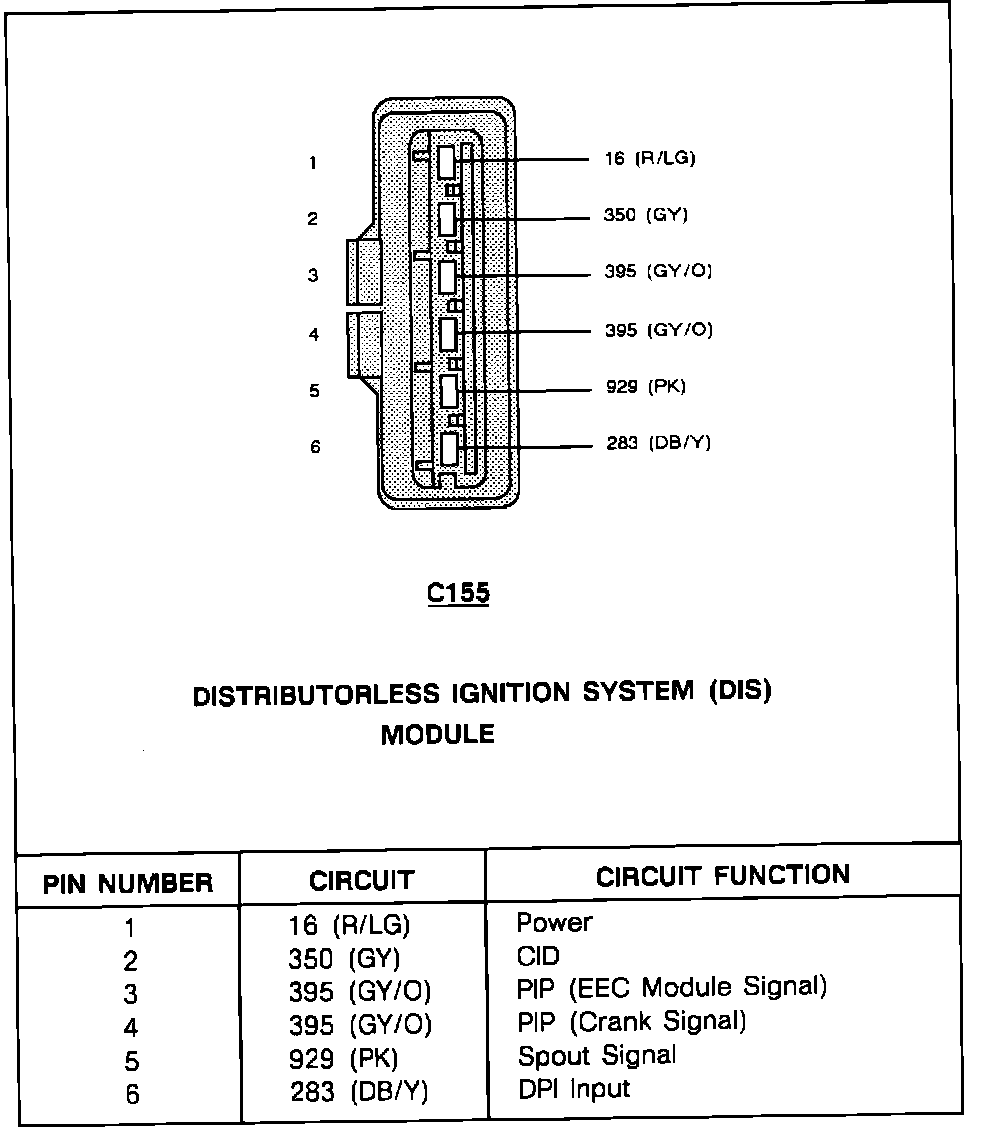

Electronic Distributerless Ignition Module Connector Pinout:

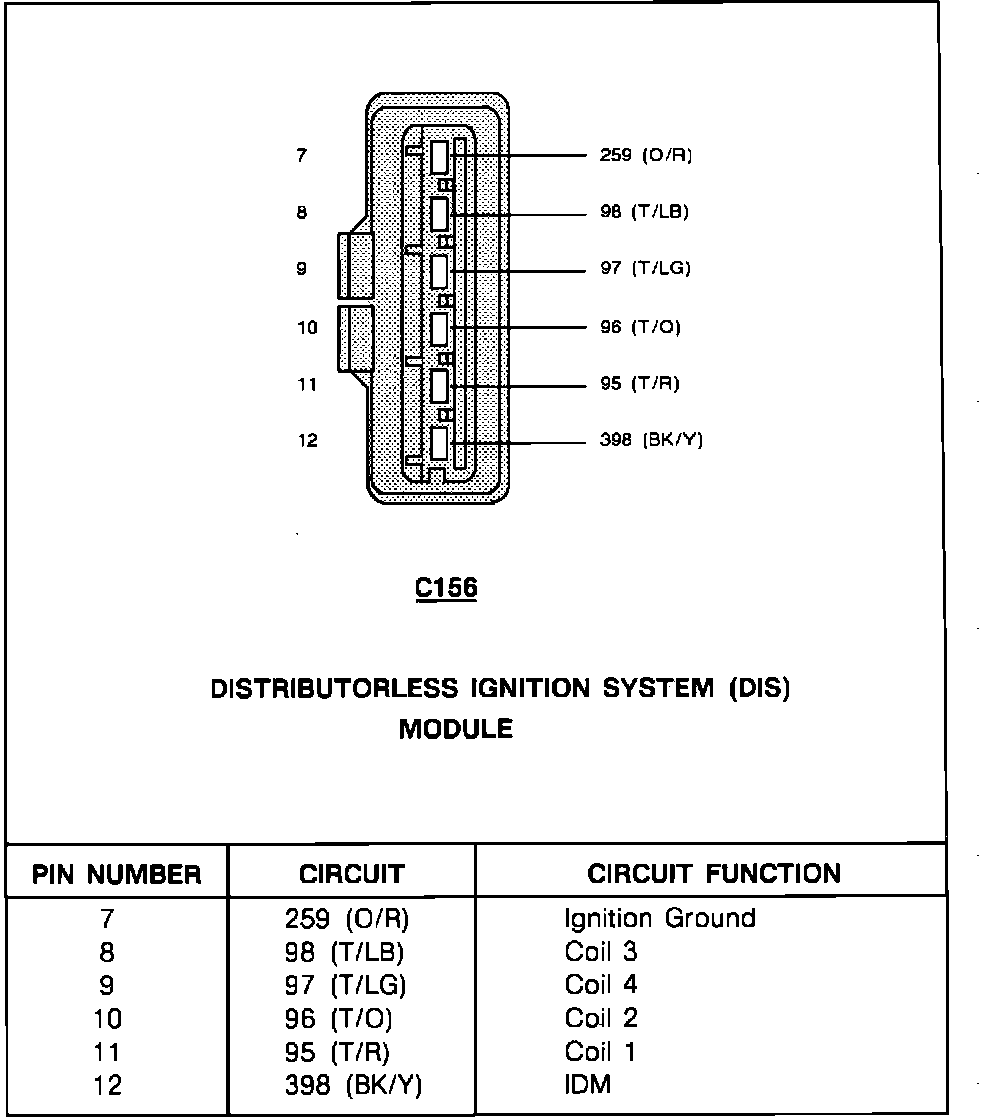

Electronic Distributerless Ignition Module Connector Pinout:
