Engine Views

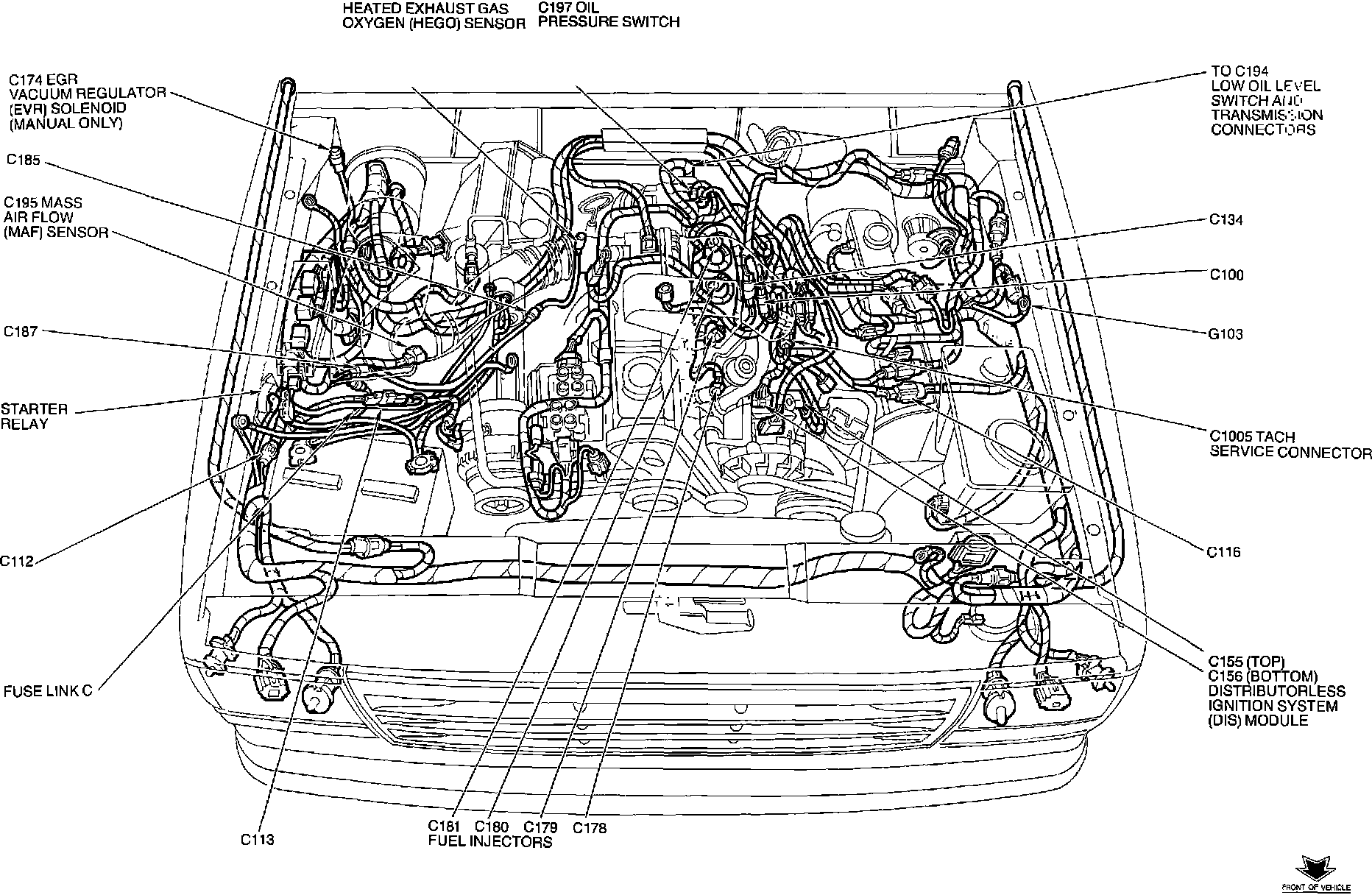

Component Location:

DISTRIBUTORLESS IGNITION SYSTEM (DIS) MODULE
FUEL INJECTOR
FUSE LINK C
HEATED EXHAUST GAS OXYGEN (HEGO) SENSOR
LOW OIL LEVEL SWITCH
OIL PRESSURE SWITCH
MASS AIR FLOW (MAF) SENSOR
STARTER RELAY
TACH SERVICE CONNECTOR
TRANSMISSION CONNECTORS
VACUUM REGULATOR (EVR) SOLENOID

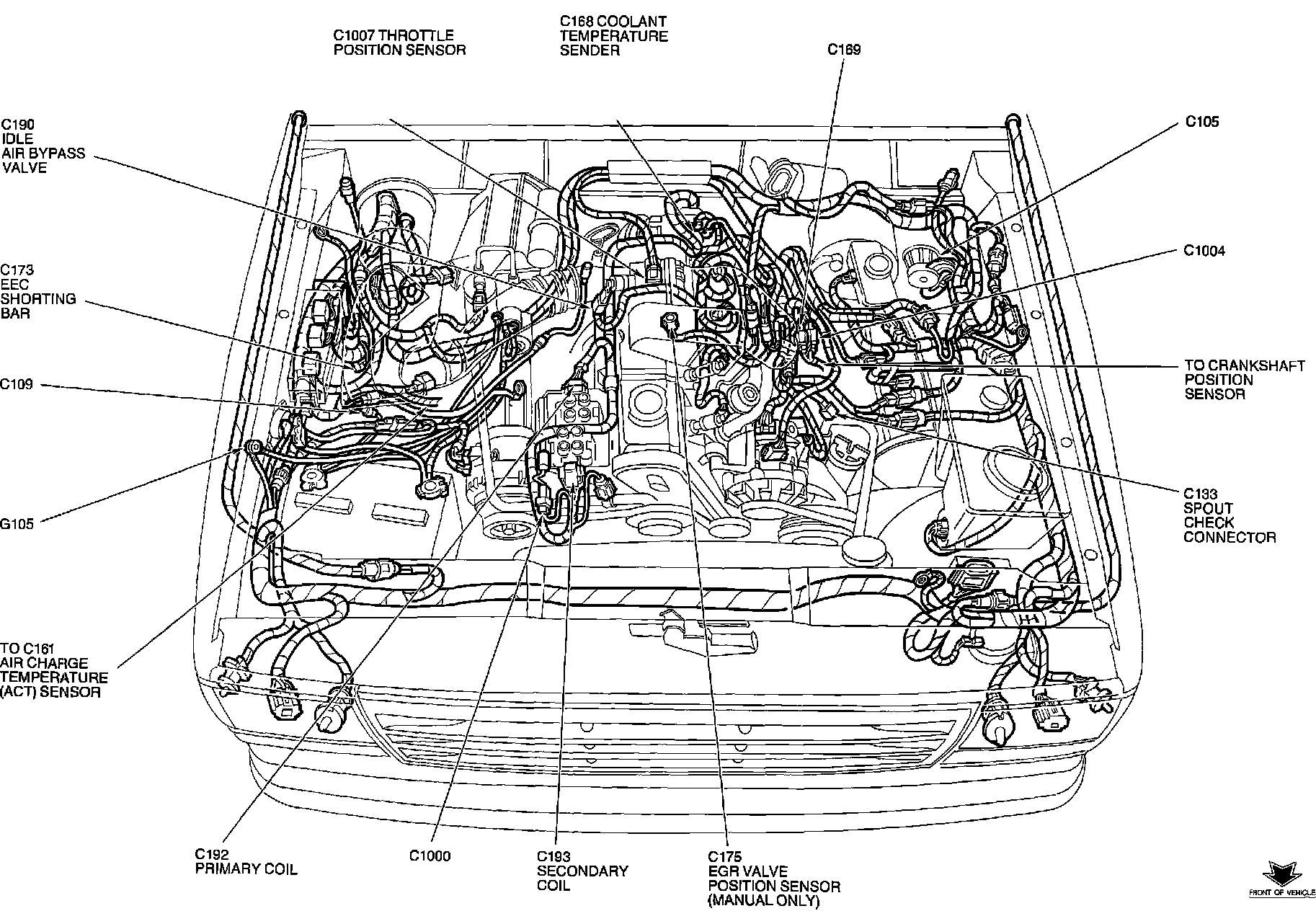

Component Location:

AIR CHARGE TEMPERATURE (ACT) SENSOR
COOLANT TEMPERATURE SENDER
CRANKSHAFT POSITION SENSOR
EEC SHORTING BAR
EGR VALVE POSITION SENSOR
IDLE AIR BYPASS VALVE PRIMARY COIL
SECONDARY COIL
SPOUT CHECK CONNECTOR
THROTTLE POSITION SENSOR

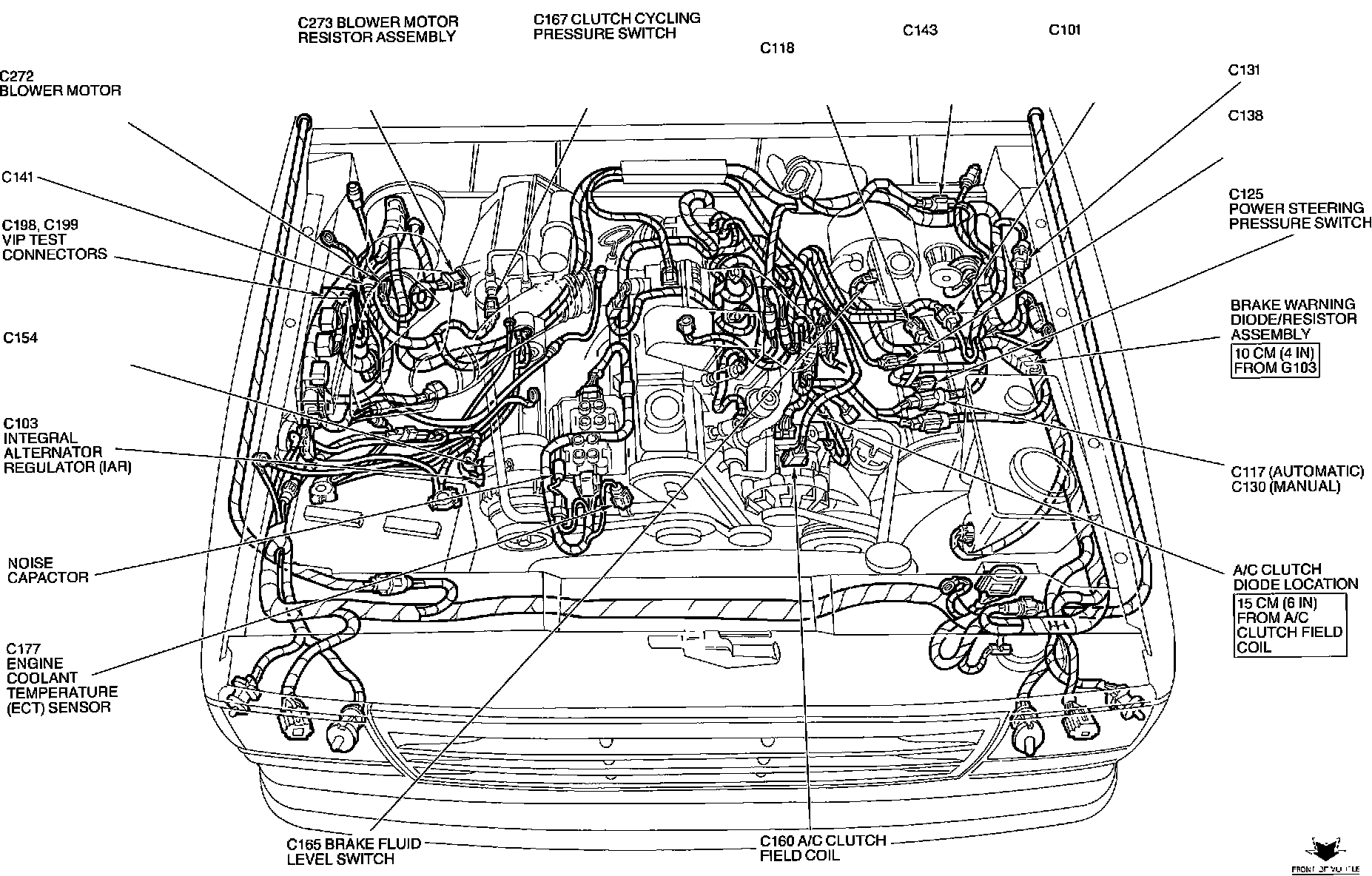

Component Location:

A/C CLUTCH DIODE LOCATION
A/C CLUTCH FIELD COIL
BLOWER MOTOR
BLOWER MOTOR RESISTOR ASSEMBLY
BRAKE FLUID LEVEL SWITCH
BRAKE WARNING DIODE/RESISTOR ASSEMBLY
CLUTCH CYCLING PRESSURE SWITCH
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
INTEGRAL ALTERNATOR REGULATOR (IAR)
POWER STEERING PRESSURE SWITCH
NOISE CAPACITOR
VIP TEST CONNECTORS

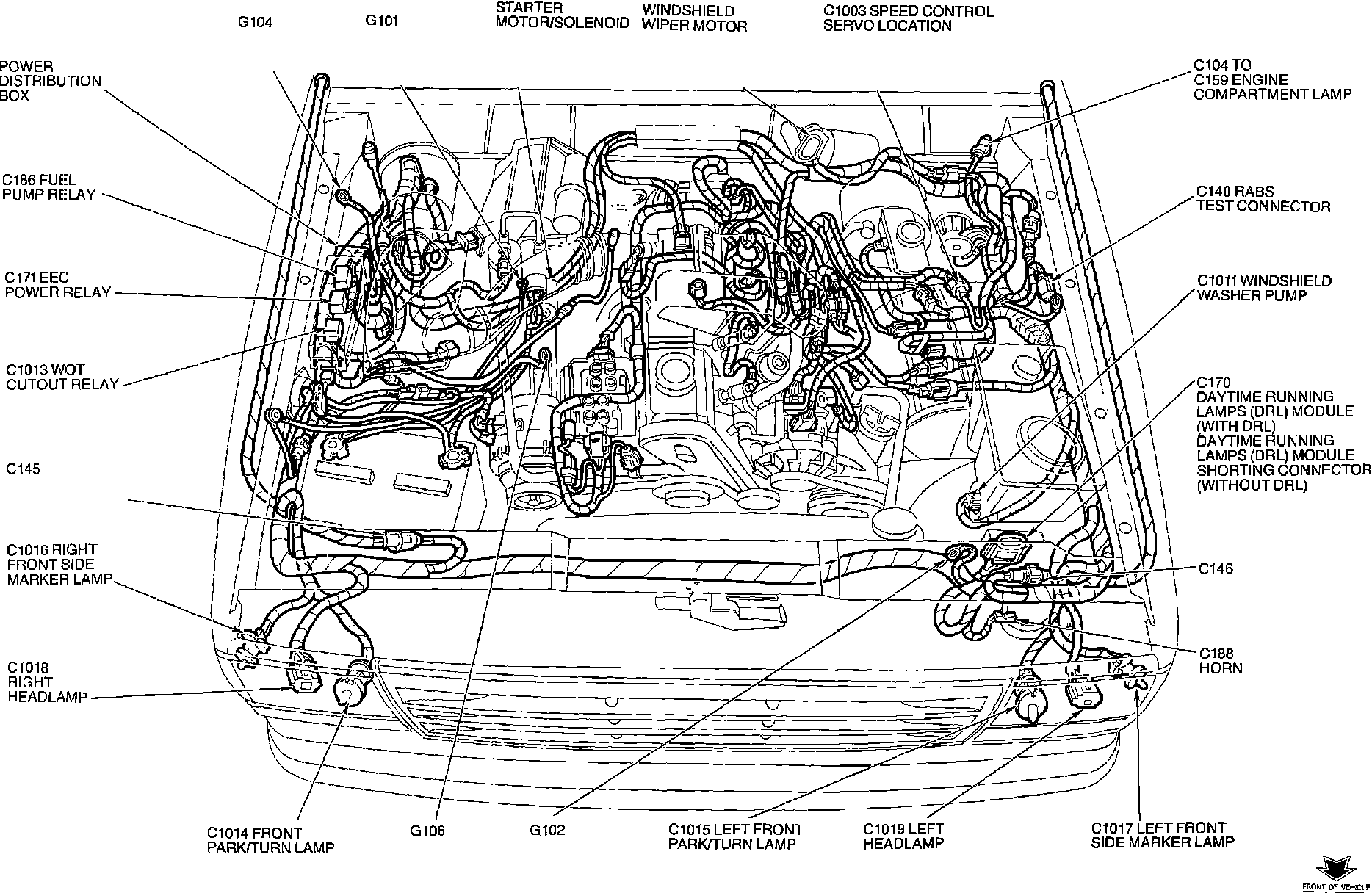

Component Location:

CUTOUT RELAY
DAYTIME RUNNING LAMP (DRL) MODULE
ENGINE COMPARTMENT LAMP
FRONT PARK/TURN LAMP
FRONT SIDE MARKER LAMP
FUEL PUMP RELAY
HEADLAMP
HORN
POWER DISTRIBUTION BOX
REAR ANTI-LOCK BRAKE SYSTEM TEST CONNECTOR
SHORTING CONNECTOR
SPEED CONTROL SERVO LOCATION
STARTER MOTOR/SOLENOID
WINDSHIELD WIPER MOTOR
WINDSHIELD WASHER PUMP
