Control Assembly, HVAC
Control Assembly, HVAC

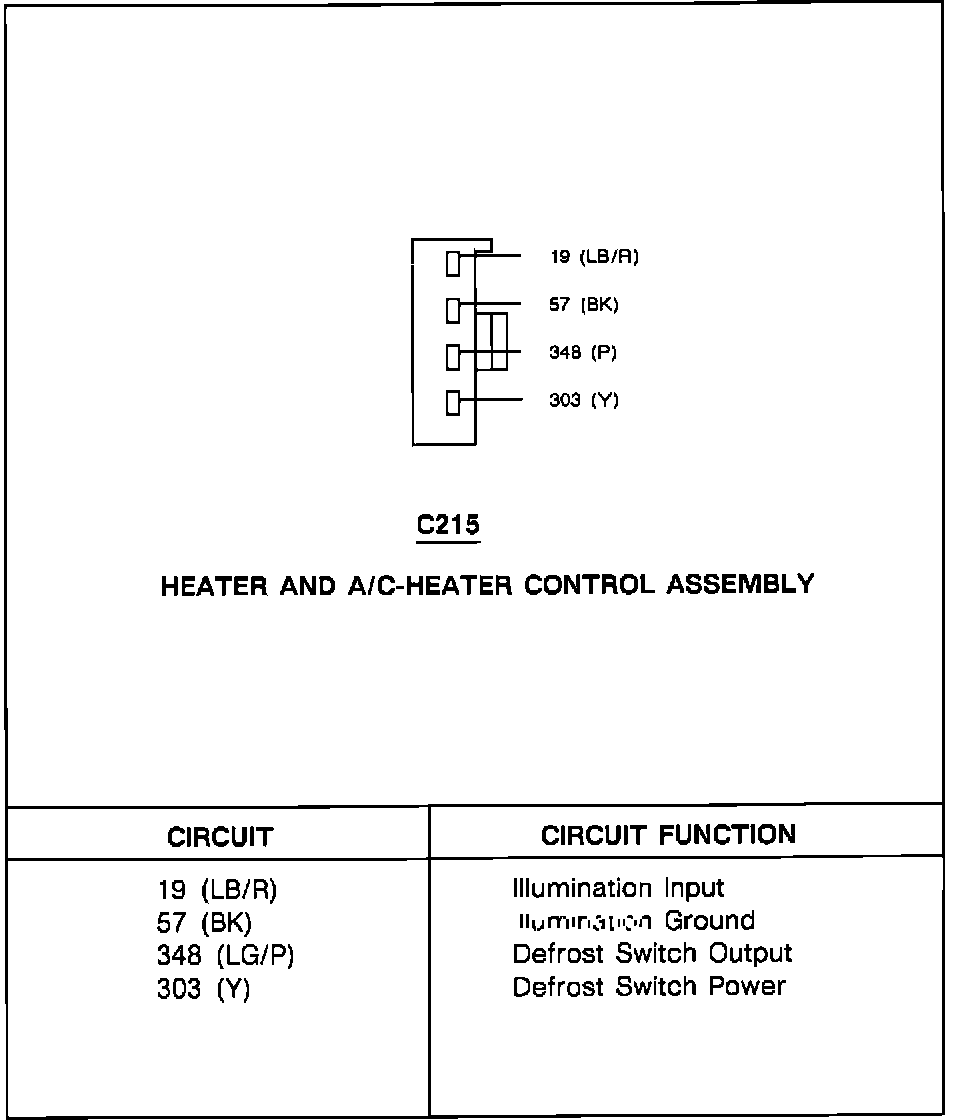

Connector Faces/Pinout Charts:

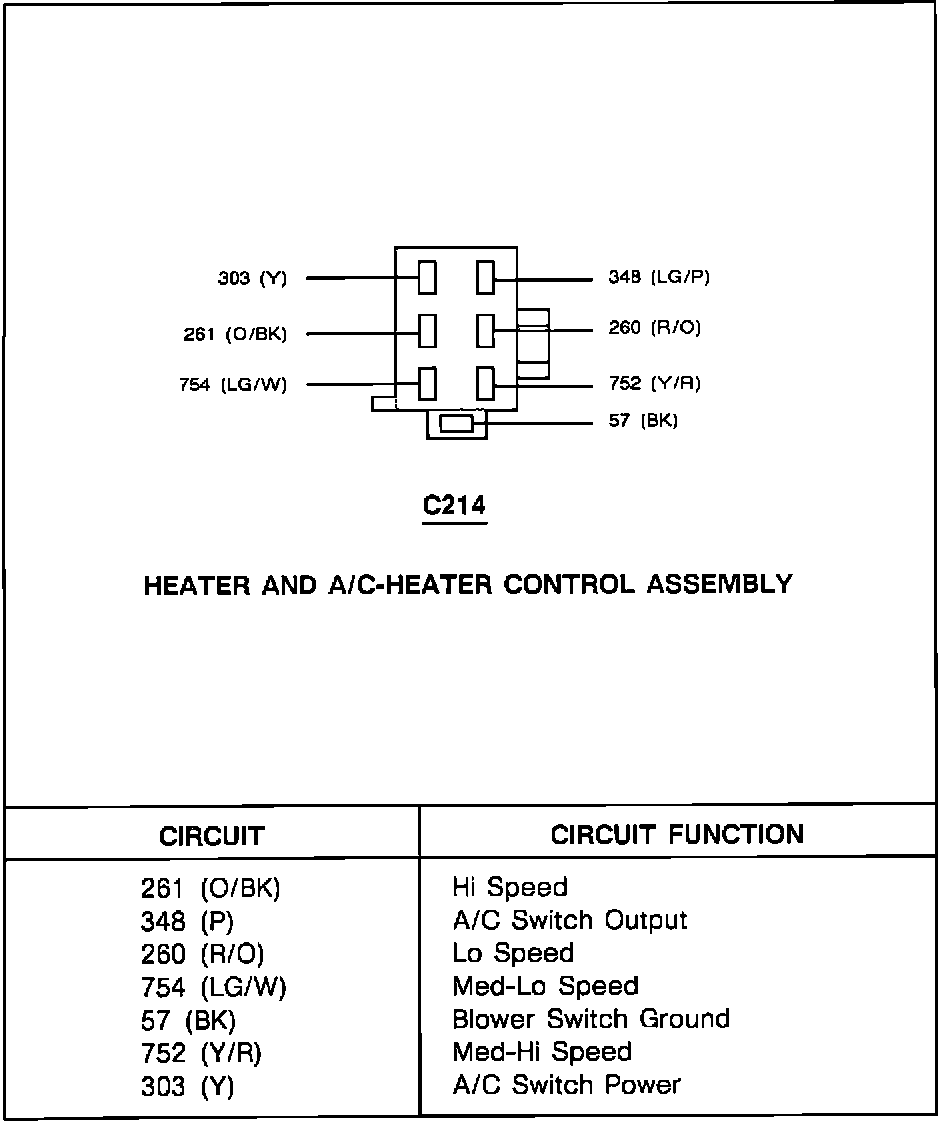

Connector Faces/Pinout Charts:
