Shift Control
Shift Control

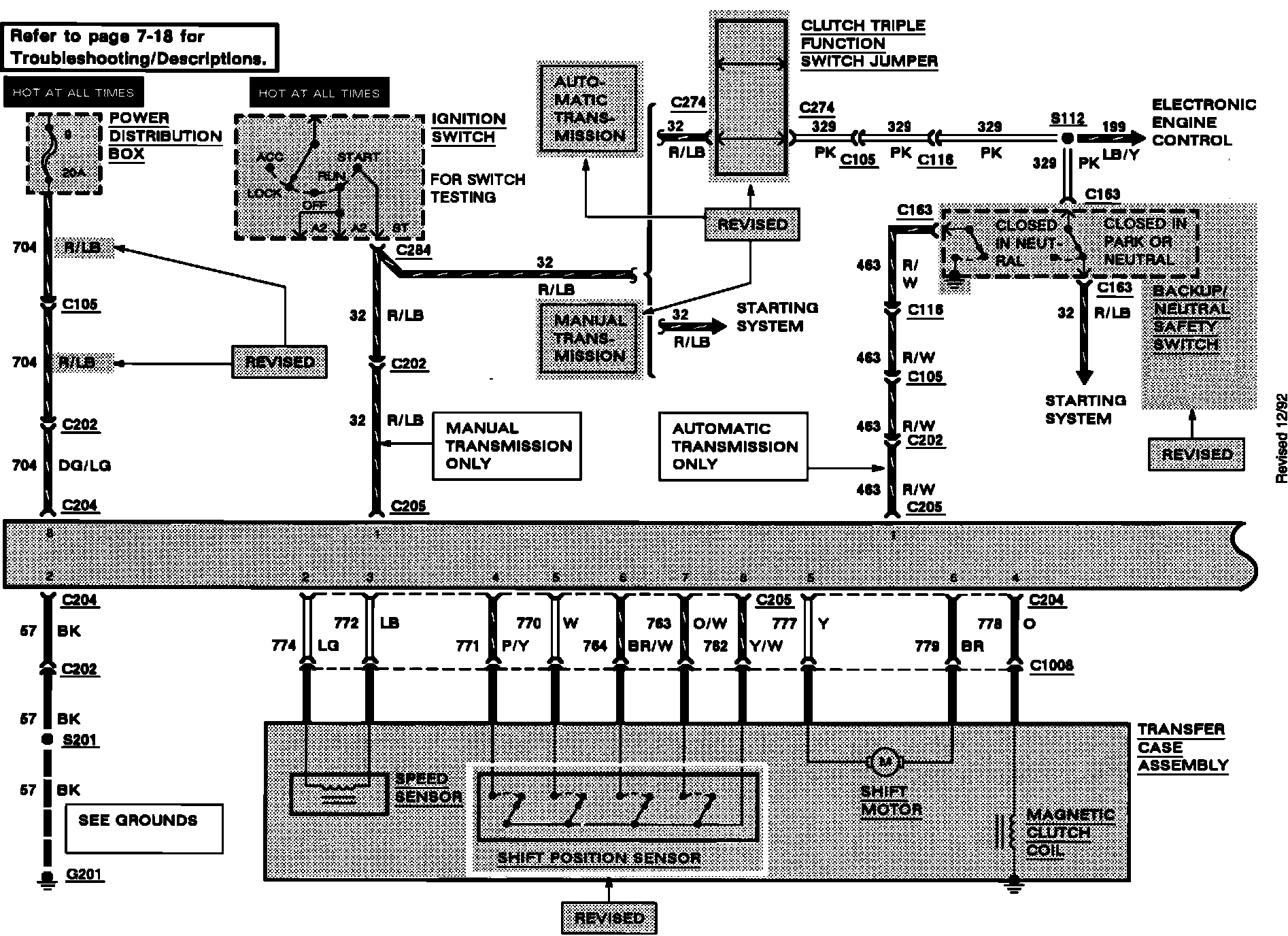

*** UPDATED BY TSB # 9224B59, DATED 12/10/92
Electric Shift Control:
*** UPDATED BY TSB # 9224B60, DATED 12/10/92
Electric Shift Control:
