Specifications
>>
Pressure, Vacuum and Temperature Specifications
Pressure, Vacuum and Temperature Specifications

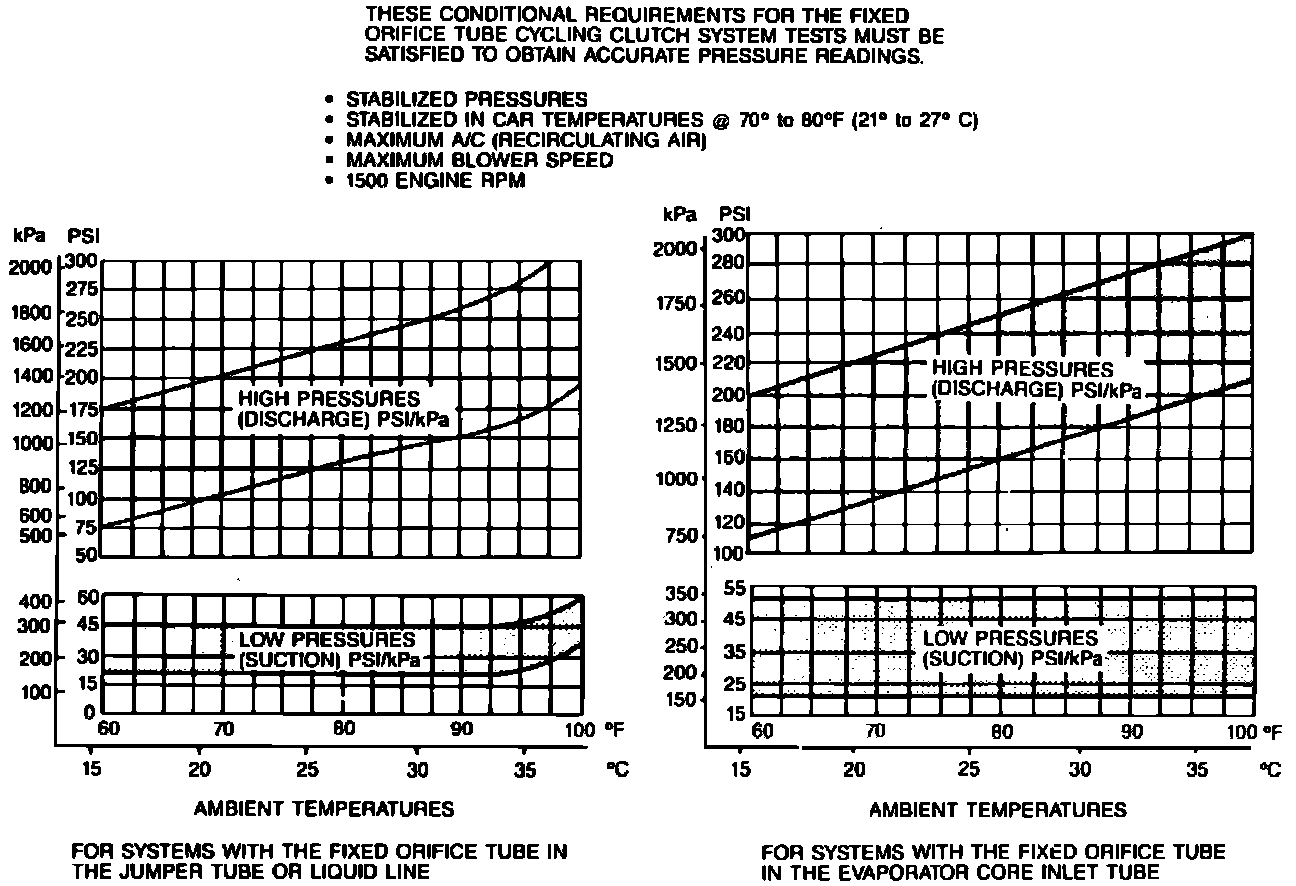

Refrigeration system pressure & temperature charts:
Refrigeration system pressure & temperature charts:
