A4: Check System Operation
A4: Check System Operation

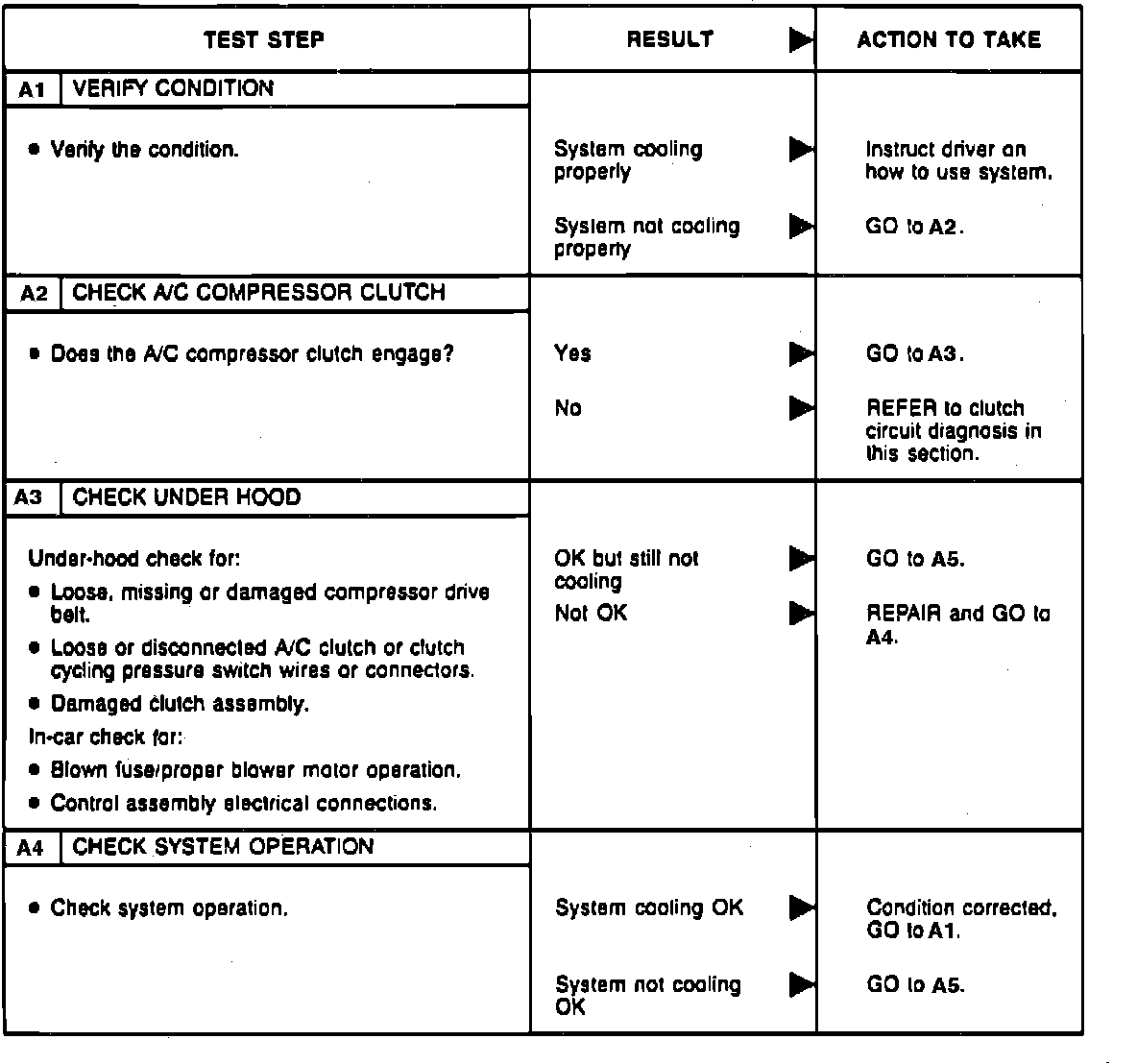

Fig. 16 Insufficient A/C cooling diagnosis (Test A1, A2, A3 & A4). Light trucks:
