Engine Views

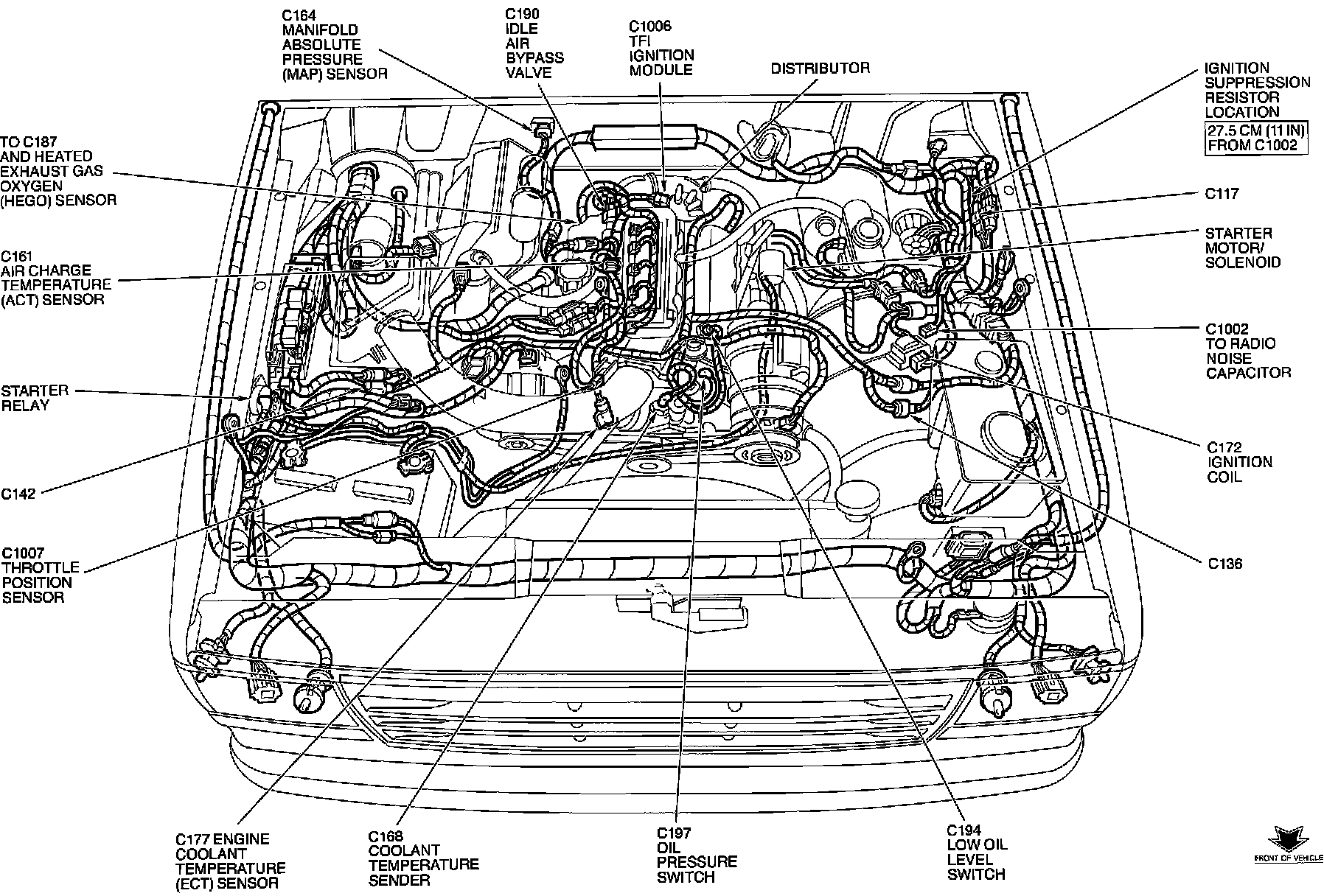

Component Location:

AIR CHARGE TEMPERATURE (ACT) SENSOR
COOLANT TEMPERATURE SENDER
DISTRIBUTOR
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
HEATED EXHAUST GAS OXYGEN (HEGO) SENSOR
IDLE AIR BYPASS VALVE
IGNITION COIL
IGNITION SUPPRESSION RESISTOR LOCATION
LOW OIL LEVEL SWITCH
MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
OIL PRESSURE SWITCH
STARTER/MOTOR SOLENOID
STARTER RELAY
TFI IGNITION MODULE
THROTTLE POSITION SENSOR

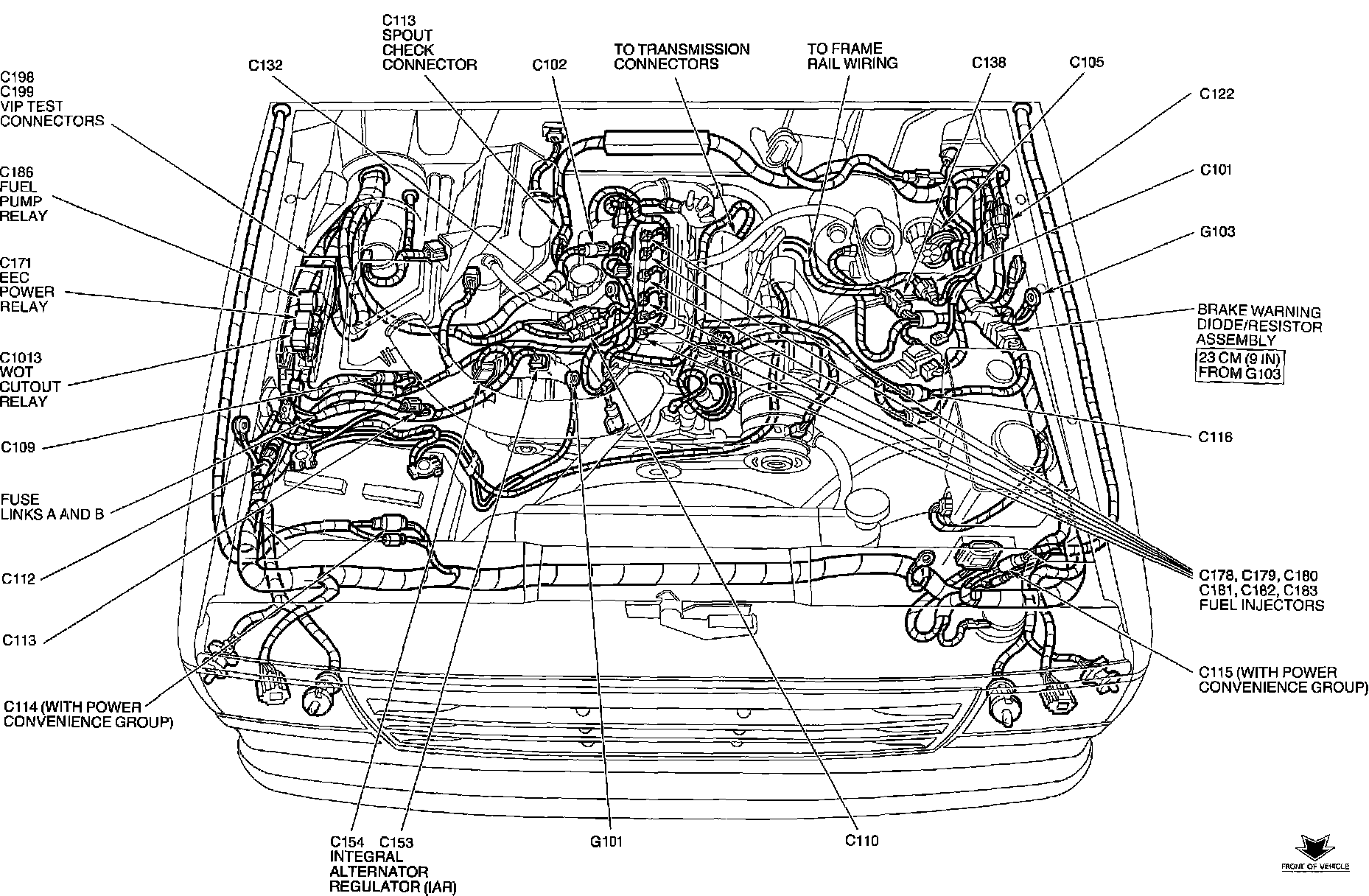

Component Location:

BRAKE WARNING DIODE/RESISTOR ASSEMBLY
ELECTRONIC ENGINE CONTROL (EEC) POWER RELAY
FRAME RAIL WIRING
FUEL PUMP RELAY
FUEL INJECTORS
FUSE LINKS A AND B
INTEGRAL ALTERNATOR REGULATOR (IAR)
SPOUT CHECK CONNECTOR
TRANSMISSION CONNECTORS
VIP TEST CONNECTORS
WOT CUTOUT RELAY

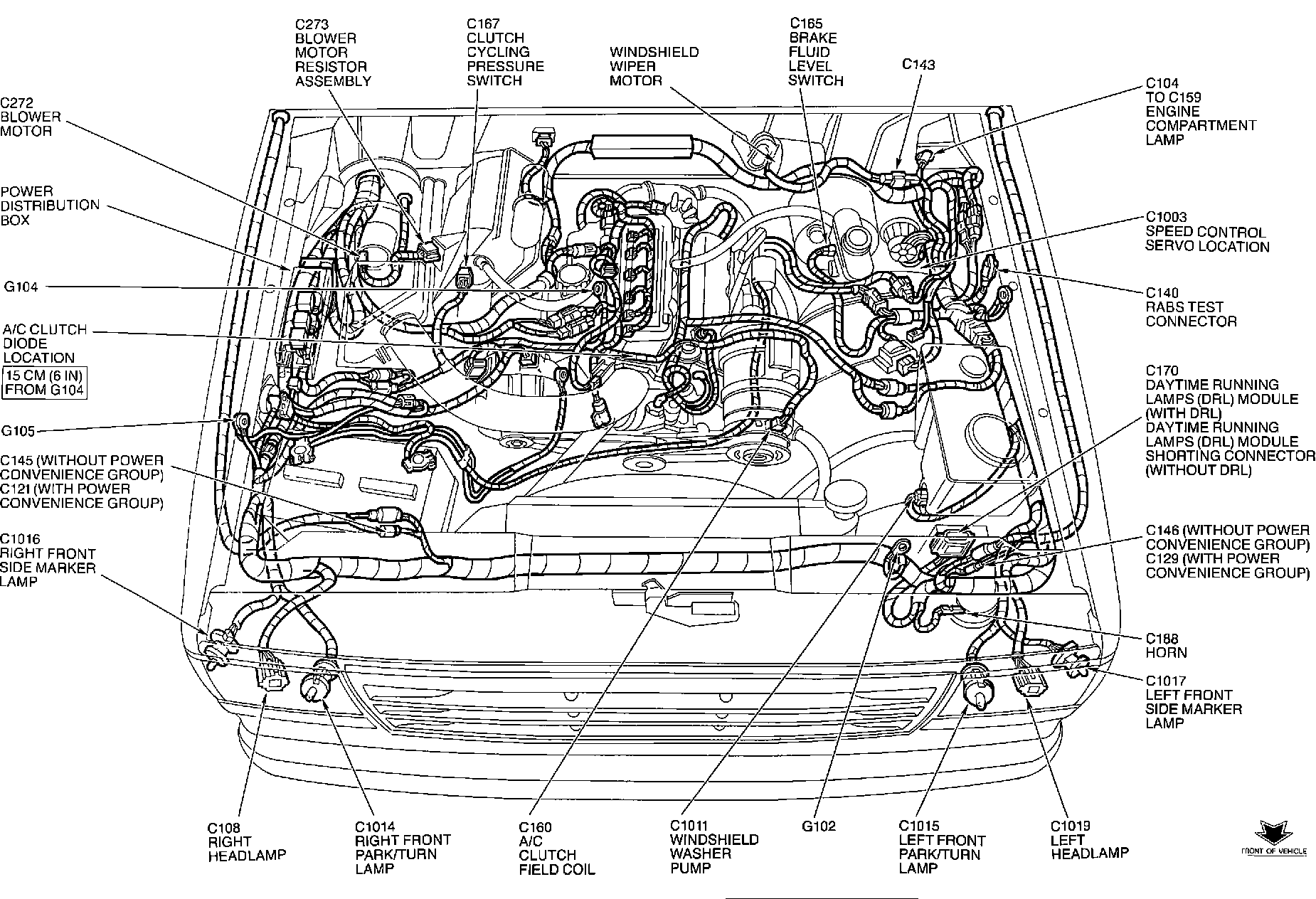

Component Location:

A/C CLUTCH DIODE LOCATION
A/C CLUTCH FIELD COIL
BLOWER MOTOR
BLOWER MOTOR RESISTOR ASSEMBLY
BRAKE FLUID LEVEL SWITCH
CLUTCH CYCLING PRESSURE SWITCH
DAYTIME RUNNING LAMPS
ENGINE COMPARTMENT LAMP
FRONT PARK/TURN LAMP
FRONT SIDE MARKER LAMP
HEADLAMP
HORN
POWER DISTRIBUTION BOX
REAR ANTI-LOCK BRAKE SYSTEM TEST CONNECTOR
SPEED CONTROL SERVO LOCATION
WINDSHIELD WIPER MOTOR
WINDSHIELD WASHER PUMP
