DB - EGR Temperature Sensor
>>
DB91 - Check Processor and Harness Connectors
DB91 - Check Processor and Harness Connectors

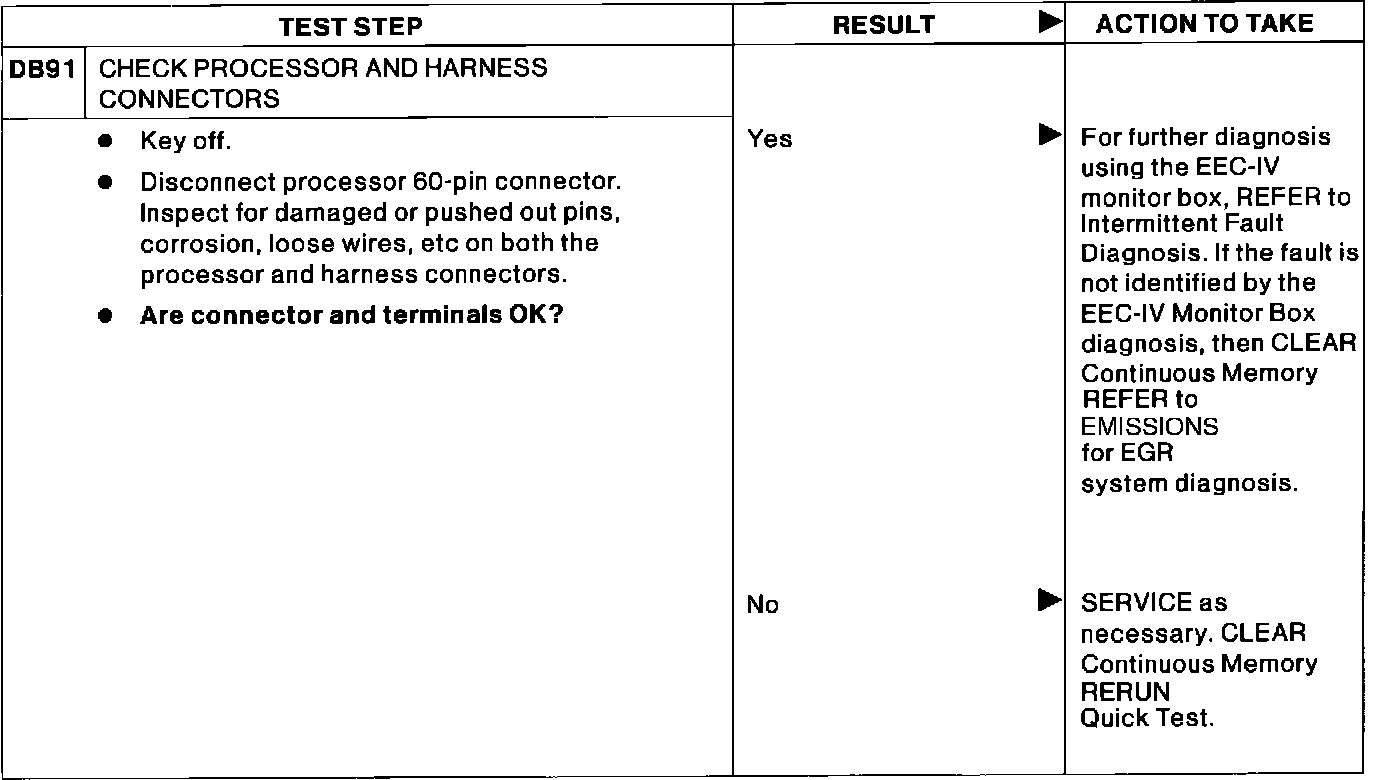

Pinpoint Test DB91:
