G - In-Range MAF/TPS/Fuel Injector Pulse Width Test
>>
G2 - Check Throttle Body
G2 - Check Throttle Body

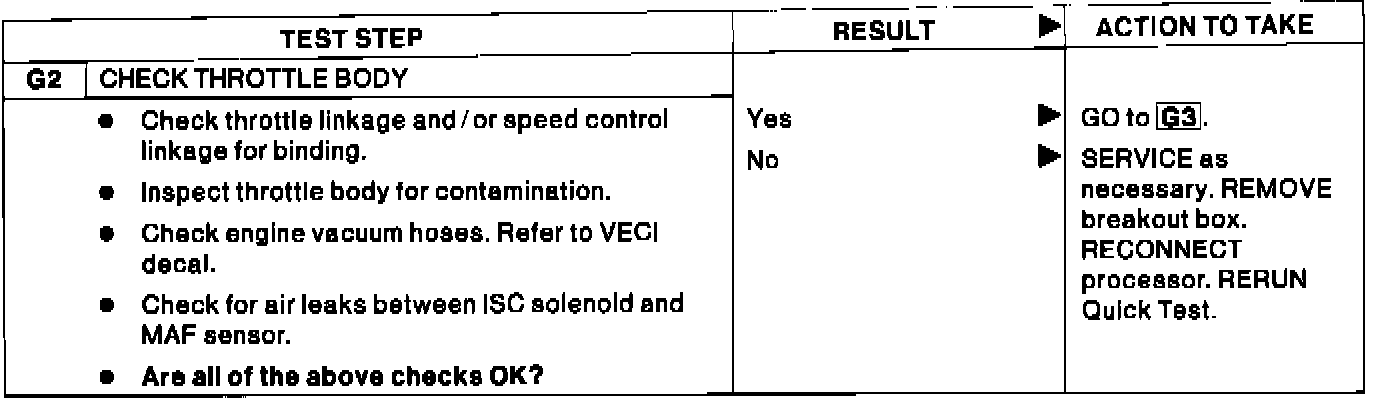

Pinpoint Test G2:
