Home >> Ford >> 1992 >> Ranger 4WD V6-177 2.9L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> TD - Manual Lever Position (MLP) Sensor >> TD4 - Check MLP Sensor Resistance

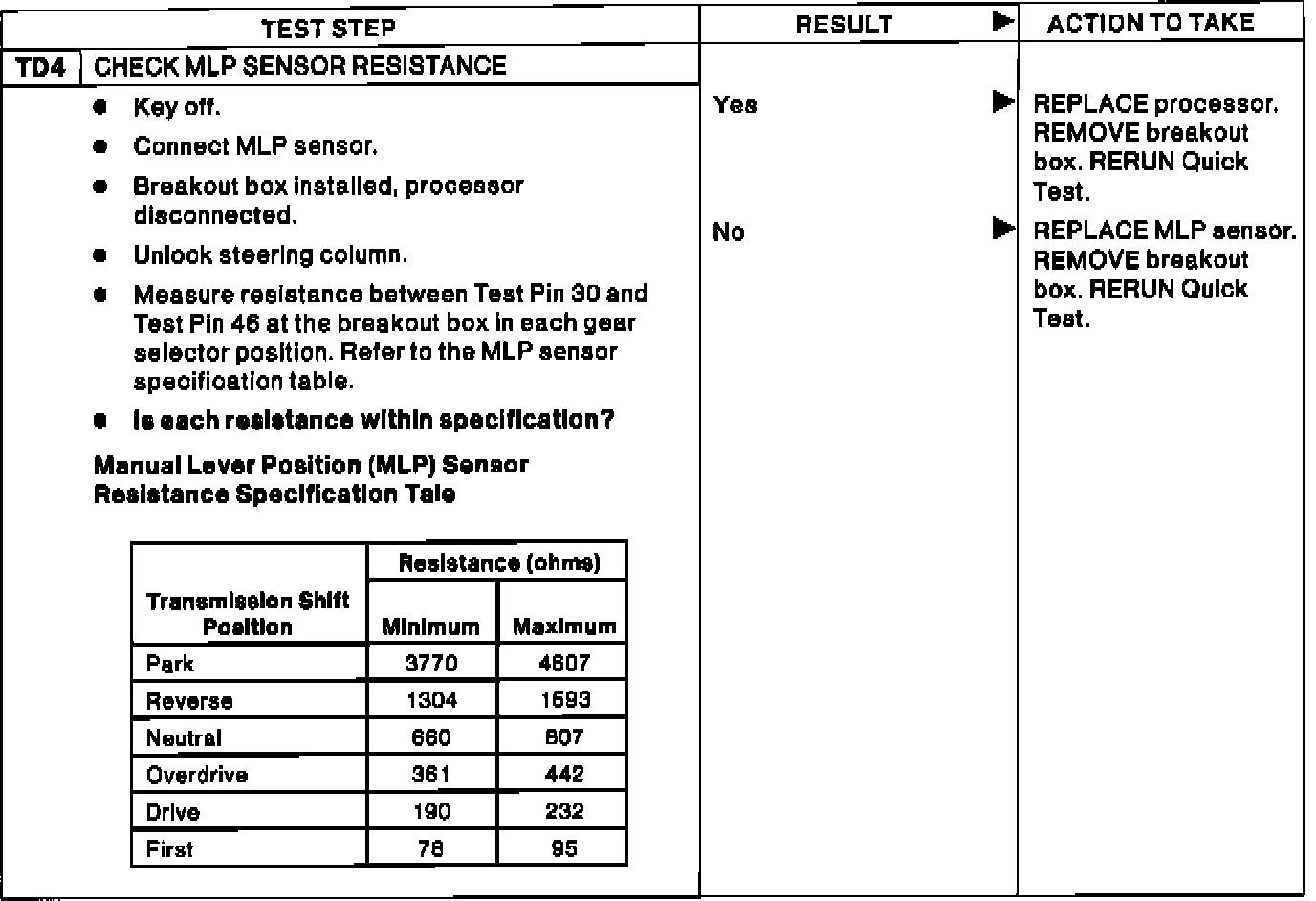

TD4 - Check MLP Sensor Resistance

Pinpoint Test TD4:
