Transmission Oil Temperature Sensor
Transmission Oil Temperature Sensor

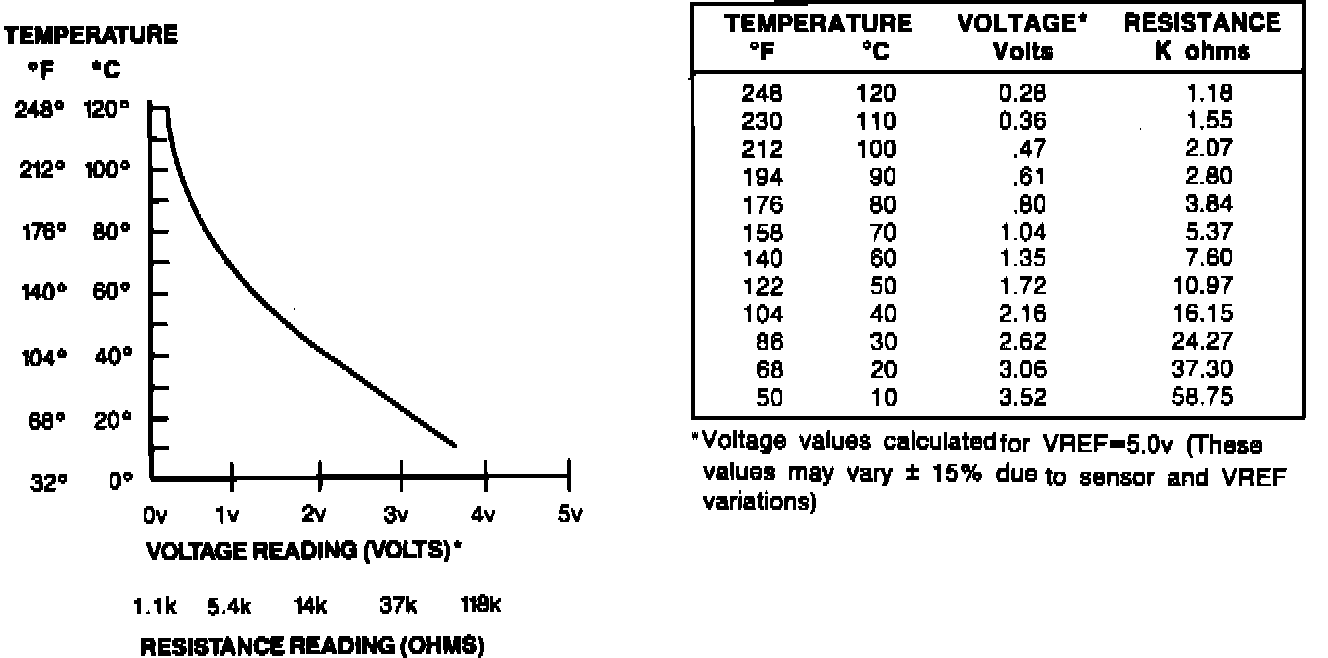

Transmission Oil Temperature Sensor Graph:
