Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1992
>>
Ranger 4WD V6-177 2.9L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Circuit Breaker
>>
Diagrams
>>
Electrical Diagrams
>>

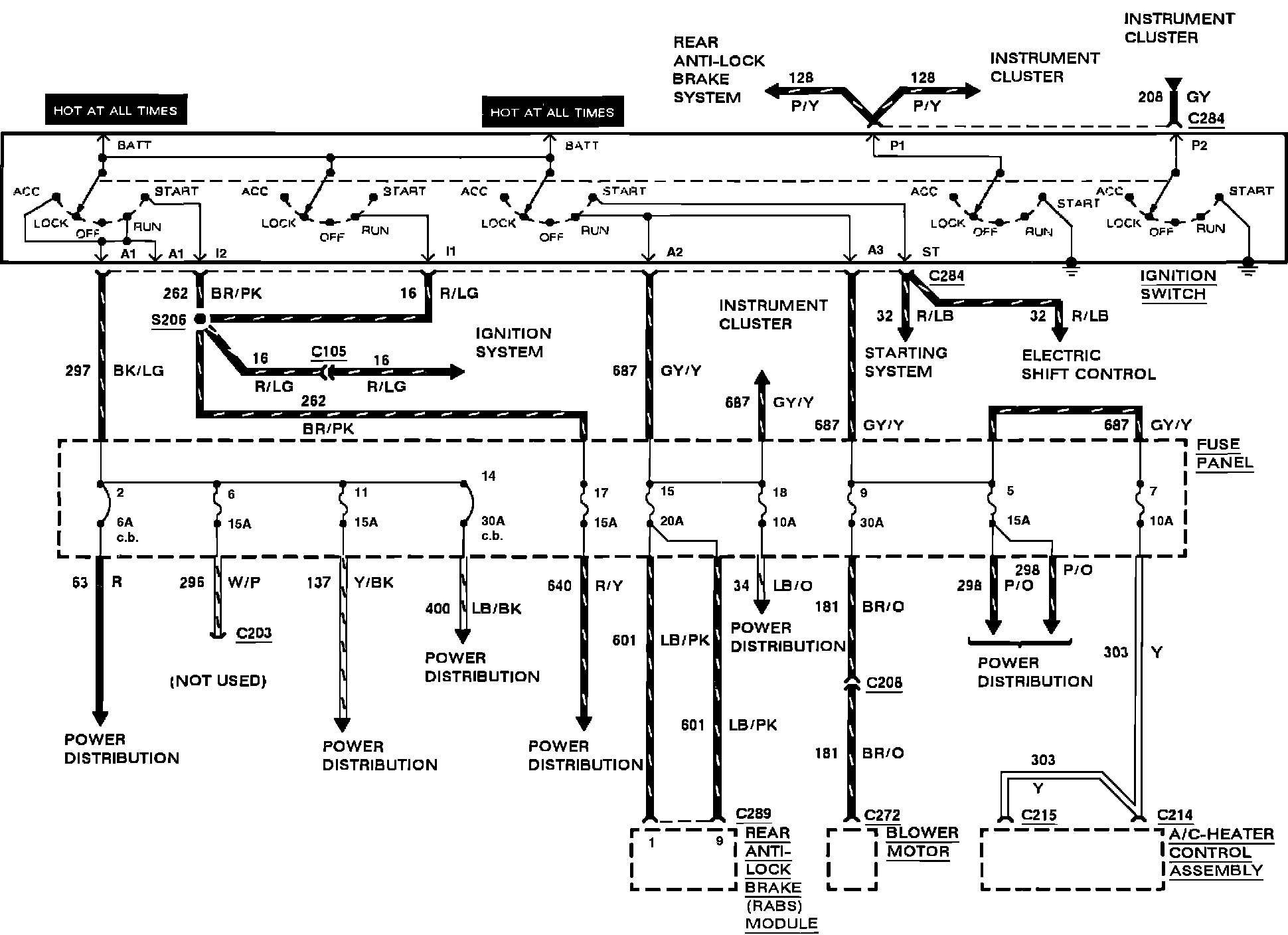

Circuit Breaker 14
Circuit Breaker 14

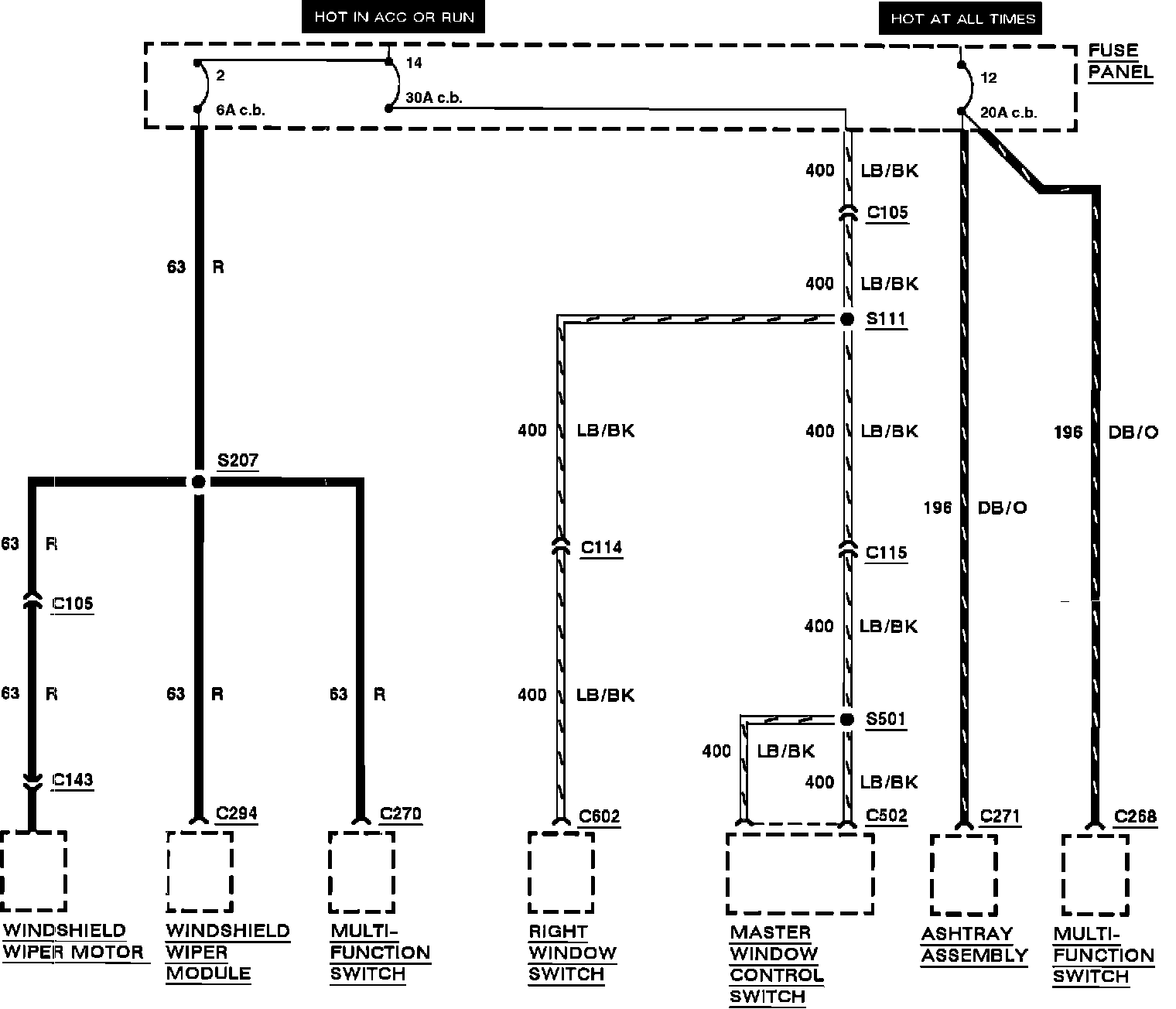

Power Distribution:
Power Distribution:
