Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1992
>>
Ranger 4WD V6-177 2.9L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Starter Motor
>>
Testing and Inspection
>>
Delco-Remy
>>
No Cranking, No Sound From Solenoid
No Cranking, No Sound From Solenoid

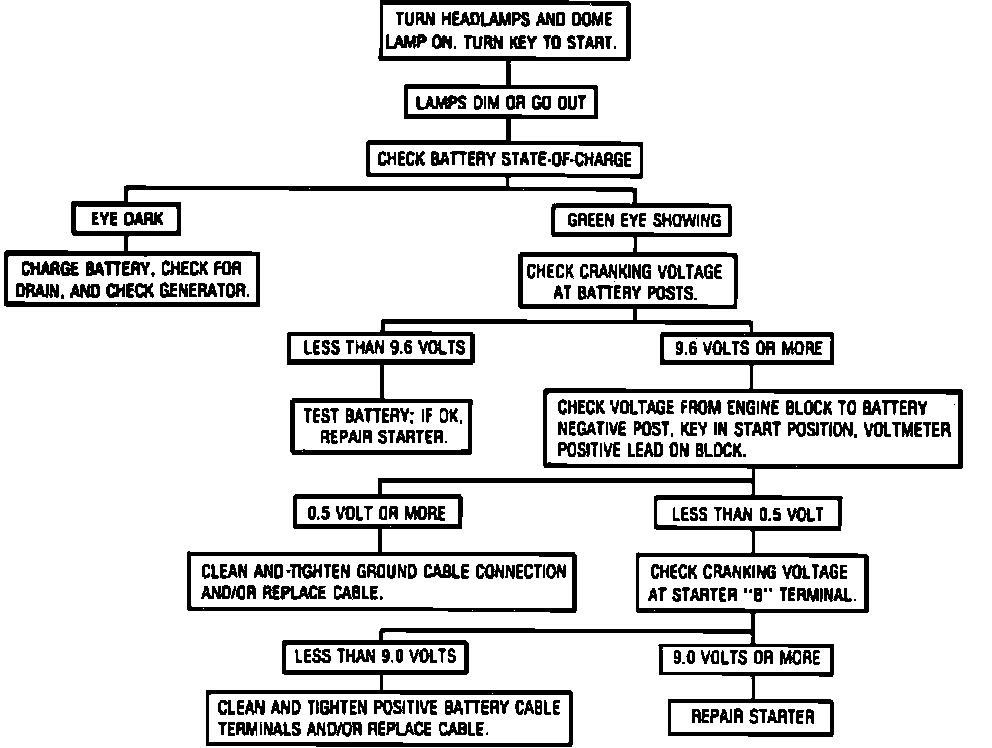

Fig. 11a Diagnostic Chart:

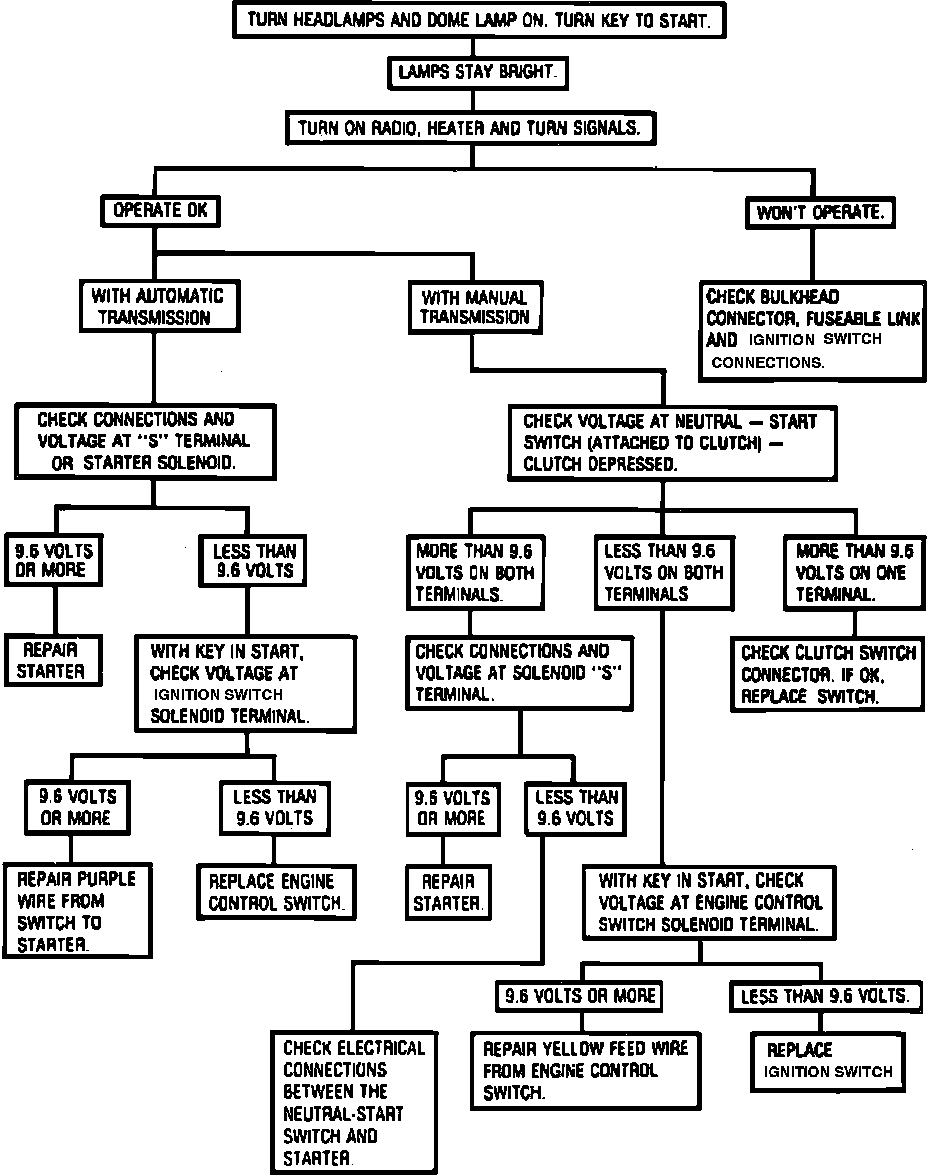

Fig. 11b Diagnostic Chart:
