Ignition Timing Connector: Locations

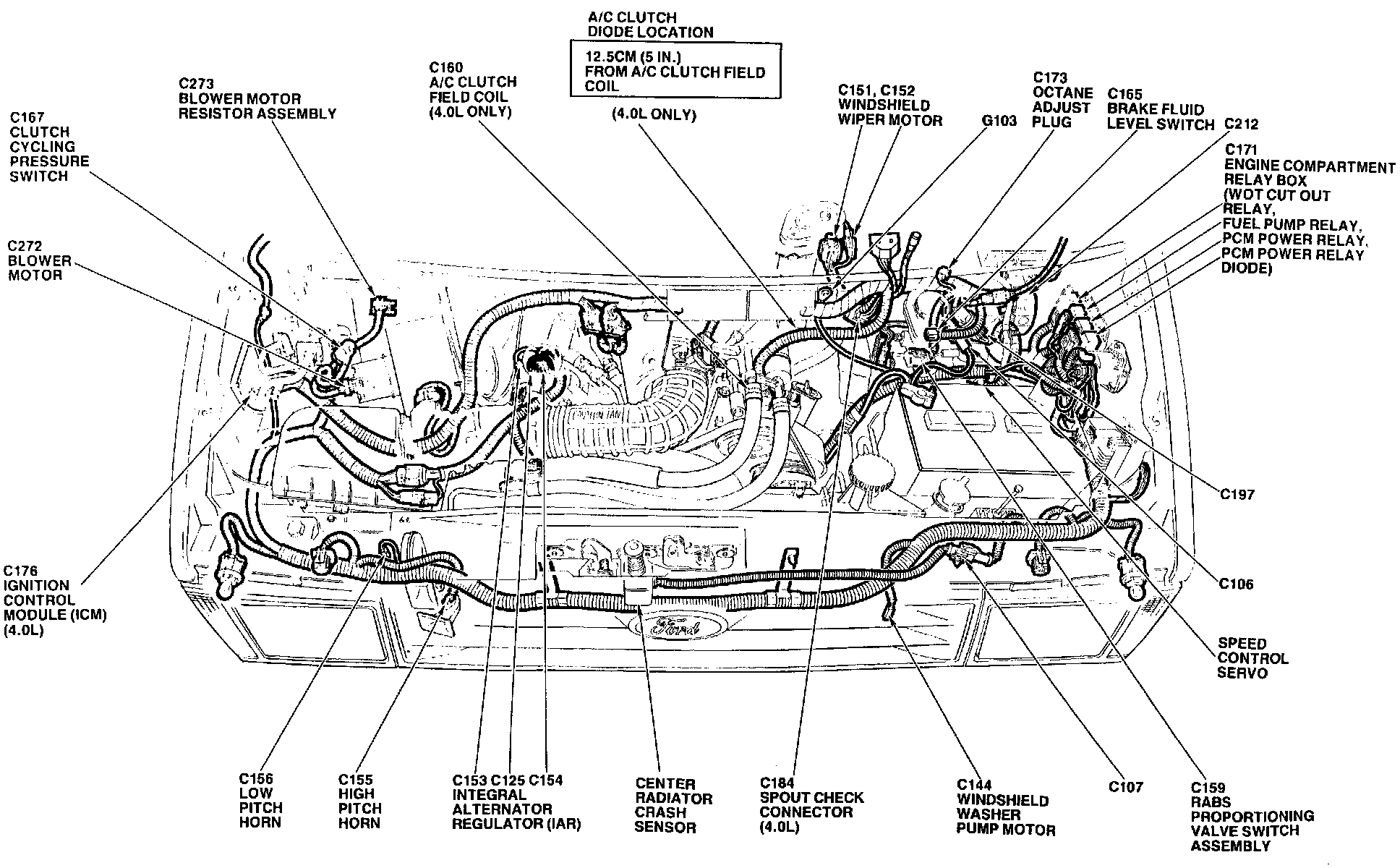

Connector Location:




The SPOUT connector (C184), is located at the LH rear of the engine compartment on the passenger side of master cylinder.
