Connector Views Used With Pinpoint Tests

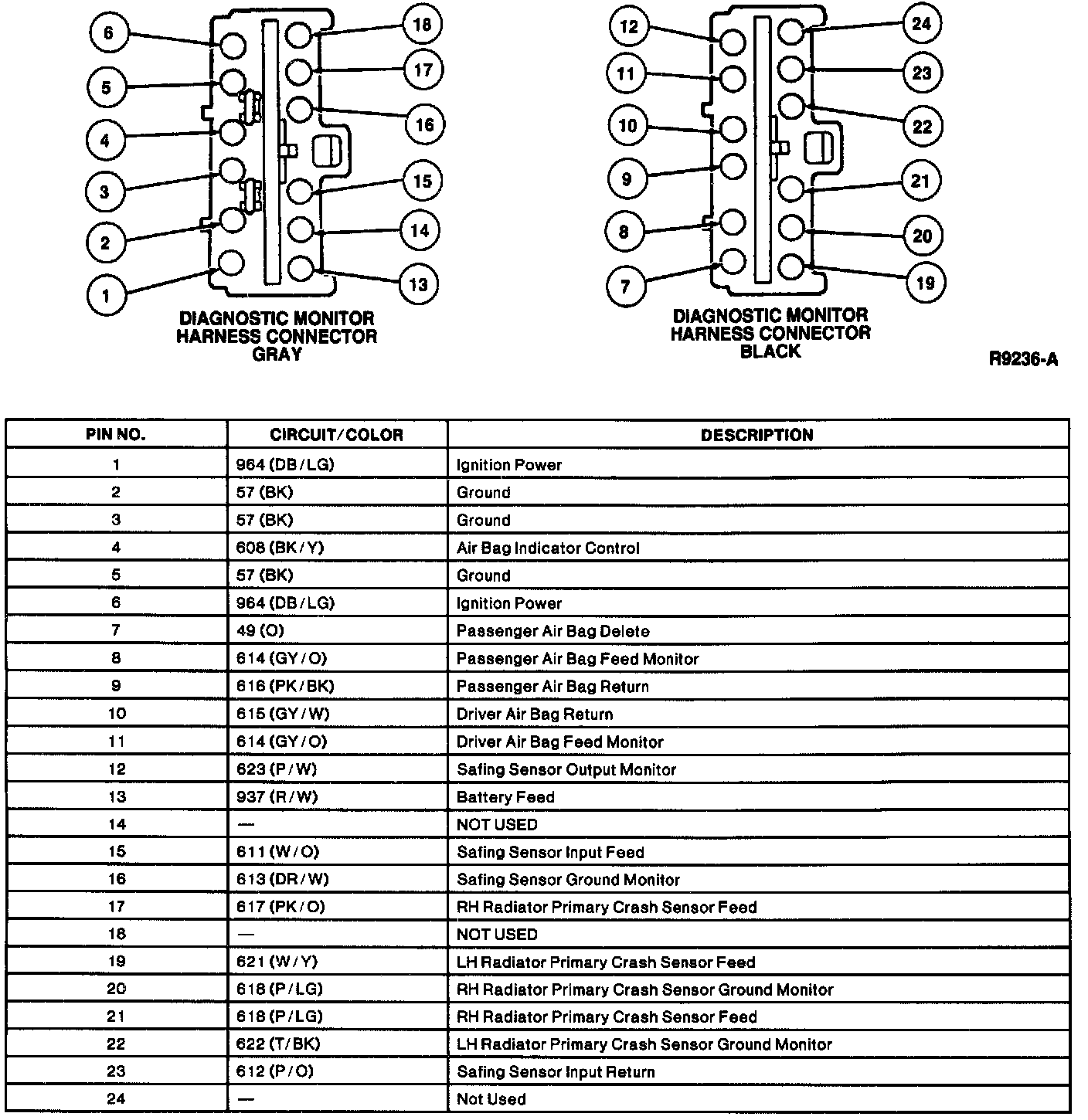

Diagnostic Module Connector Views Used With Pinpoint Tests:
