Home >> Ford >> 1993 >> E 250 Van V8-7.3L DSL >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Diagrams

Cruise Control Module: Diagrams

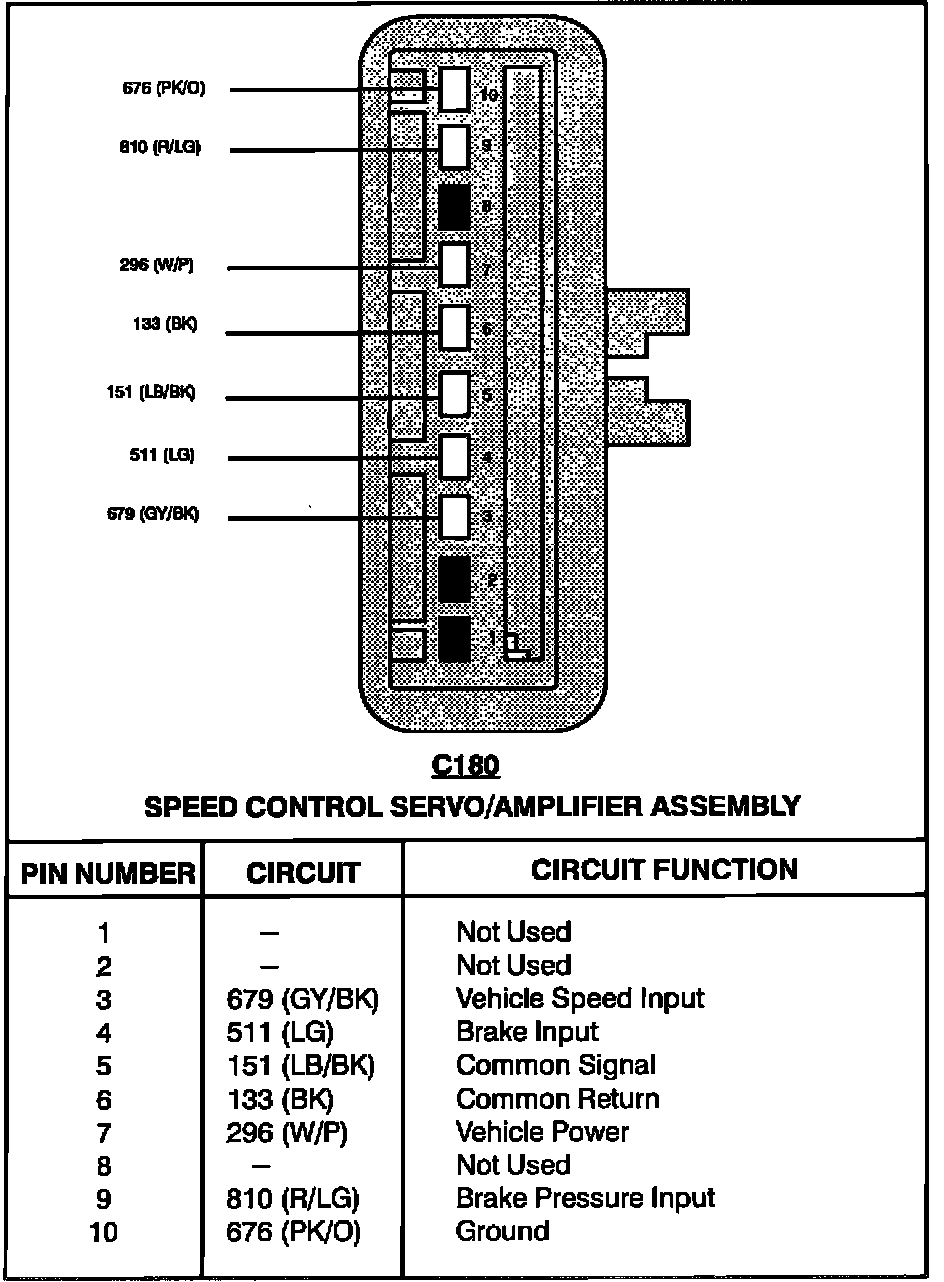

Speed Control Servo/Amplifier Assembly:
