Control Assembly: Testing and Inspection

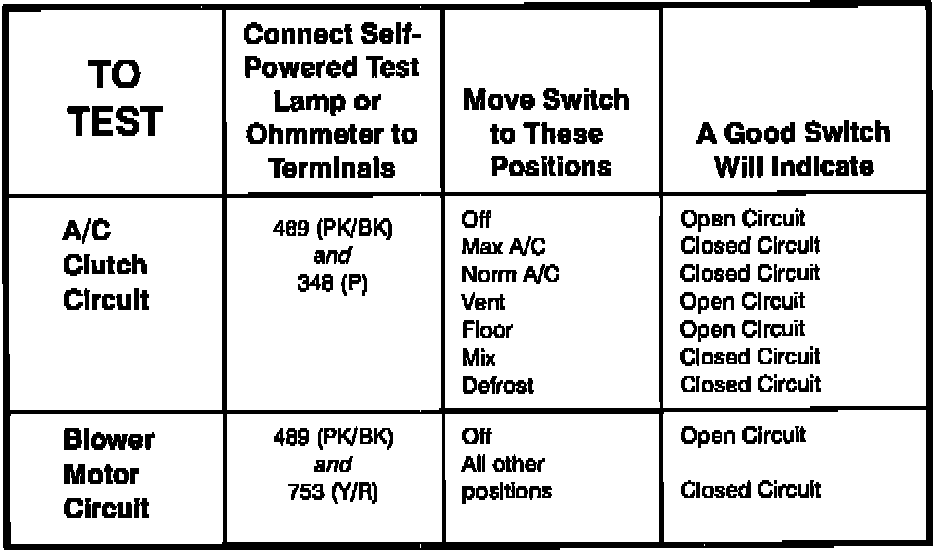

Component Testing Procedure,Heater and A/C-Heater Control Assembly:

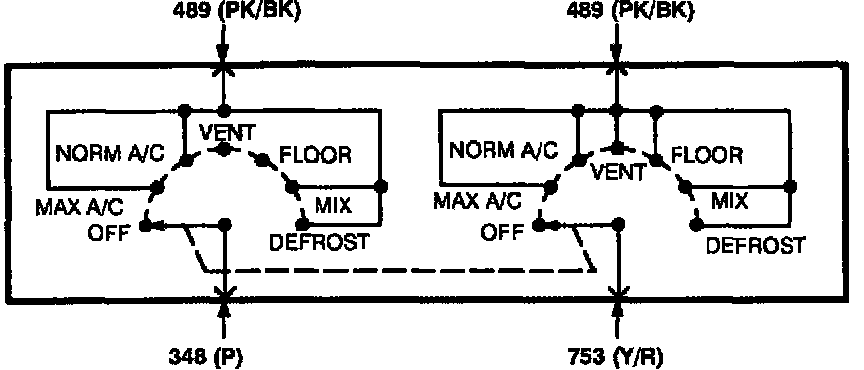

Schematic:

Function Selector Switch - Terminal Locations:
