Home
>>
Ford
>>
1993
>>
Escort L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>

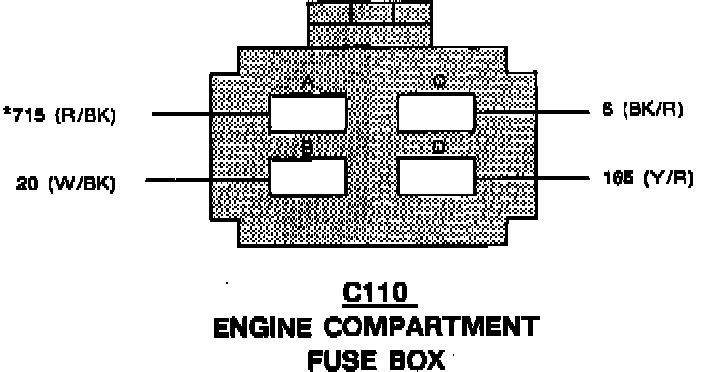

Engine Compartment Fuse Box
>>
C110
C110
Engine Compartment Fuse Box:
