Engine Views

Component Locations:

CANISTER PURGE SOLENOID
COOLANT TEMPERATURE SENDER
DATA LINK CONNECTOR
EGR CONTROL SOLENOID LOCATION (BELOW EGR VALVE POSITION (EVP) SENSOR
EGR VALVE POSITION (EVP) SENSOR
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
HEATED EXHAUST GAS OXYGEN (HEGO) SENSOR
IDLE AIR CONTROL VALVE
INTAKE AIR TEMPERATURE (IAT) SENSOR
KNOCK SENSOR
MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
OIL PRESSURE SWITCH
POWERTRAIN CONTROL MODULE
SECONDARY AIR INJECTION BYPASS (AIRB) SOLENOID
SECONDARY AIR INJECTION DIVERTER (AIRD) SOLENOID
THROTTLE POSITION SENSOR (TPS)

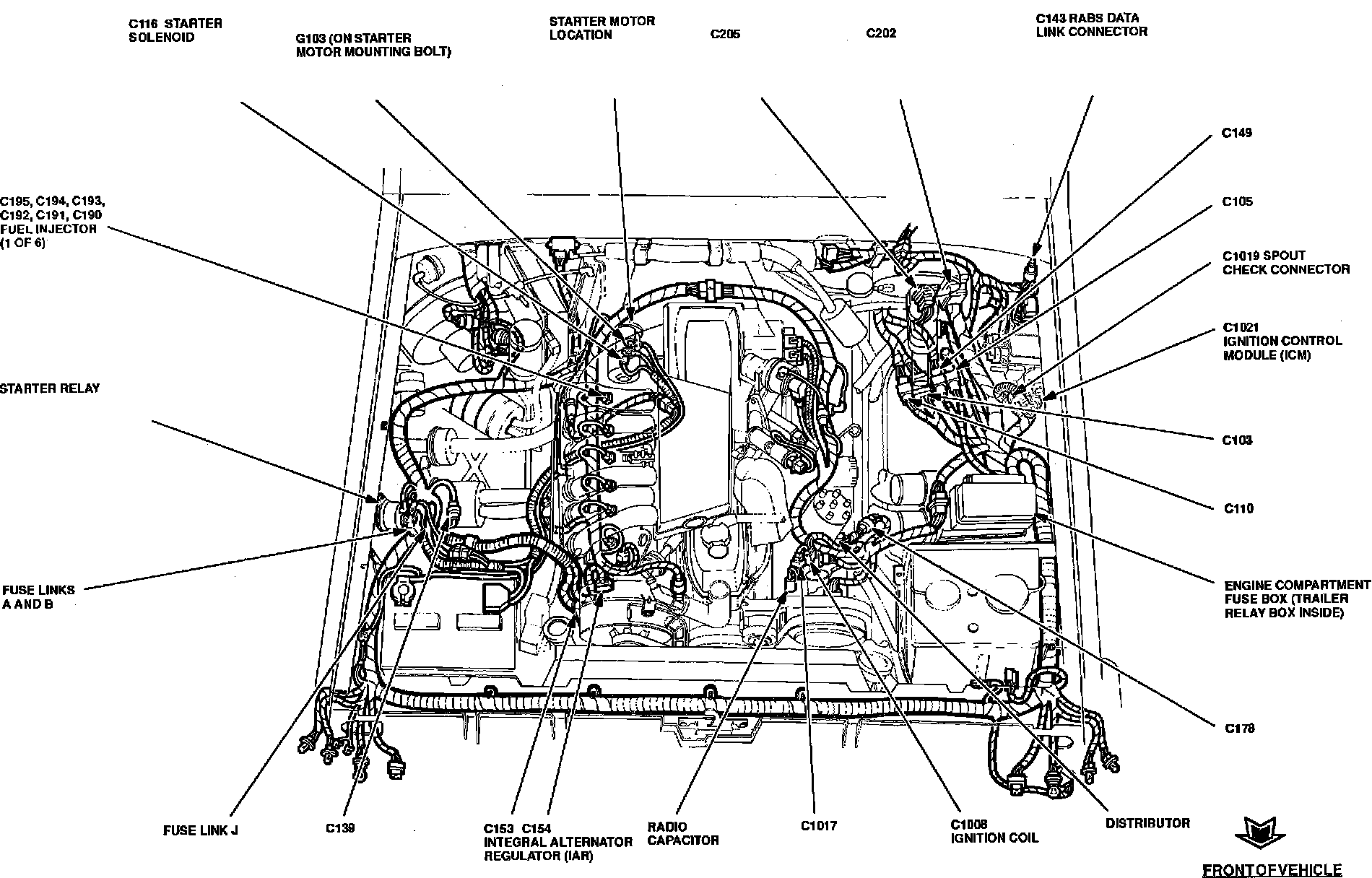

Component Locations:

(RABS) DATA LINK CONNECTOR
DISTRIBUTOR
ENGINE COMPARTMENT FUSE BOX (TRAILER RELAY BOX INSIDE)
FUEL INJECTORS
FUSE LINKS A,B,J
IGNITION COIL
IGNITION CONTROL MODULE (ICM)
INTEGRAL ALTERNATOR REGULATOR (IAR)
RADIO CAPACITOR
SPOUT CHECK CONNECTOR
STARTER MOTOR LOCATION
STARTER RELAY
STARTER SOLENOID

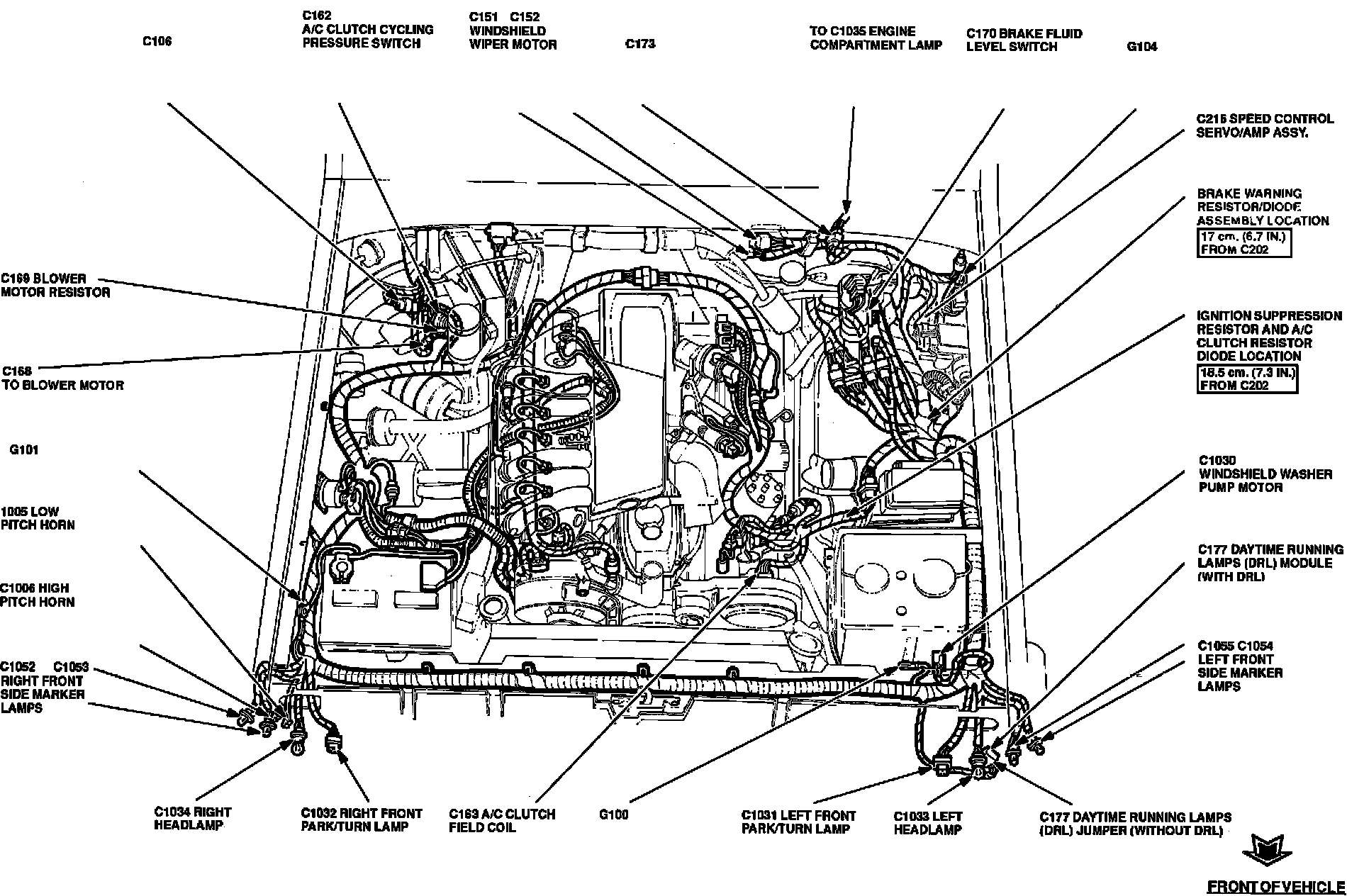

Component Locations:

BLOWER MOTOR RESISTOR
HORNS
RIGHT FRONT SIDE MARKER LAMPS
RIGHT HEADLAMP
RIGHT FRONT PARK/TURN LAMP
A/C CLUTCH FIELD COIL
LEFT FRONT PARK/TURN LAMP
LEFT HEAD LAMP
DAYTIME RUNNING LAMPS (DRL)JUMPER (WITHOUT DRL)
LEFT FRONT SIDE MARKER LAMPS
DAYTIME RUNNING LAMPS (DRL) MODULE
WINDSHIELD WASHER PUMP MOTOR
IGNITION SUPPRESSION RESISTOR AND A/C CLUTCH RESISTOR DIODE LOCATION
BRAKE WARNING RESISTOR/DIODE ASSEMBLY LOCATION
SPEED CONTROL SERVO/AMP LOCATION
BRAKE FLUID LEVEL SWITCH
ENGINE COMPARTMENT LAMP
WINDSHIELD WIPER MOTOR
A/C CLUTCH CYCLING PRESSURE SWITCH
