Full Engine Views

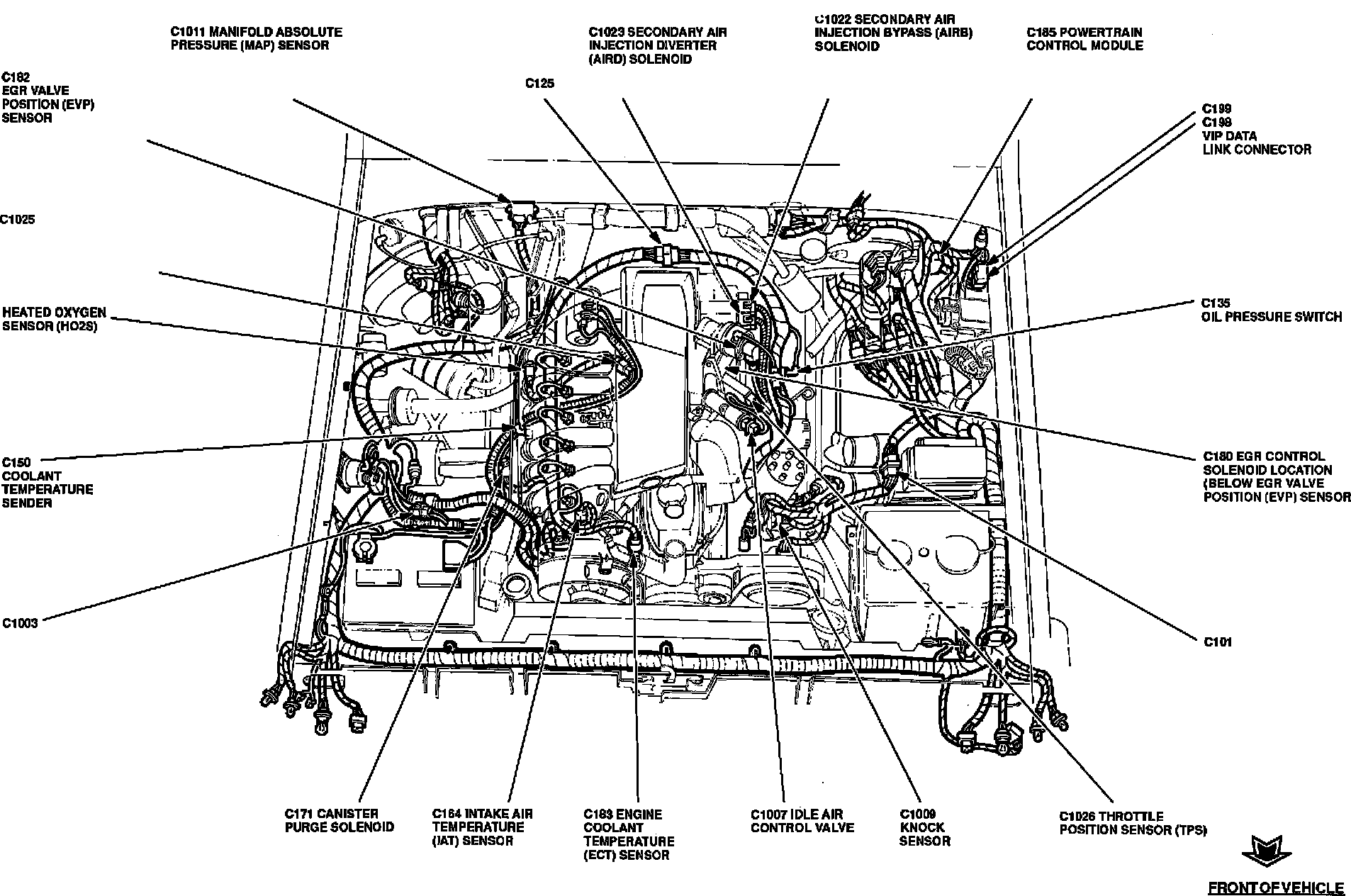

Component Locations:

CANISTER PURGE SOLENOID
COOLANT TEMPERATURE SENDER
DATA LINK CONNECTOR
EGR CONTROL SOLENOID LOCATION (BELOW EGR VALVE POSITION (EVP) SENSOR
EGR VALVE POSITION (EVP) SENSOR
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
HEATED EXHAUST GAS OXYGEN (HEGO) SENSOR
IDLE AIR CONTROL VALVE
INTAKE AIR TEMPERATURE (IAT) SENSOR
KNOCK SENSOR
MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
OIL PRESSURE SWITCH
POWERTRAIN CONTROL MODULE
SECONDARY AIR INJECTION BYPASS (AIRB) SOLENOID
SECONDARY AIR INJECTION DIVERTER (AIRD) SOLENOID
THROTTLE POSITION SENSOR (TPS)
