Engine Views

Component Locations:

4WABS CONTROL MODULE (BRONCO)
4WABS DATA LINK CONNECTOR
4WABS PUMP MOTOR (BRONCO)
BRAKE PRESSURE SWITCH
CANISTER PURGE SOLENOID
DATA LINK CONNECTOR
DISTRIBUTOR
EGR SOLENOID
EGR VALVE POSITION (EVP) SENSOR
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
FUEL INJECTORS
HEATED OXYGEN SENSOR
IDLE AIR CONTROL VALVE
IGNITION COIL
IGNITION CONTROL MODULE
INTAKE AIR TEMPERATURE SENSOR
KNOCK SENSOR
MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
POWER STEERING PRESSURE SWITCH
POWERTRAIN CONTROL MODULE (PCM)
RADIO CAPACITOR
RIGHT FRONT WHEEL 4WABS SENSOR (BRONCO)
SECONDARY AIR INJECTION BYPASS (AIRB) SOLENOID (ROUND)
SECONDARY AIR INJECTION DIVERTER (AIRD) SOLENOID (SQUARE)
SPOUT CHECK CONNECTOR
STARTER MOTOR LOCATION
STARTER RELAY
THROTTLE POSITION SENSOR (TPS)

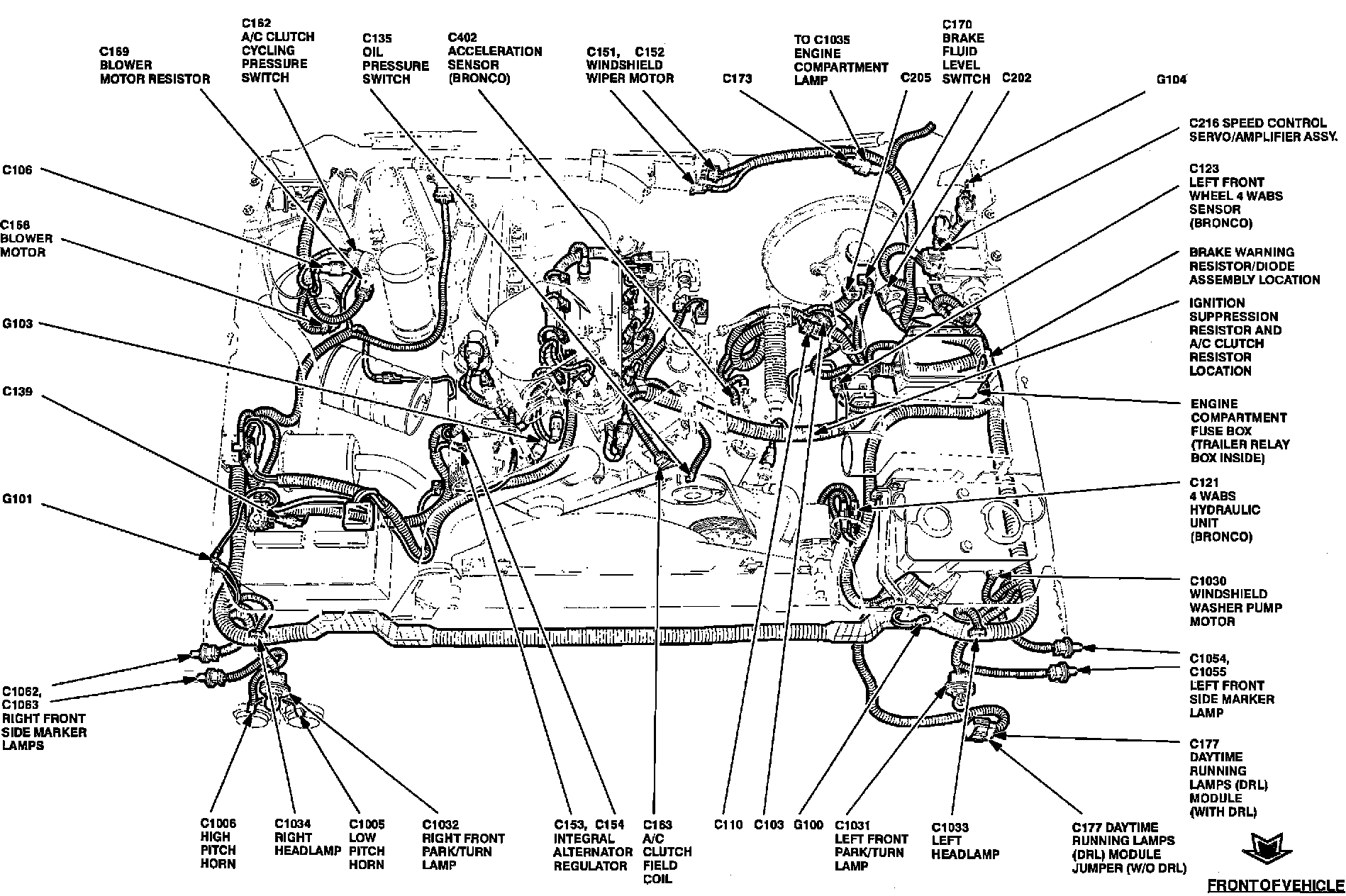

Component Locations:

4WABS HYDRAULIC UNIT
A/C CLUTCH CYCLING PRESSURE SWITCH
A/C CLUTCH FIELD COIL
ACCELERATION SENSOR
BLOWER MOTOR
BLOWER MOTOR RESISTOR
BRAKE FLUID LEVEL SWITCH
BRAKE WARNING RESISTOR/DIODE ASSEMBLY LOCATION
DAYTIME RUNNING LAMPS (DRL) MODULE, AND JUMPER (W/O DRL)
ENGINE COMPARTMENT FUSE BOX (TRAILER RELAY BOX INSIDE)
HORNS
IGNITION SUPPRESSION RESISTOR AND A/C CLUTCH RESISTOR LOCATION
INTEGRAL ALTERNATOR REGULATOR
LEFT FRONT PARK/TURN LAMP
LEFT FRONT WHEEL 4WABS SENSOR
LEFT FRONT SIDE MARKER LAMP
OIL PRESSURE SWITCH
RIGHT FRONT PARK/TURN LAMP
RIGHT FRONT SIDE MARKER LAMPS
RIGHT HEADLAMP
SPEED CONTROL SERVO/AMPLIFIER Assembly.
WINDSHIELD WASHER PUMP MOTOR
WINDSHIELD WIPER MOTOR
