DC - Mass Air Flow (MAF) Sensor
>>
DC15 - Check MAF Circuit For Shorts to GND and MAF RTN Circuit
DC15 - Check MAF Circuit For Shorts to GND and MAF RTN Circuit

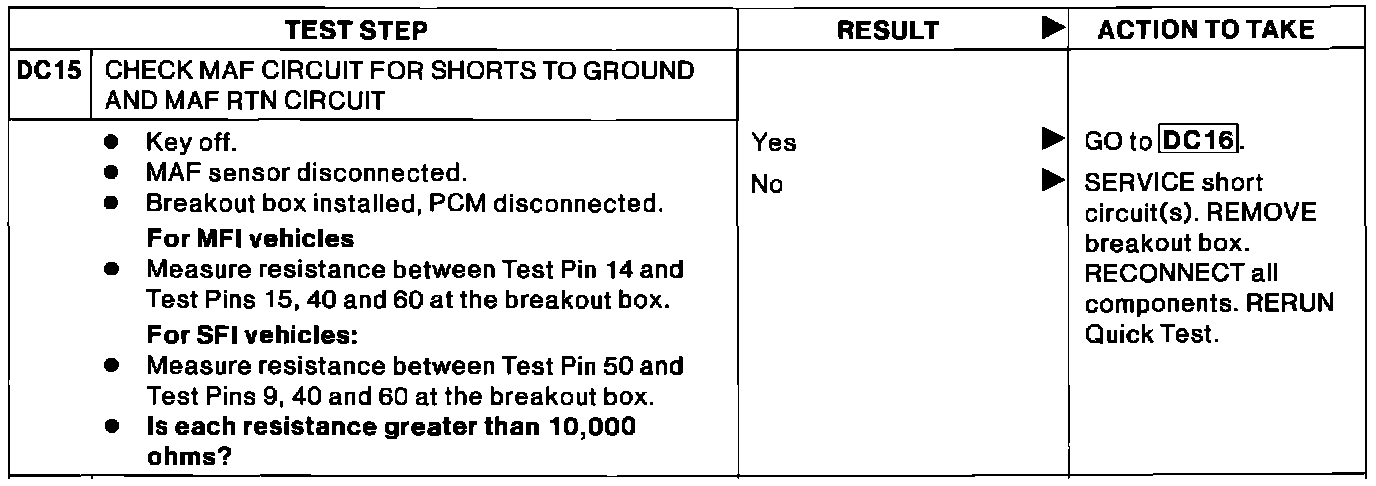

Pinpoint Test DC15:
