Home >> Ford >> 1993 >> F 150 2WD Pickup V8-302 5.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DH - Throttle Position (TP) Sensor >> DH13 - Check TP Circuit For Shorts to Ground

DH13 - Check TP Circuit For Shorts to Ground

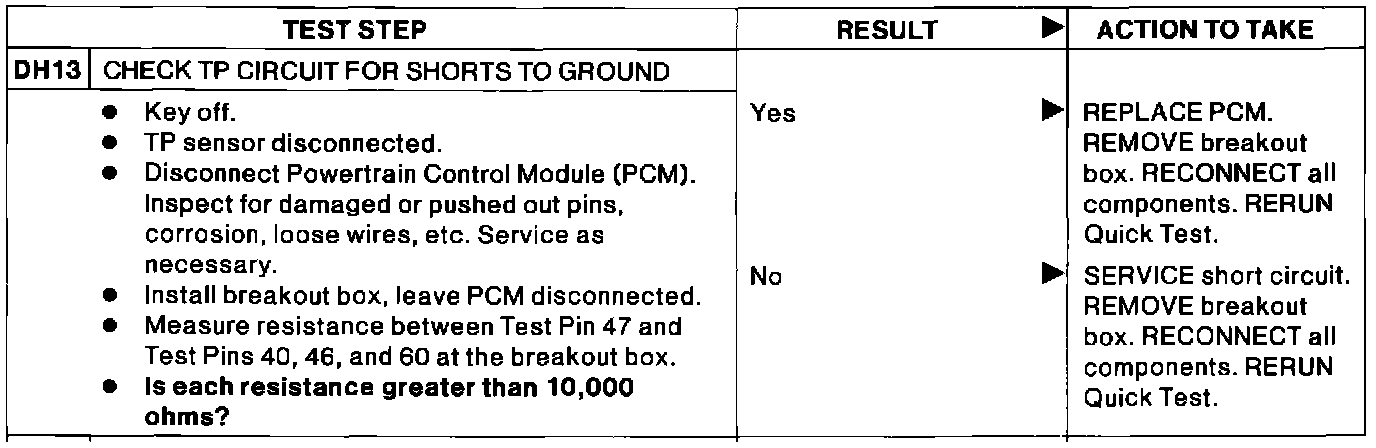

Pinpoint Test DH13:
