Heating System
Heating System

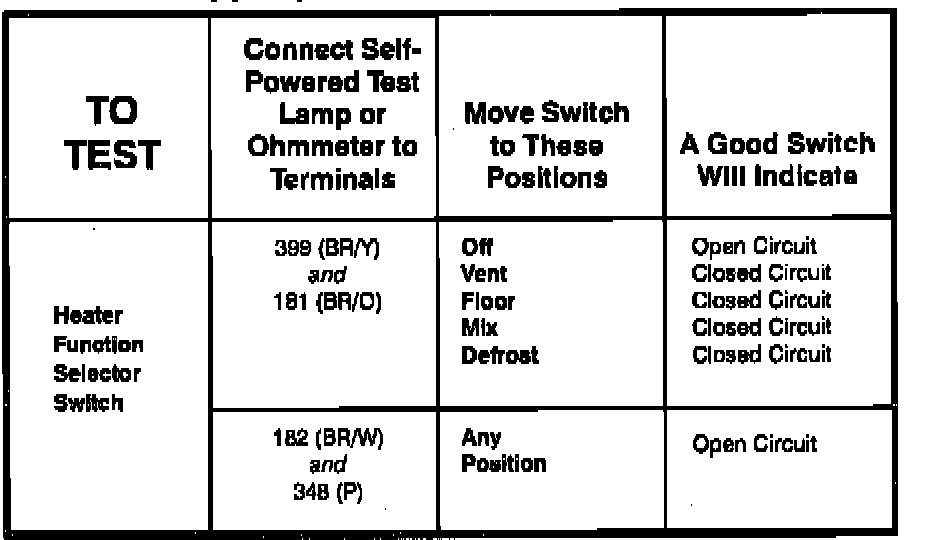

Component Testing Procedure Heater:

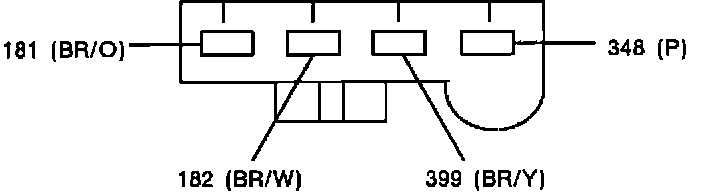

Terminal Locations:

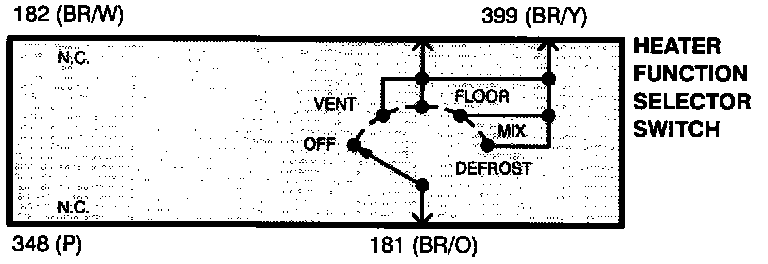

Heater Function Selector Switch - Schematic:
