Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Interior Fuse Panel
Interior Fuse Panel

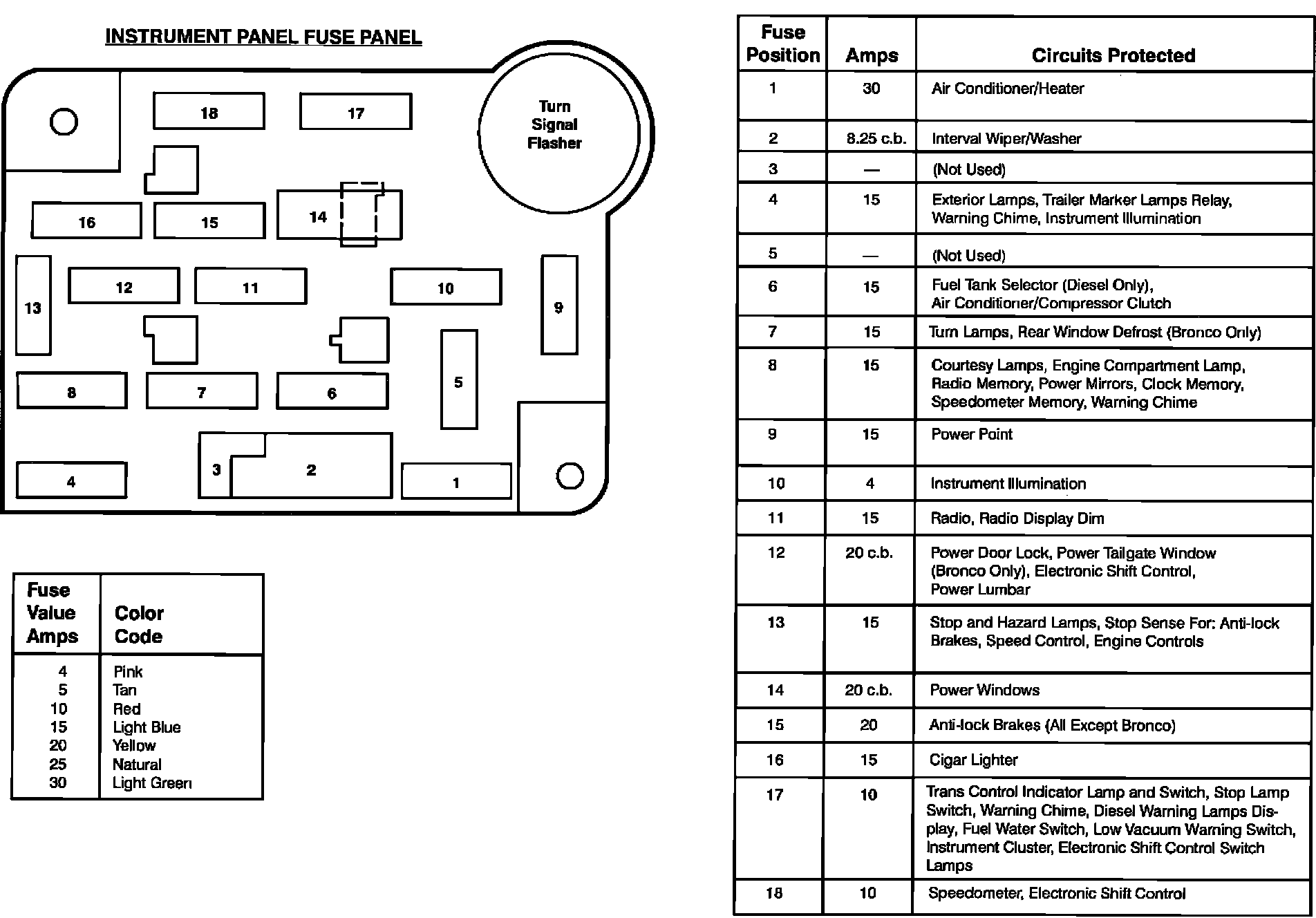

Instrument Panel Fuse Panel/Circuit Protector:
