Firing Order
Firing Order

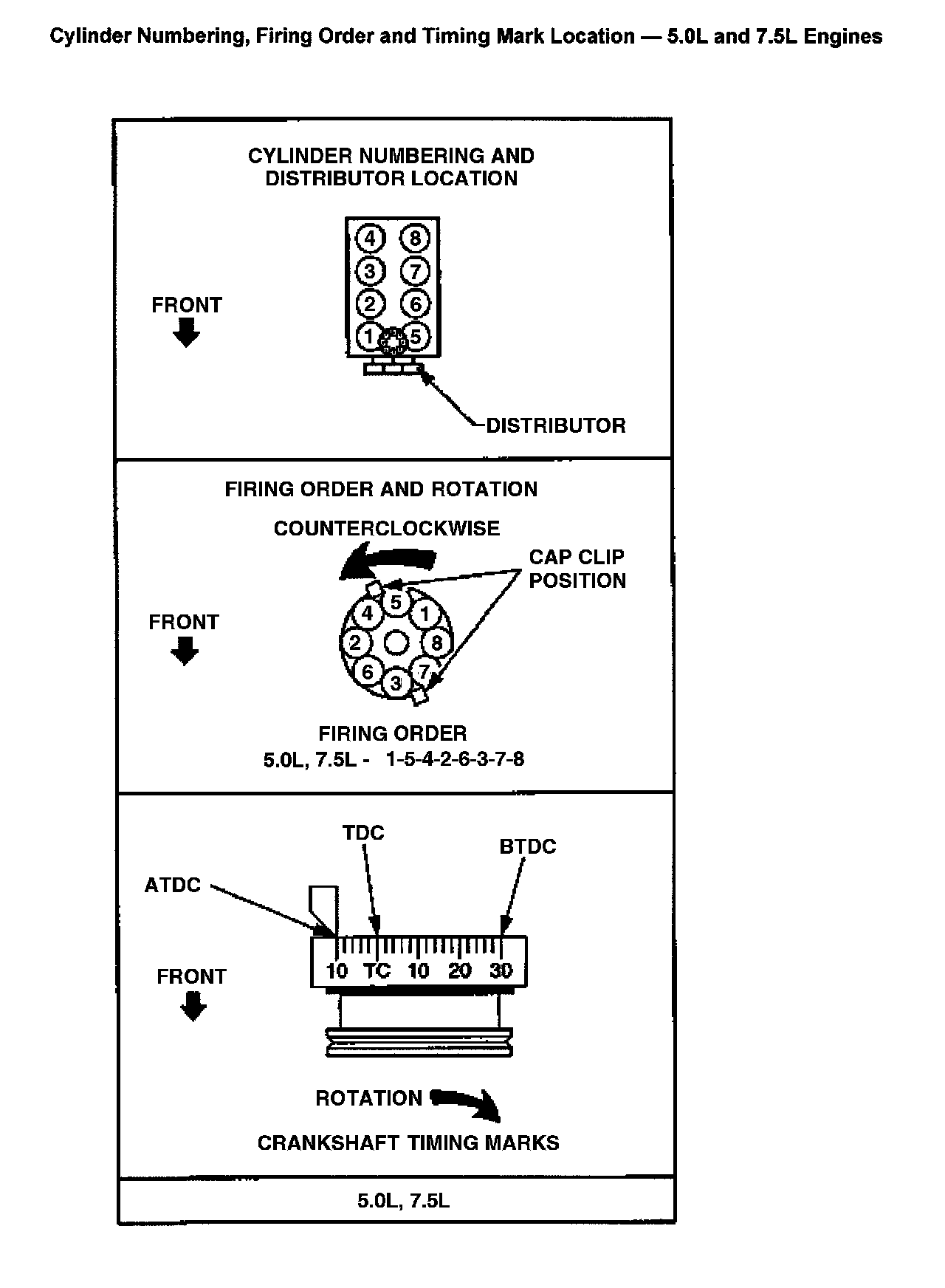

Cylinder Numbering, Firing Order, And Timing Mark Location 5.0 & 7.5:
Firing Order
: 1-5-4-2-6-3-7-8
