Mustang L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Air Flow Meter/Sensor
Air Flow Meter/Sensor

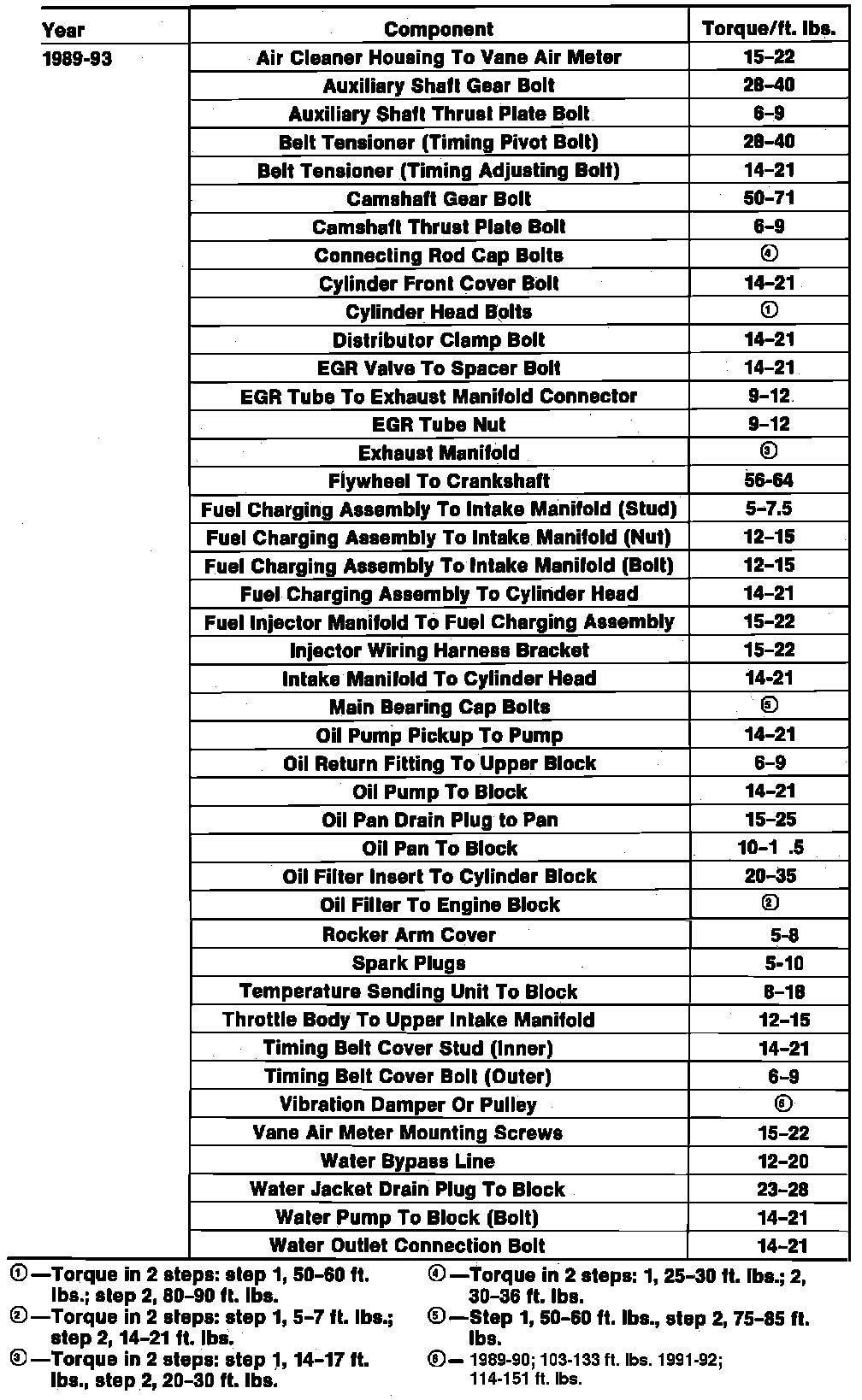

Fig. 19 Tightening Specifications:
Tightening Specifications:
