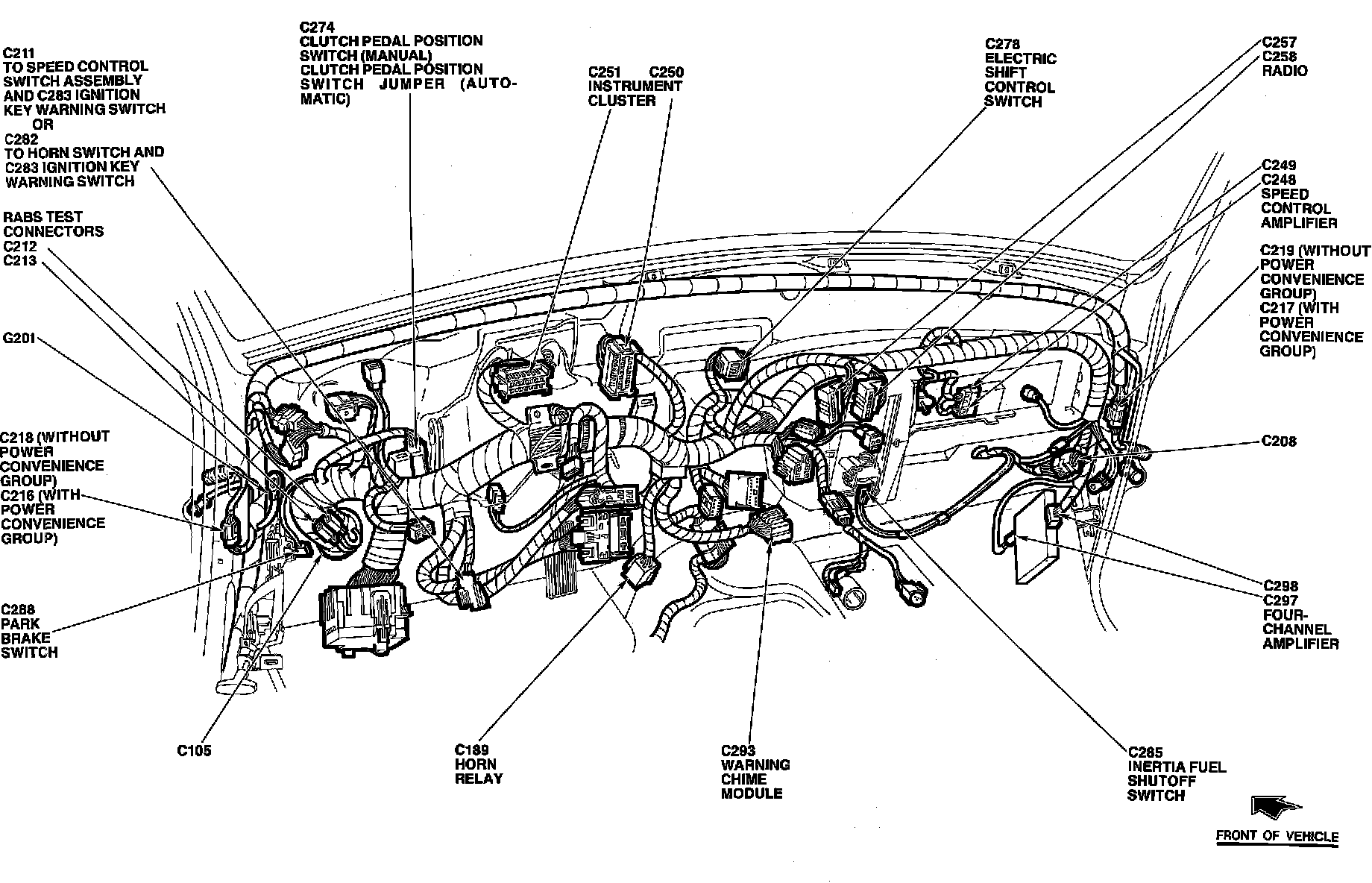

Behind Instrument Panel Views

Component Locations:

CLUTCH PEDAL POSITION SWITCH
ELECTRIC SHIFT CONTROL SWITCH
FOUR-CHANNEL AMPLIFIER
HORN RELAY
HORN SWITCH
IGNITION KEY WARNING SWITCH
INERTIA FUEL SHUTOFF SWITCH
INSTRUMENT CLUSTER
MANUAL CLUTCH PEDAL POSITION SWITCH JUMPER (AUTOMATIC)
PARK BRAKE SWITCH
RABS TEST CONNECTORS
SPEED CONTROL AMPLIFIER
SPEED CONTROL SWITCH ASSEMBLY
WARNING CHIME MODULE
