Ignition Timing Connector: Locations






SPOUT Check Connector:

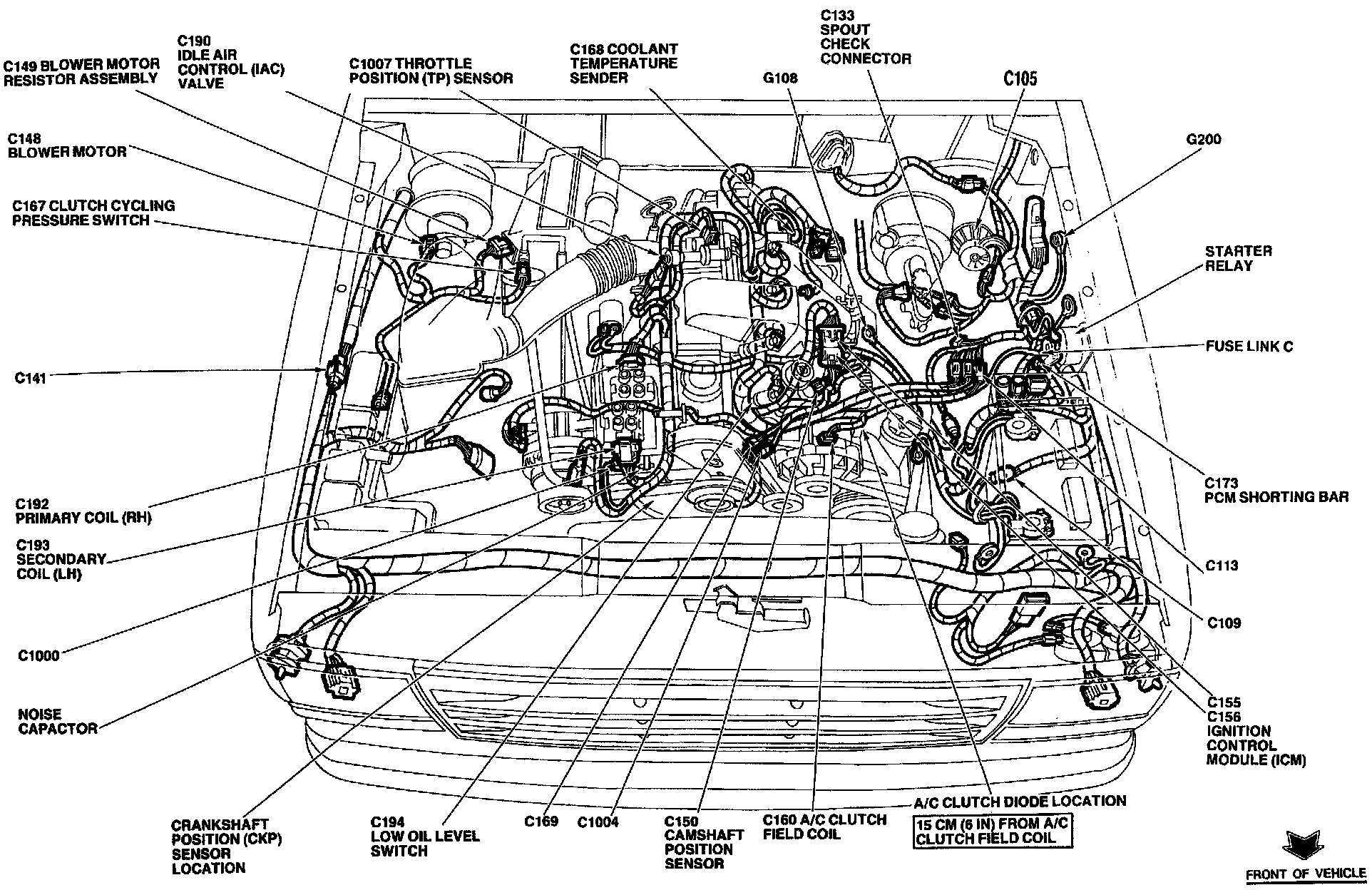

The SPOUT check connector (C133), is located in the engine compartment near the Distributorless Ignition System (DIS) module.
