Control Module, Transfer Case

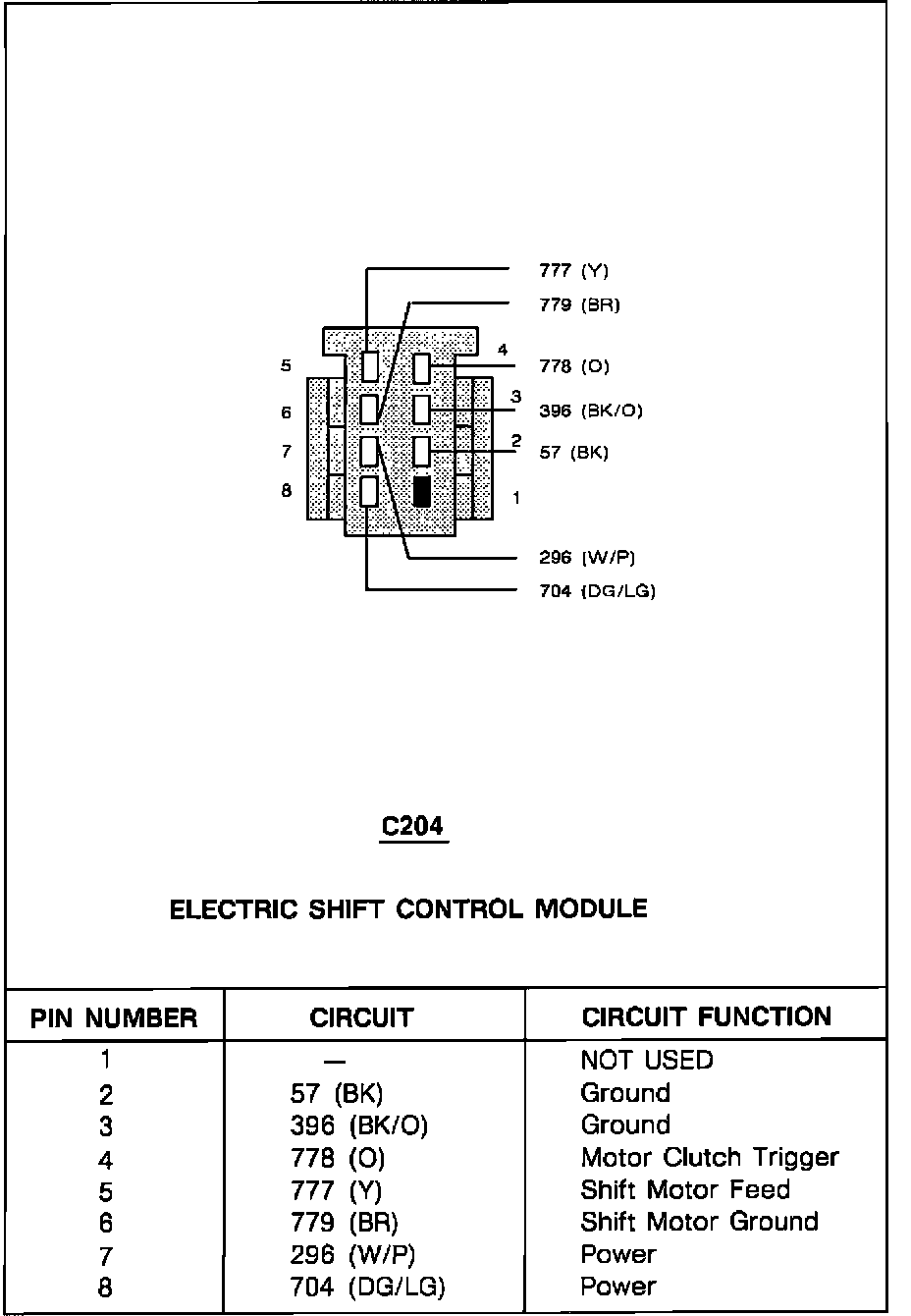

Electric Shift Control Module C204:

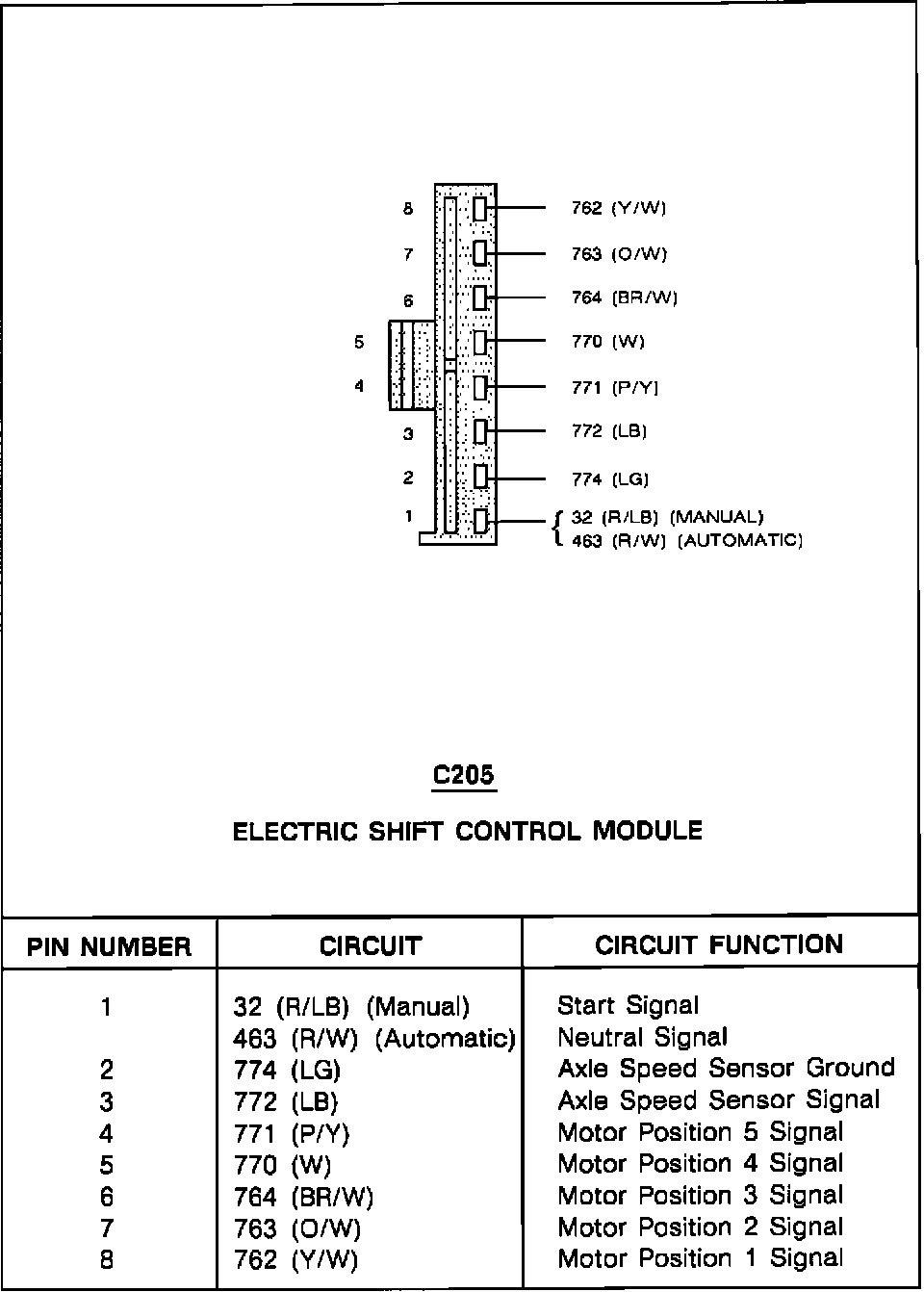

Electric Shift Control Module C205:

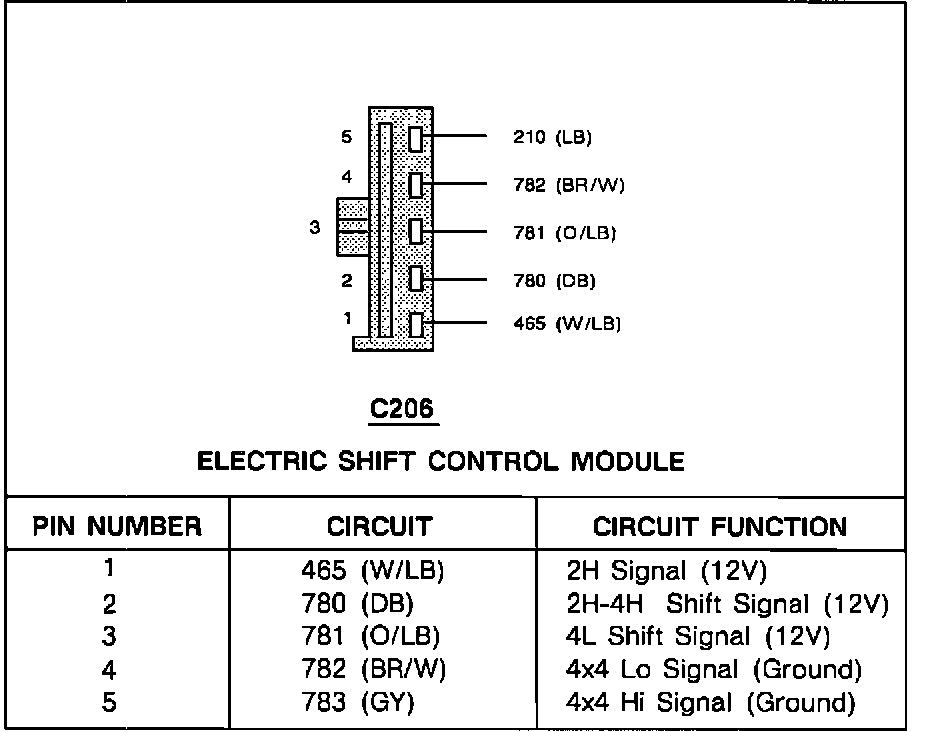

Electric Shift Control Module C206:
