Connector Views

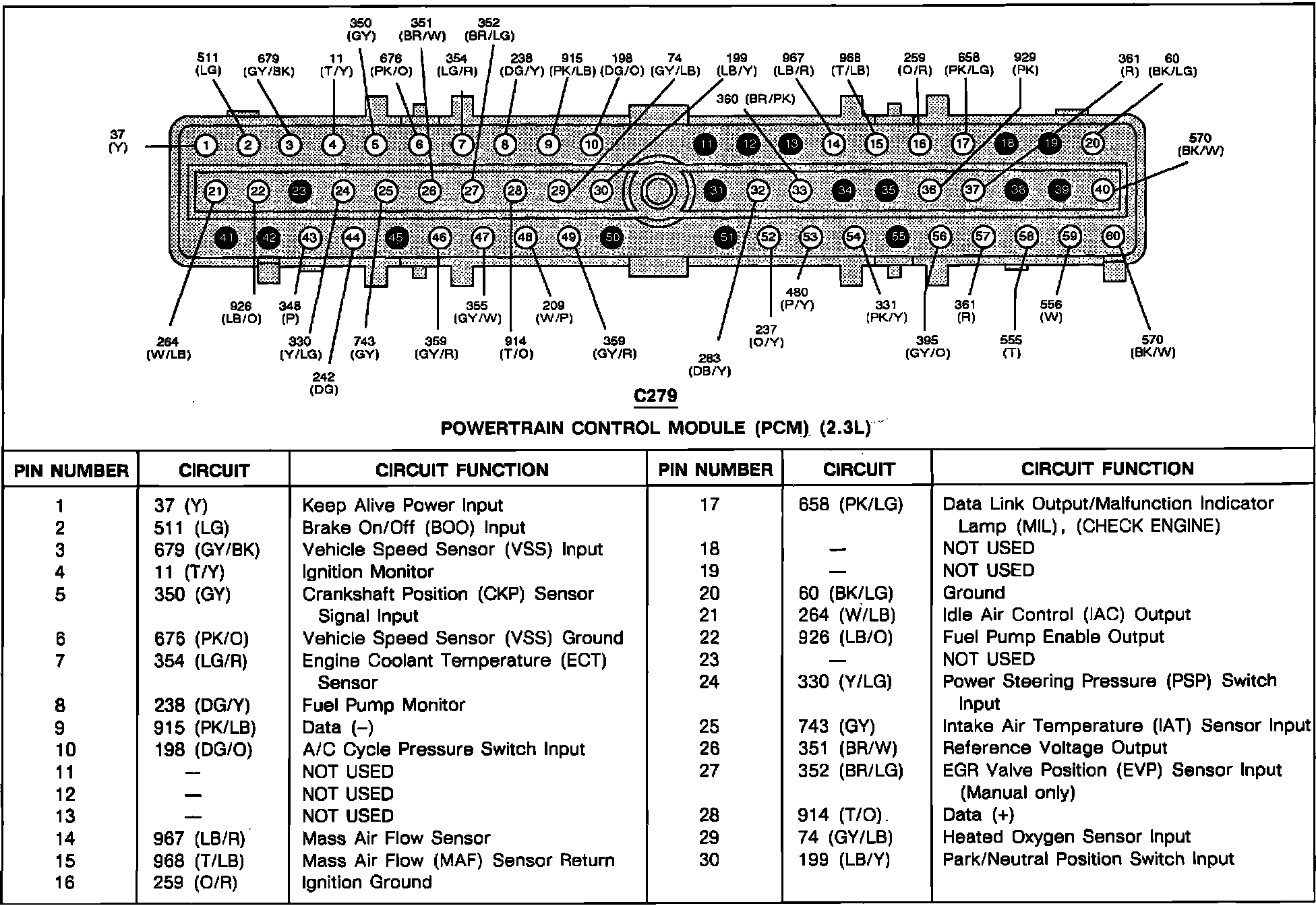

Powertrain Control Module (PCM) 2.3L:

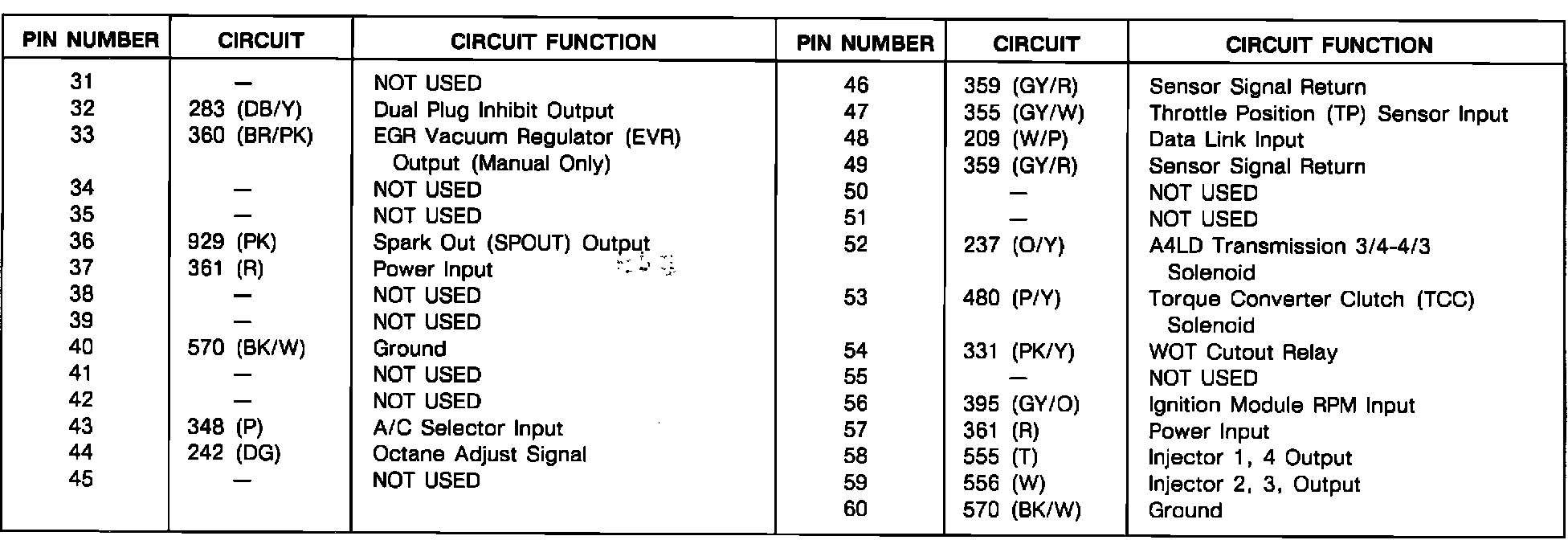

Powertrain Control Module (PCM) Circuit Function 2.3L:
