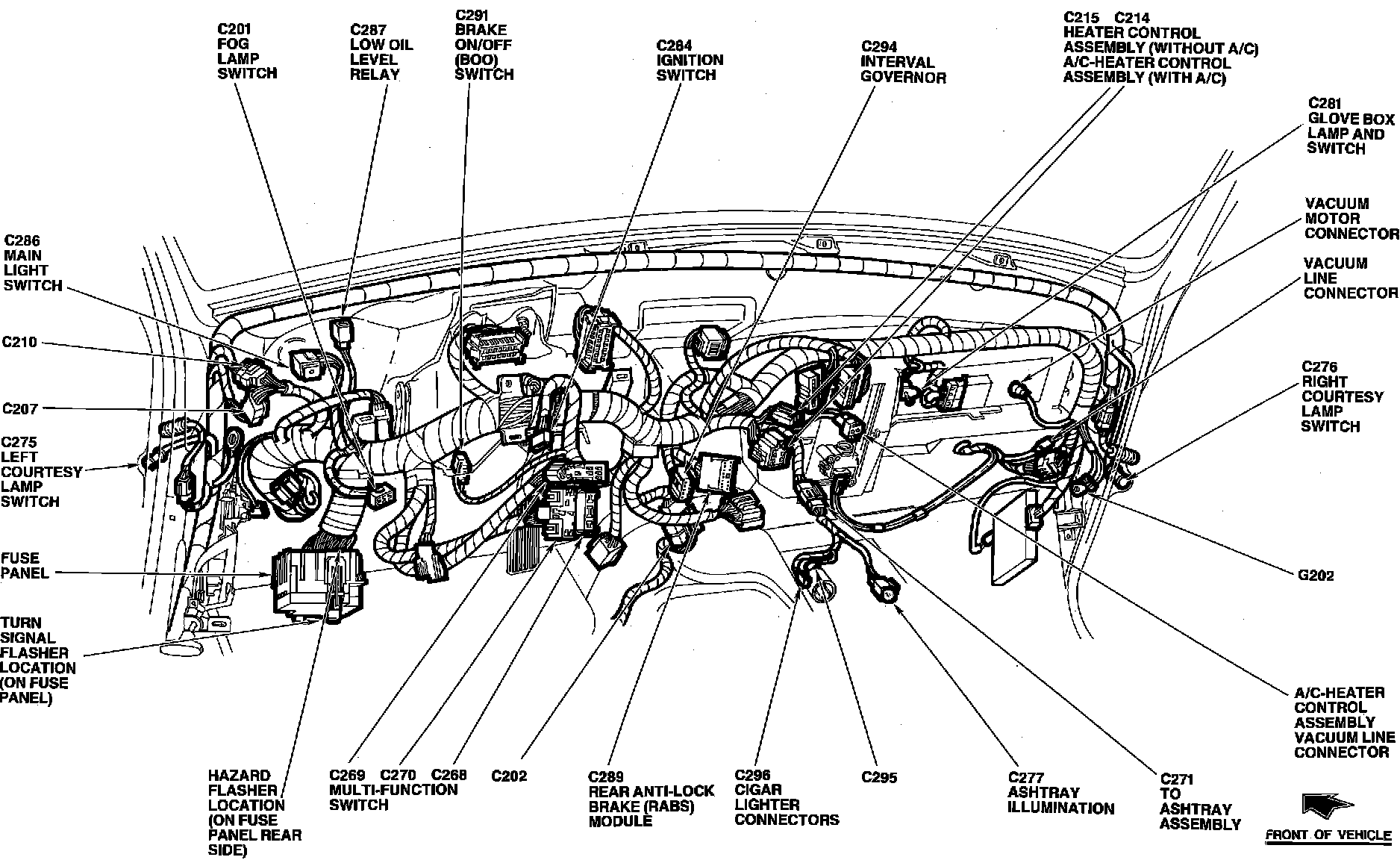

Behind Instrument Panel Views

Component Locations:

A/C-HEATER CONTROL ASSEMBLY
A/C-HEATER CONTROL ASSEMBLY (WITH A/C)
ASHTRAY ASSEMBLY
ASHTRAY ILLUMINATION
BRAKE ON/OFF (BOO) SWITCH
CIGAR LIGHTER
FOG LAMP SWITCH
FUSE PANEL
GLOVE BOX LAMP AND SWITCH
HAZARD FLASHER
HEATER CONTROL ASSEMBLY (WITHOUT A/C)
IGNITION SWITCH
INTERVAL GOVERNOR
LEFT COURTESY LAMP SWITCH
LOW OIL LEVEL RELAY
MAIN LIGHT SWITCH
MULTI-FUNCTION SWITCH
REAR ANTI-LOCK BRAKE (RABS) MODULE
RIGHT COURTESY LAMP SWITCH
TURN SIGNAL FLASHER
VACUUM LINE CONNECTOR
VACUUM MOTOR

Component Locations:

CLUTCH PEDAL POSITION SWITCH
ELECTRIC SHIFT CONTROL SWITCH
FOUR-CHANNEL AMPLIFIER
HORN RELAY
HORN SWITCH
IGNITION KEY WARNING SWITCH
INERTIA FUEL SHUTOFF SWITCH
INSTRUMENT CLUSTER
MANUAL CLUTCH PEDAL POSITION SWITCH JUMPER (AUTOMATIC)
PARK BRAKE SWITCH
RABS TEST CONNECTORS
SPEED CONTROL AMPLIFIER
SPEED CONTROL SWITCH ASSEMBLY
WARNING CHIME MODULE
