Full Body Views

Component Locations:

4x4 INDICATOR SWITCH
A4LD AUTOMATIC TRANSMISSION SHOWN;
BACKUP LAMP SWITCH
ELECTRIC SHIFT CONTROL MODULE (SUPERCAB SHOWN; REGULAR CAB SIMILAR)
FUEL PUMP/FUEL GAUGE SENDER
LEFT DOOR LOCK MOTOR
LEFT DOOR LOCK SWITCH
LEFT FRONT WINDOW MOTOR
LEFT POWER MIRROR
MANUAL TRANSMISSION
MASTER WINDOW CONTROL SWITCH
NEUTRAL SENSING SWITCH
PARK/NEUTRAL POSITION SWITCH
POWER MIRROR SWITCH
RABS PROPORTIONING VALVE SWITCH ASSEMBLY
REAR AXLE SENSOR
TRANSFER CASE ASSEMBLY
VEHICLE SPEED SENSOR (VSS)

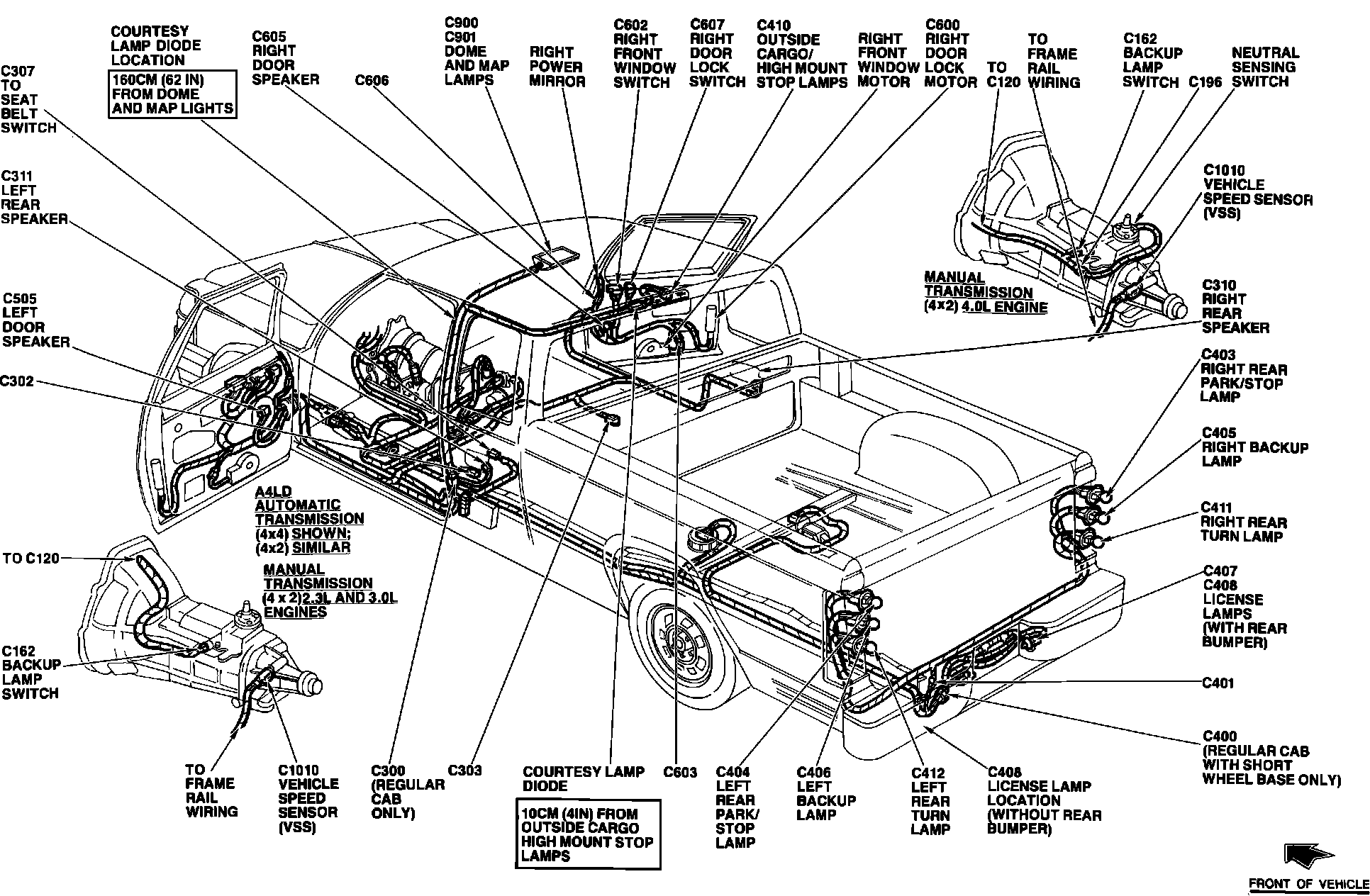

Component Locations:

A4LD AUTOMATIC TRANSMISSION
BACKUP LAMP SWITCH
COURTESY LAMP DIODE
DOME AND MAP LAMPS
LEFT BACKUP LAMP
LEFT DOOR SPEAKER
LEFT REAR PARK/STOP LAMP
LEFT REAR SPEAKER
LEFT REAR TURN LAMP
LICENSE LAMP LOCATION (WITHOUT REAR BUMPER)
LICENSE LAMPS (WITH REAR BUMPER) (REGULAR CAB WITH SHORT WHEEL BASE ONLY)
MANUAL TRANSMISSION
NEUTRAL SENSING SWITCH
OUTSIDE CARGO/HIGH MOUNT STOP LAMPS
RIGHT POWER MIRROR
RIGHT BACKUP LAMP
RIGHT DOOR LOCK MOTOR
RIGHT DOOR LOCK SWITCH
RIGHT DOOR SPEAKER
RIGHT FRONT WINDOW MOTOR
RIGHT FRONT WINDOW SWITCH
RIGHT REAR PARK/STOP LAMP
RIGHT REAR SPEAKER
RIGHT REAR TURN LAMP
SEAT BELT SWITCH
VEHICLE SPEED SENSOR (VSS)
