Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1993
>>
Ranger 4WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>

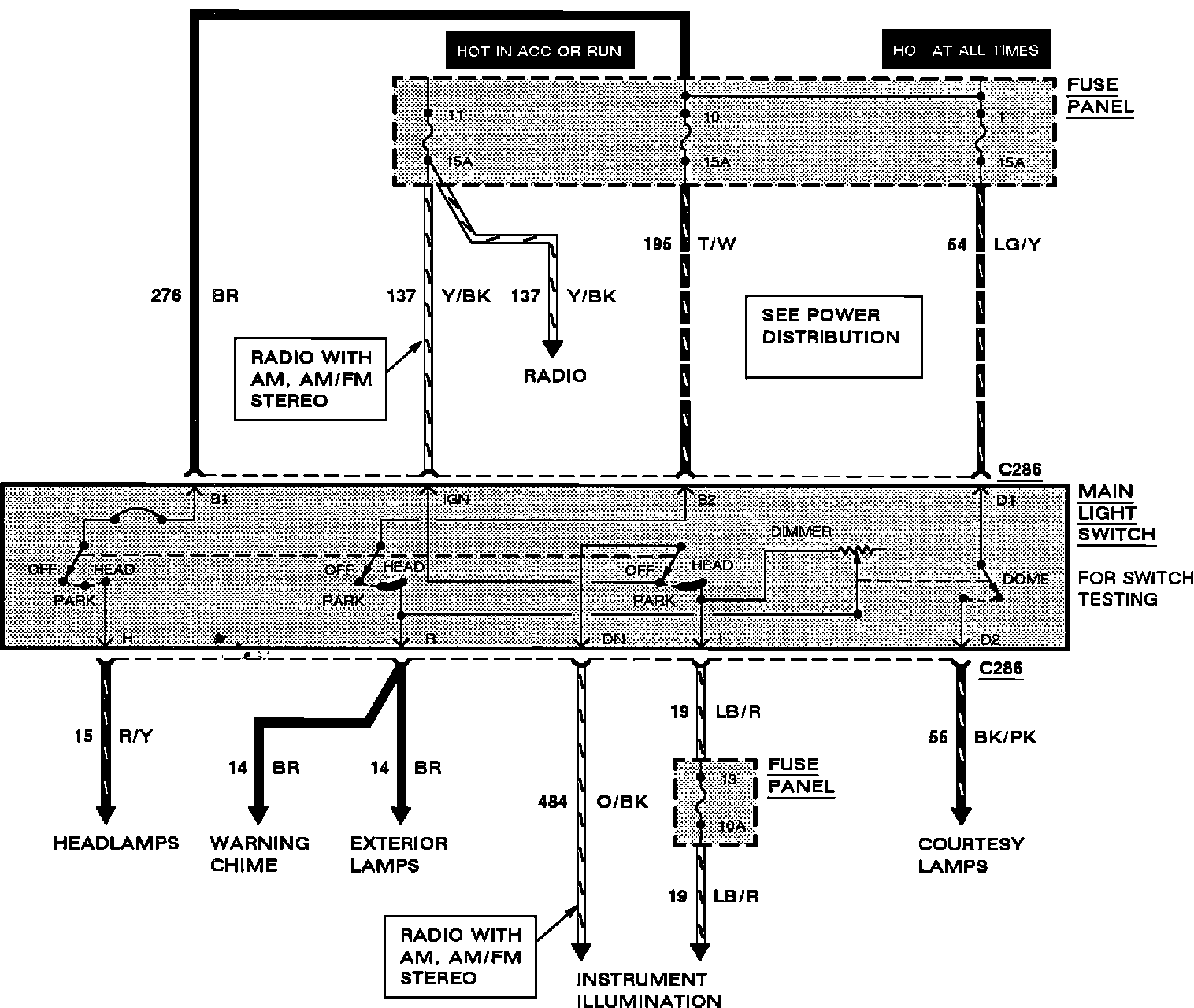

Fuse 11
Fuse 11
Power Distribution:
