Ignition Control Module: Service and Repair

REMOVAL:

Ignition Module:

1. Disconnect both battery cables, then remove the battery from the vehicle.
2. Disconnect the electrical connector from the ignition module.

NOTE: To disconnect the module connector, push on the connector where it says PUSH, then slide the connector from the module.

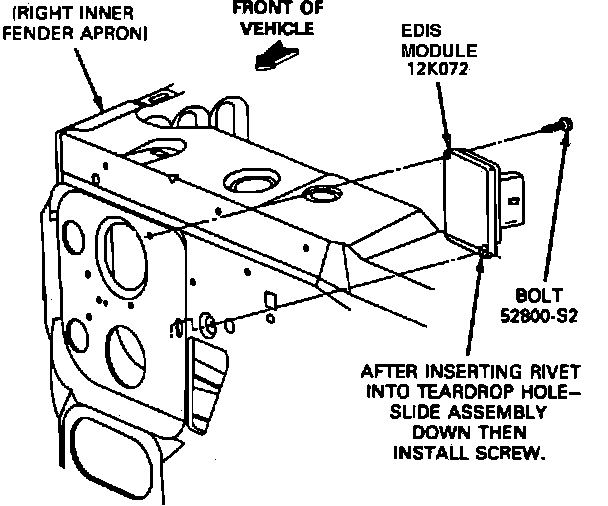

3. Remove the ignition module retaining bolt and remove the module by sliding the assembly up until it is released from the teardrop shaped hole in the sheet metal.

INSTALLATION:

1. Place the module on the sheet metal so the retaining rivet passes through the hole, then slide the module down into position. Install the retaining bolt. Torque to 22-31 in lb (2.2-3.5 Nm).
2. Connect the electrical connector to the module.
3. Install the battery and cables.
