Ignition Switch: Testing and Inspection

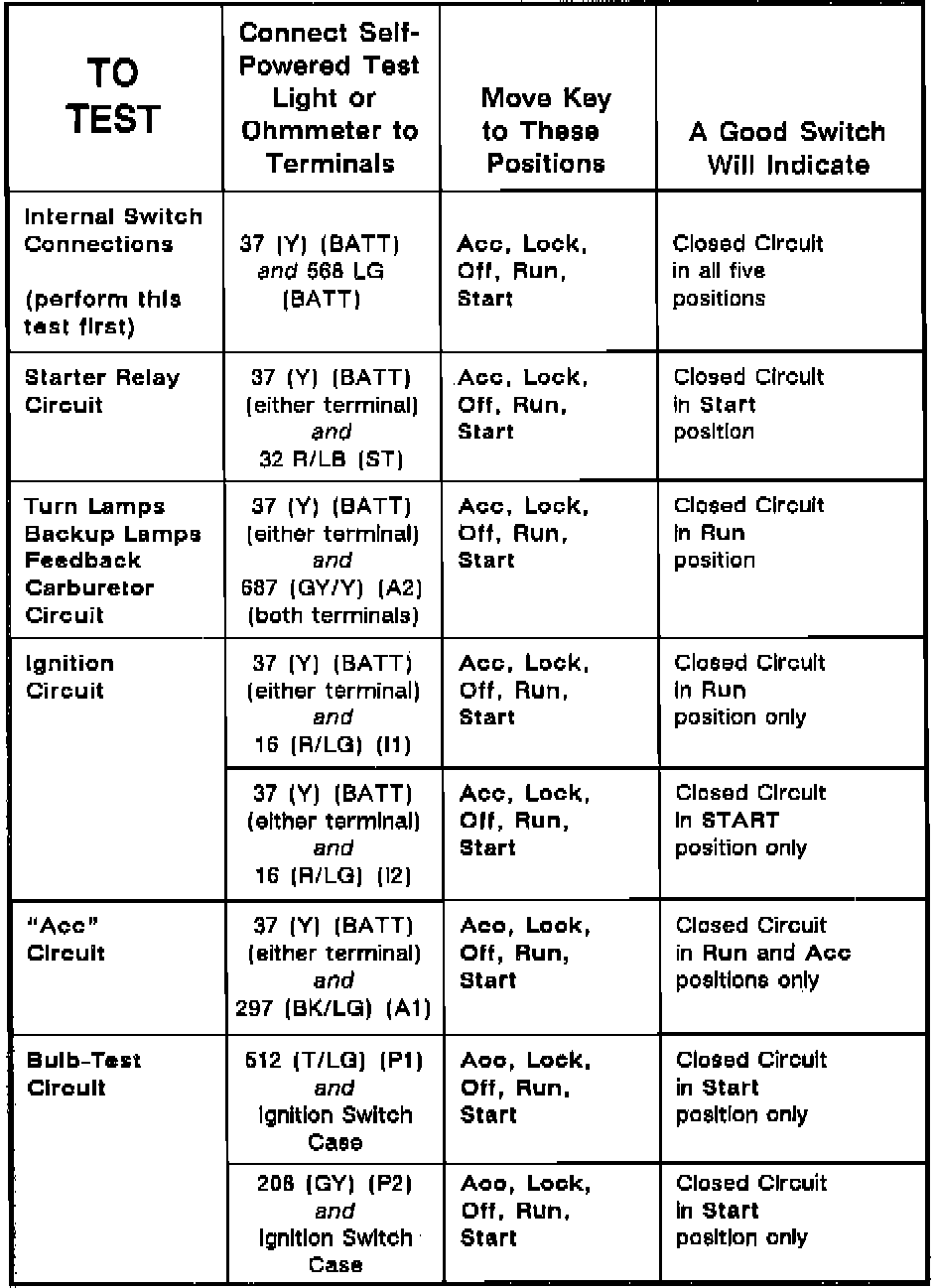

Component Testing Procedure:

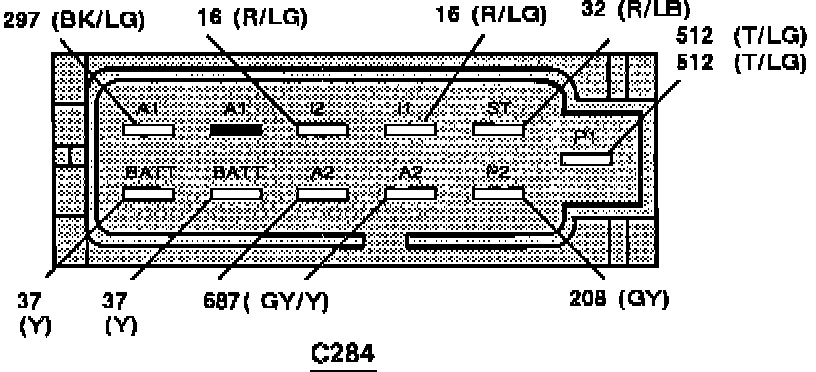

Ignition Switch (Component View):

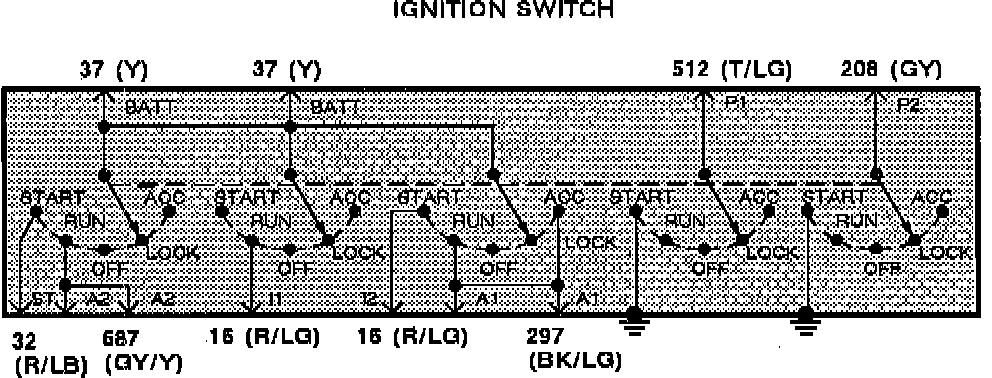

Schematic:
