Neutral Safety Switch: Testing and Inspection

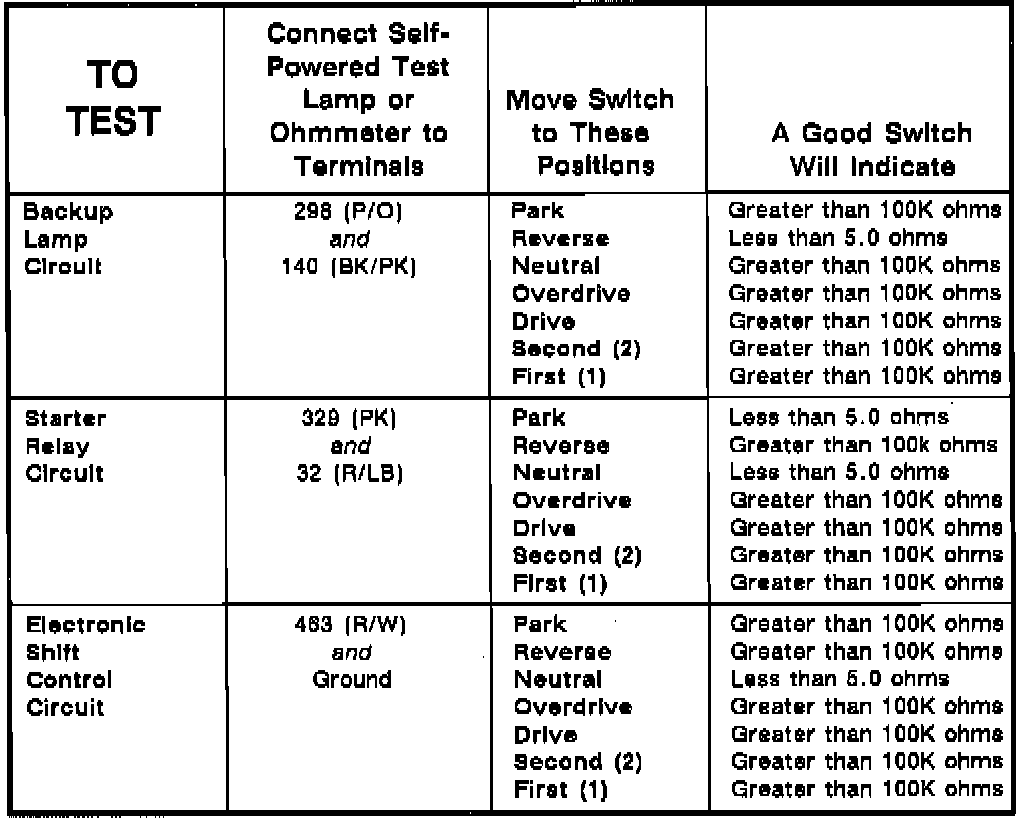

Component Testing Procedure:
Park/Neutral Position Switch (A/T Only):
Schematic Park Neutral Switch - Transmission Mode Switch:
