Starting System: Testing and Inspection

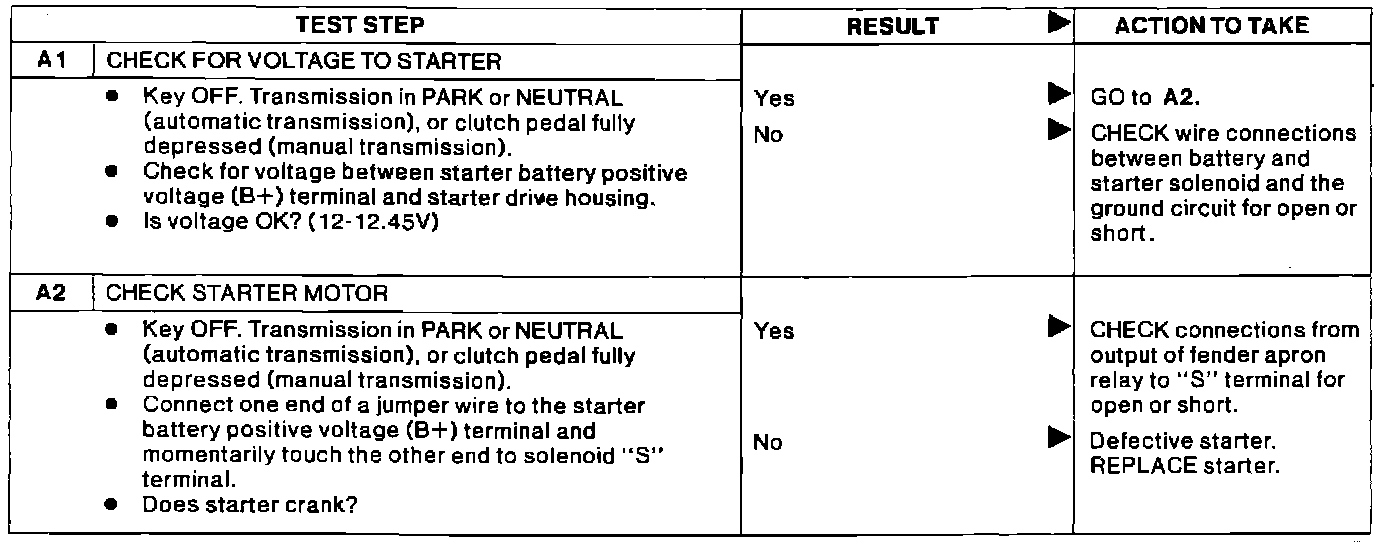

Test A, Check Starter Motor:

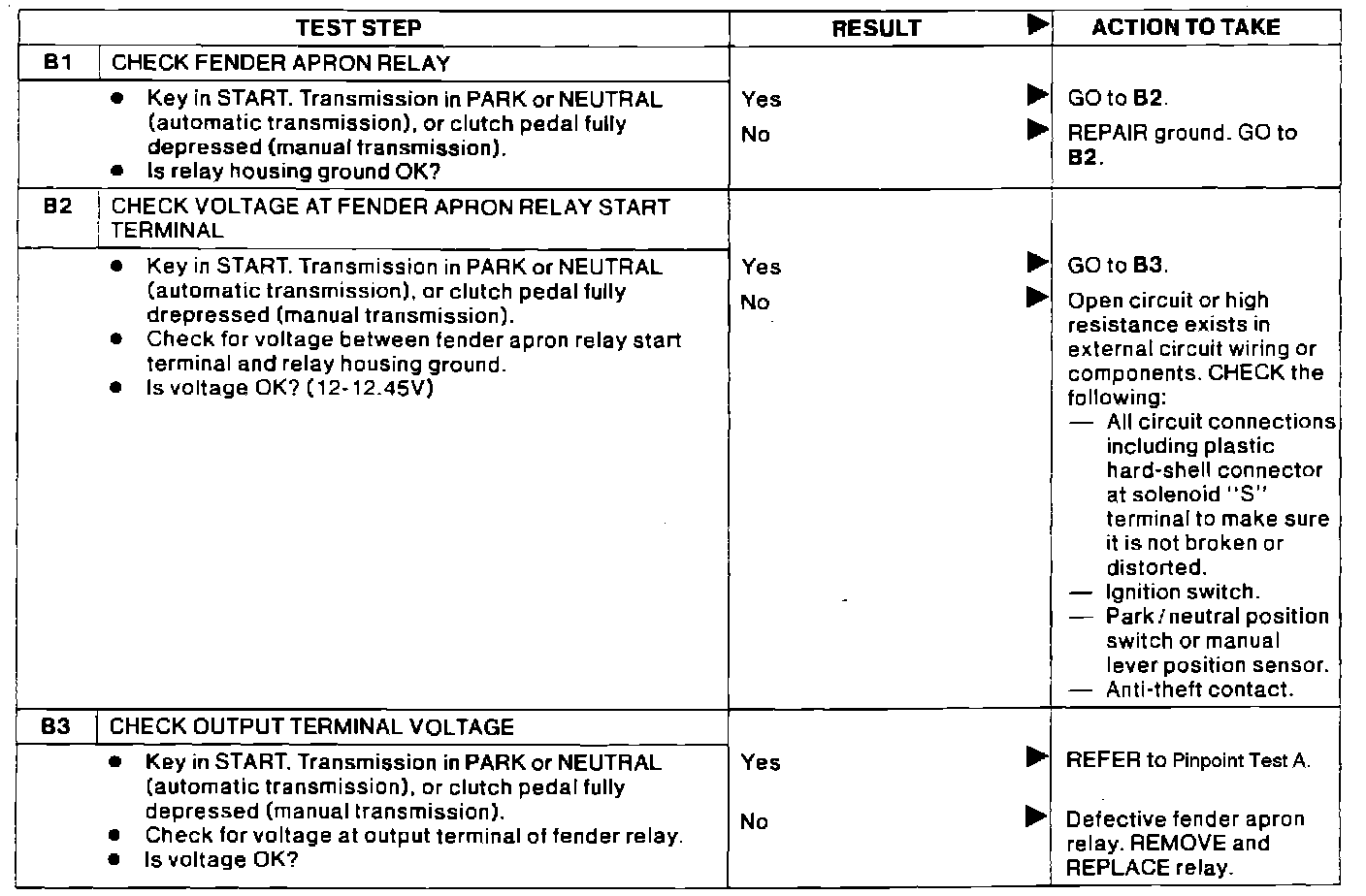

Test B, Check Fender Apron Relay:
