Additional Tightening Specifications



This article has been updated by technical service bulletin (TSB) 94-10-10 dated 05/18/94.

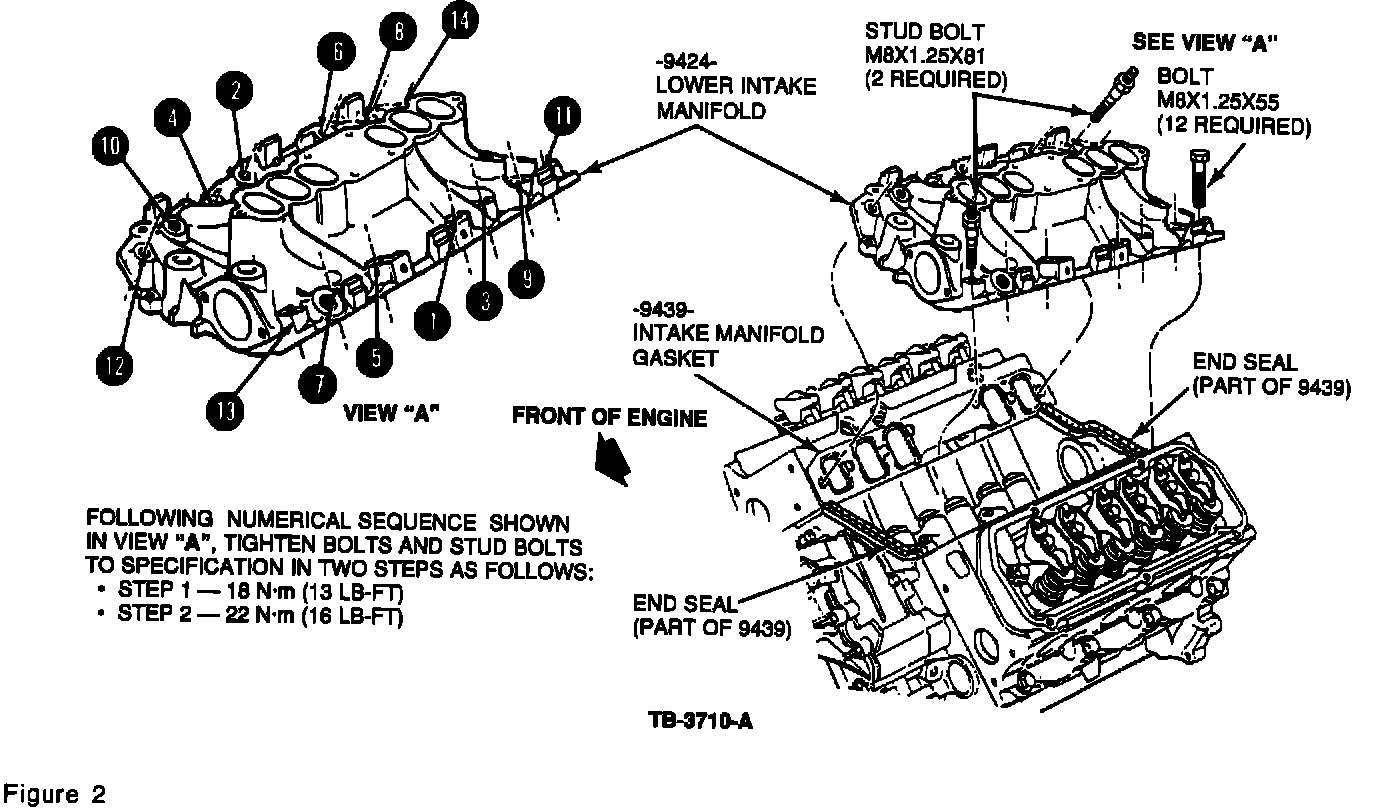

Lower Intake Manifold
Tighten in two steps in numerical sequence to the following specifications:
Step 1 18 Nm (13 ft. lbs.)
Step 2 22 Nm (16 ft. lbs.)

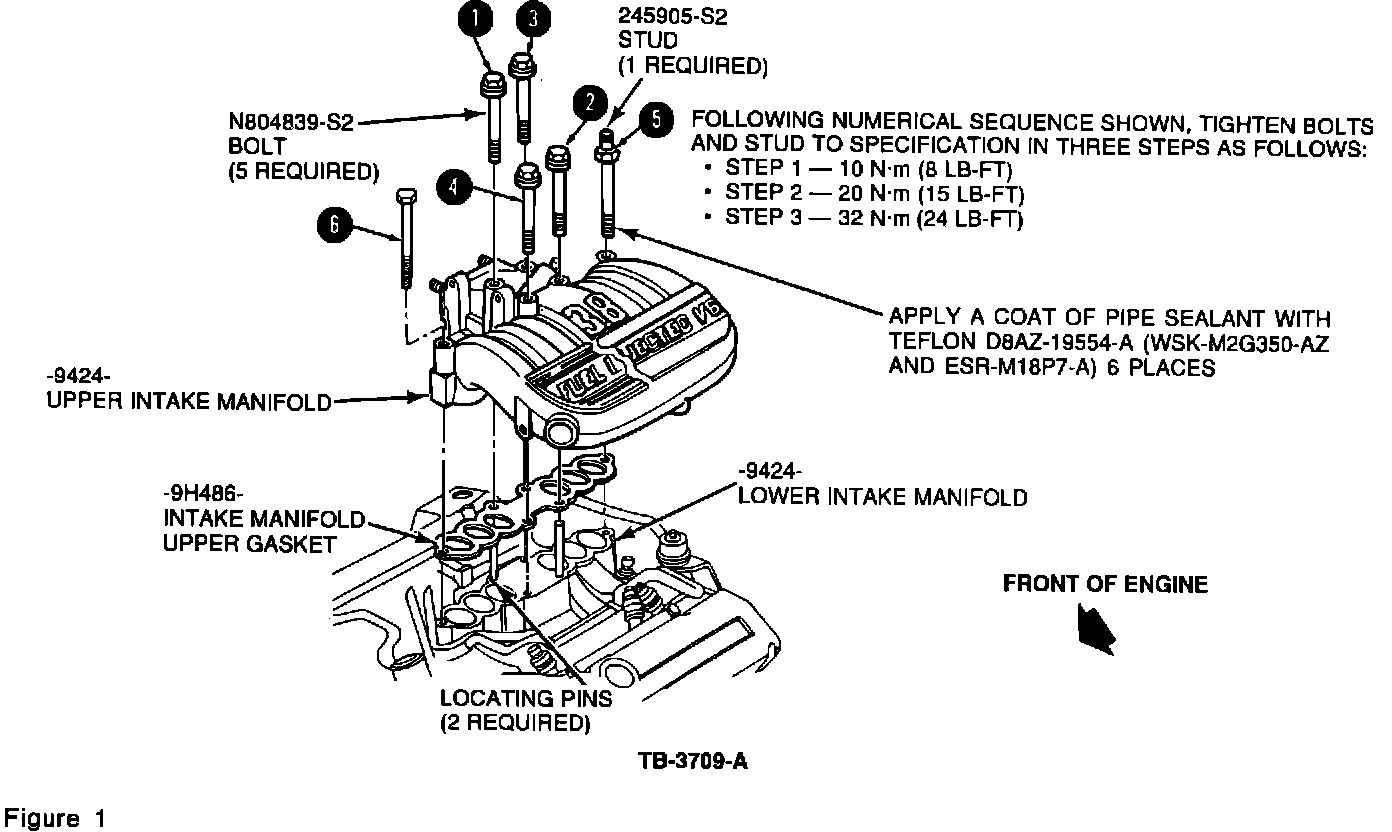

Upper Intake Manifold
Tighten in sequence in three (3) steps starting with the four center bolts to the following specifications:
Step 1 10 Nm (8 ft. lbs.),
Step 2 20 Nm (15 ft. lbs.),
Step 3 32 Nm (24 ft. lbs.)
