Home >> Ford >> 1994 >> Aerostar 2WD V6-245 4.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Digital

Digital

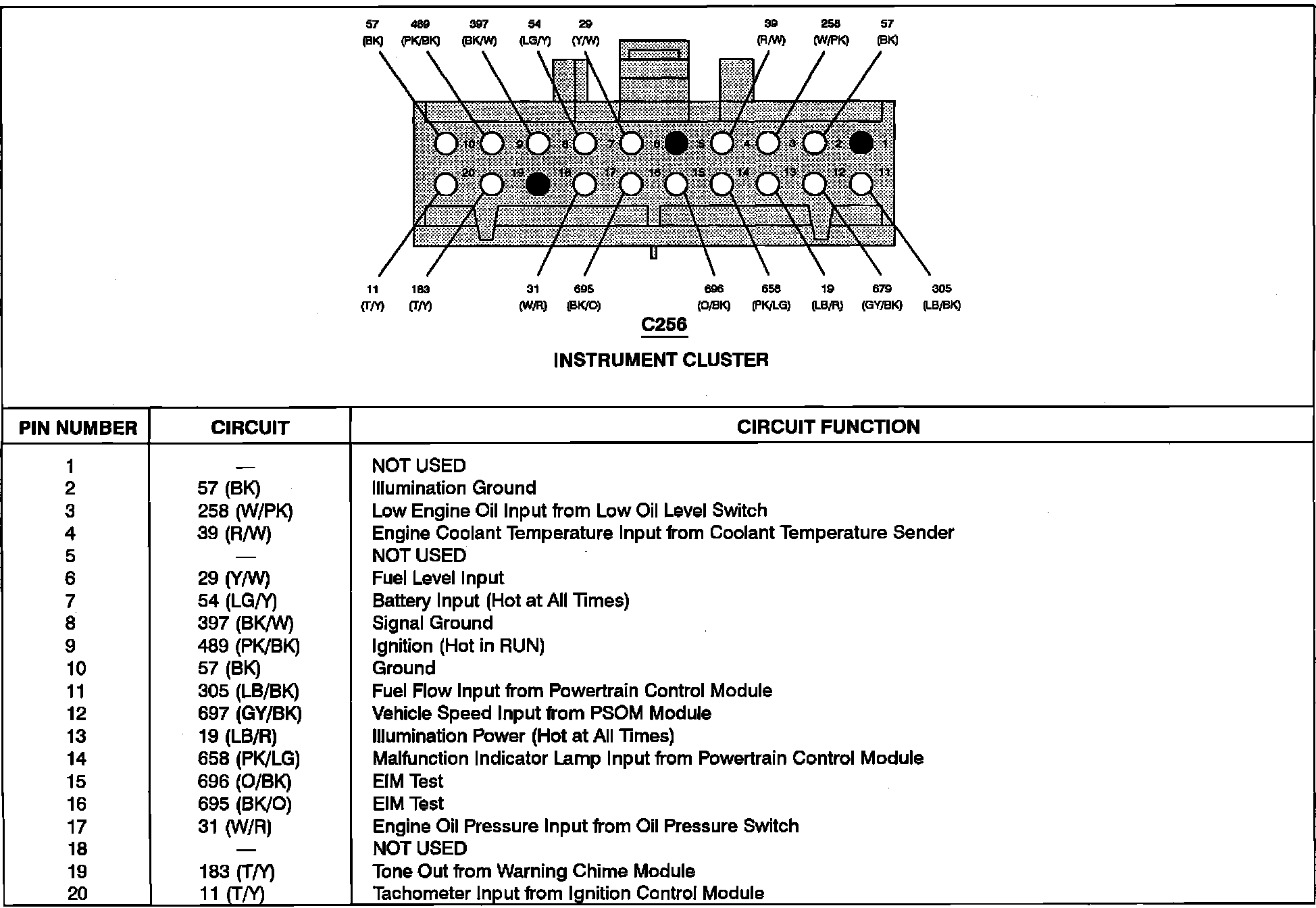

Instrument Cluster:




Instrument Cluster:




Instrument Cluster:




Instrument Cluster:




Instrument Cluster:
