Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1994
>>
Aerostar 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

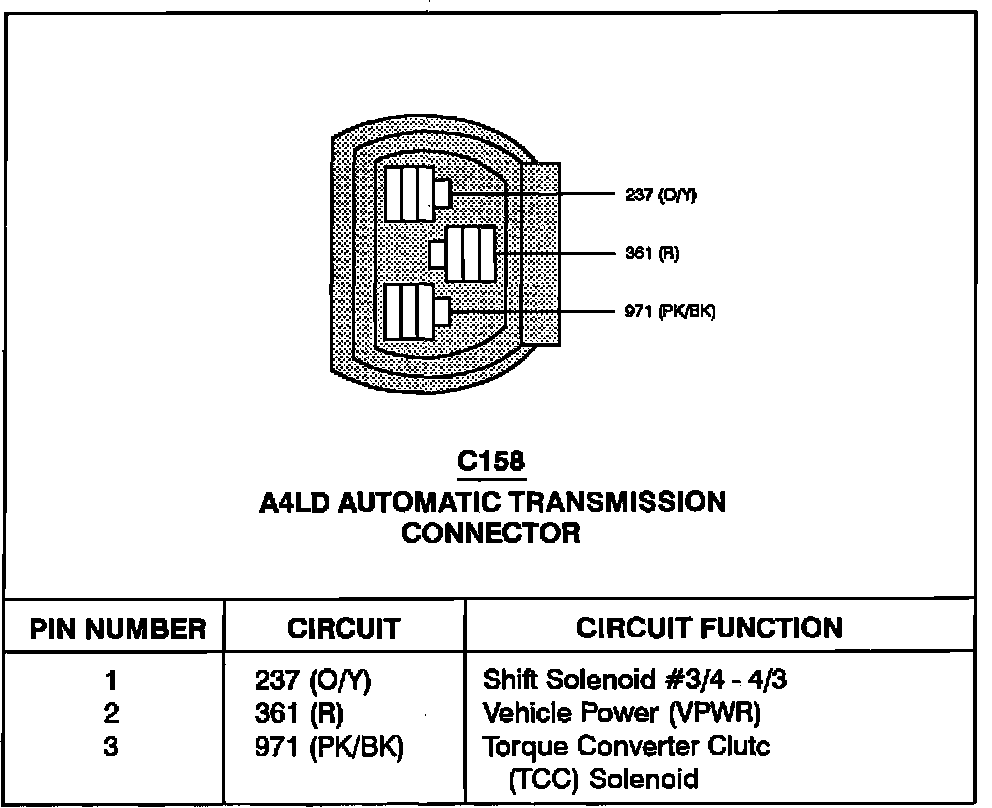

A4LD Automatic Transmission Connector:
