Engine Controls

Electronic Engine Control:

FUEL PUMP/FUEL GAUGE SENDER
FUEL PUMP RELAY
INERTIA FUEL SHUT-OFF SWITCH
PCM POWER RELAY

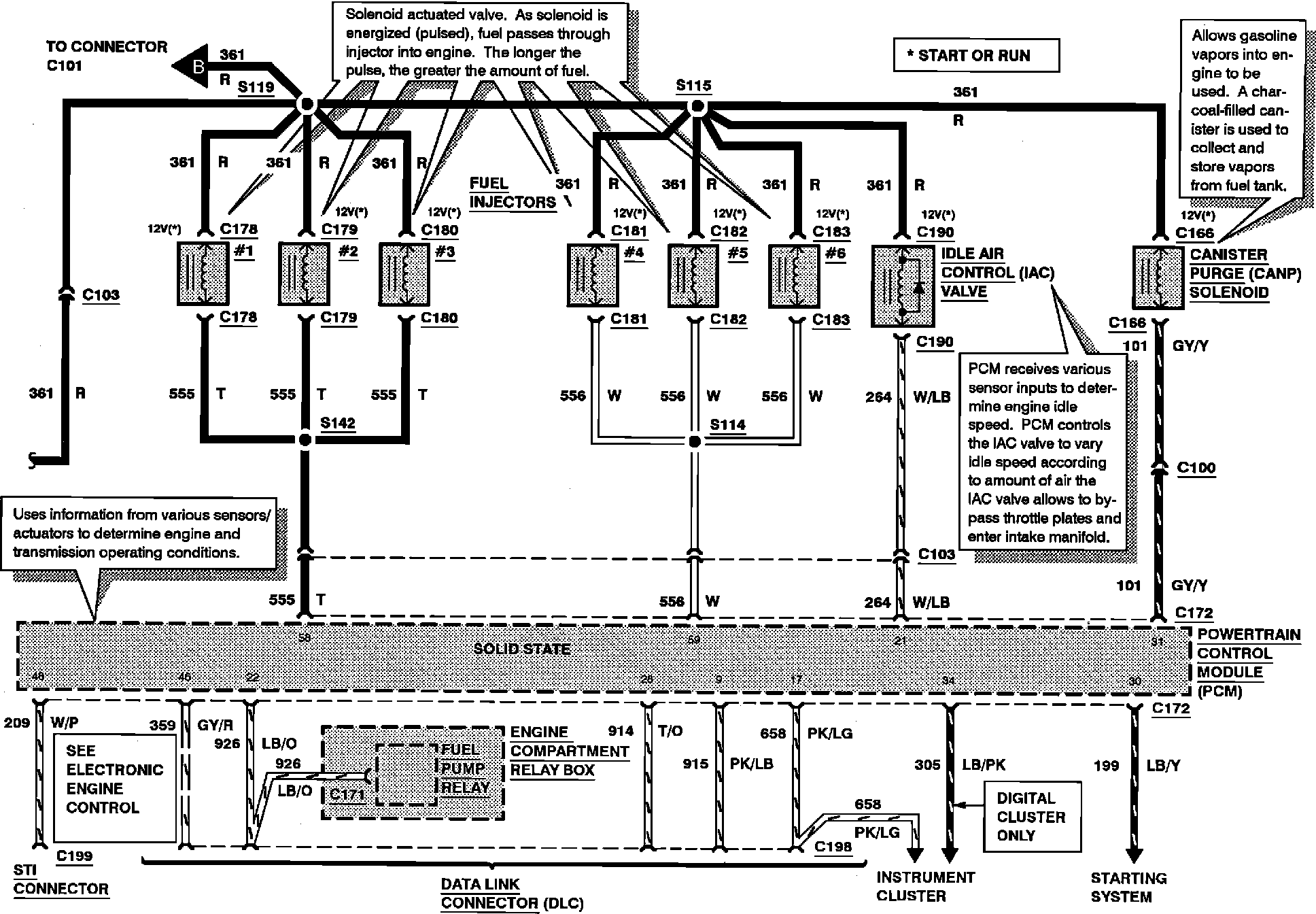

Electronic Engine Control:

CANISTER PURGE (CANP) SOLENOID
FUEL INJECTORS
IDLE AIR CONTROL (IAC) VALVE

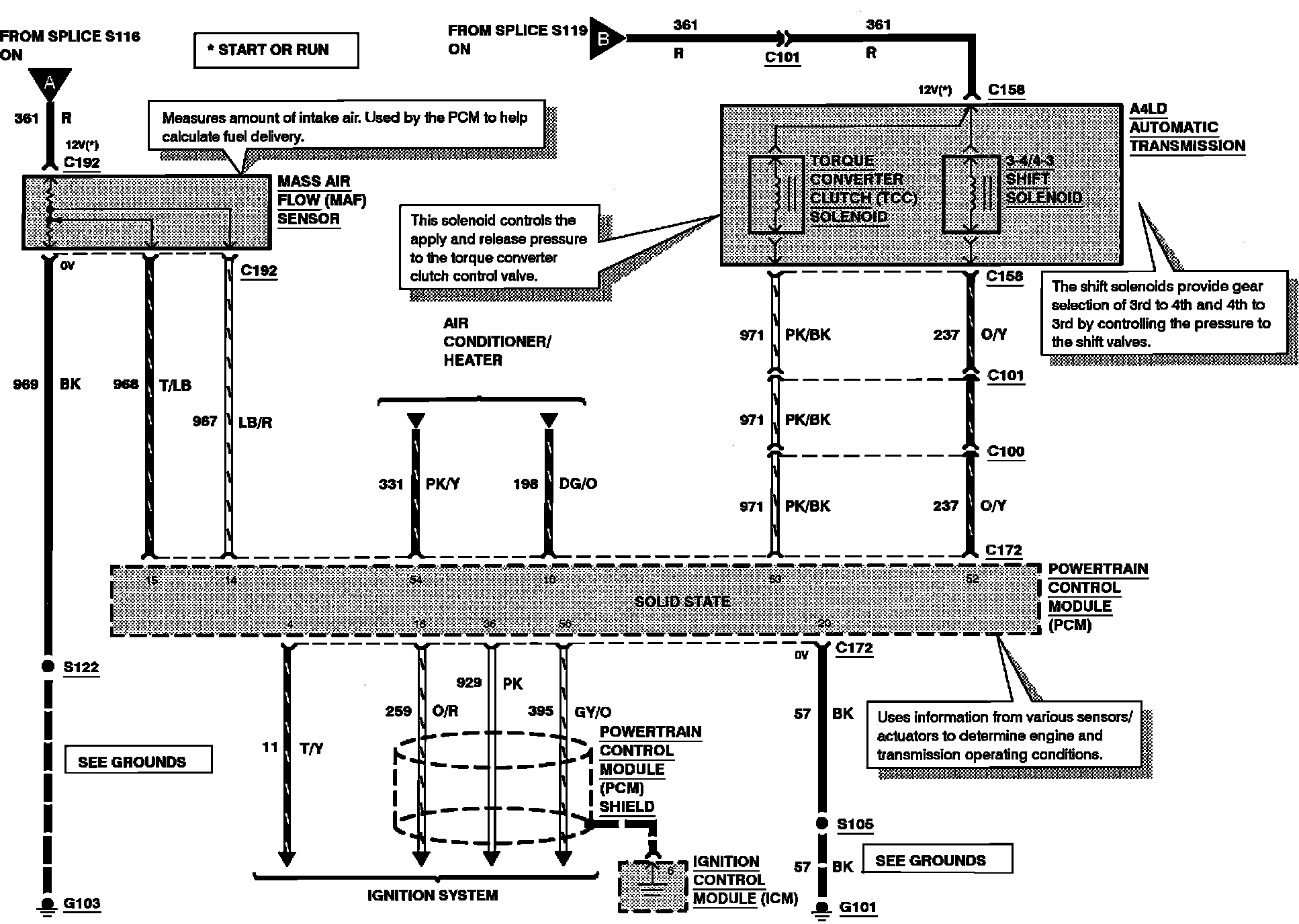

Electronic Engine Control:

3-4/4-3 SHIFT SOLENOID
MASS AIR FLOW (MAF) SENSOR
TORQUE CONVERTOR CLUTCH (TCC) SOLENOID

Electronic Engine Control:

ENGINE COOLANT TEMPERATURE (ECT) SENSOR
HEATED OXYGEN SENSOR (HO2S)
INTAKE AIR TEMPERATURE (IAT) SENSOR
OCTANE ADJUST PLUG
THROTTLE POSITION (TP) SENSOR
