Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1994
>>
Aerostar 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Heating and Air Conditioning
>>
Heater System Diagrams
Heater System Diagrams

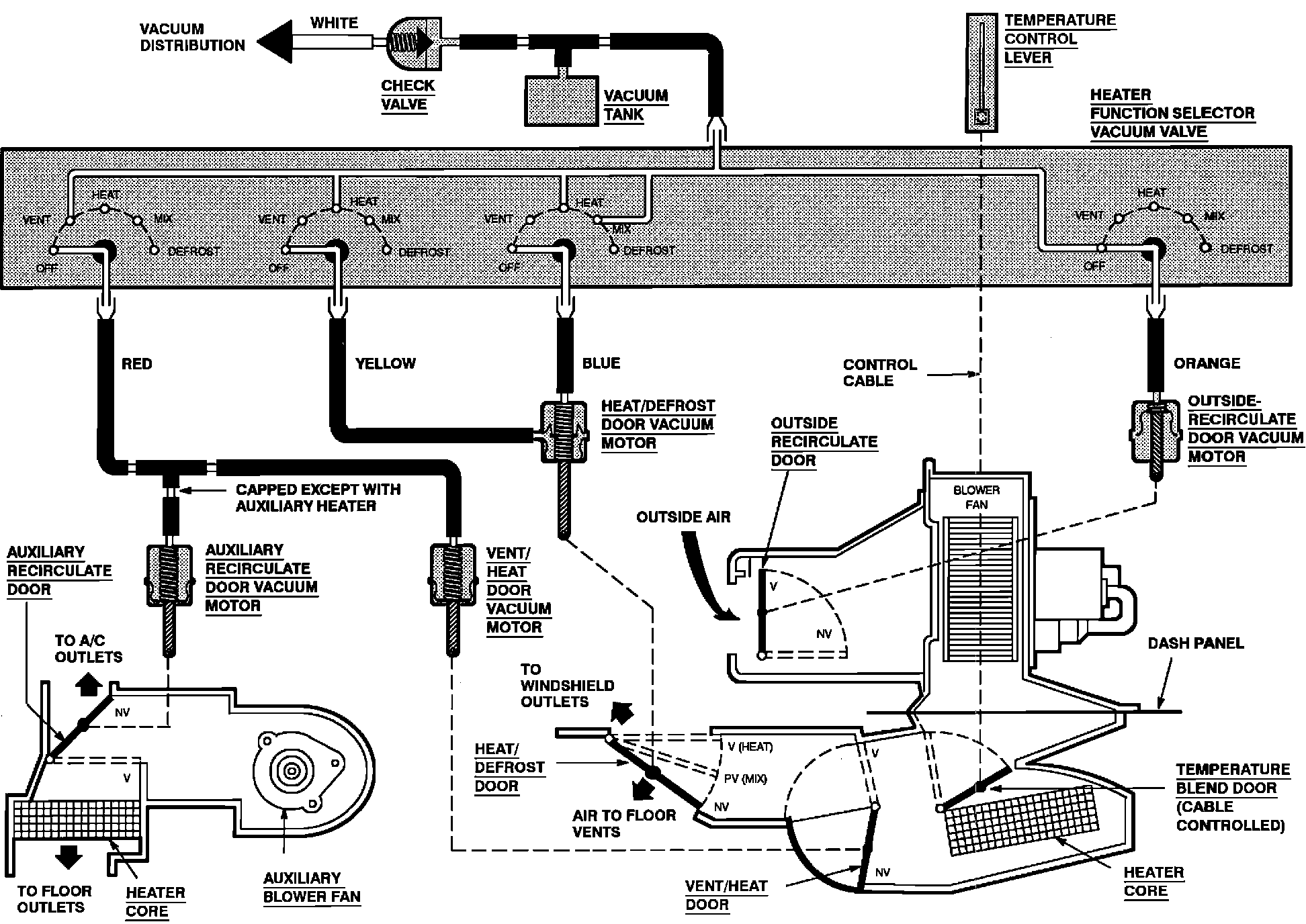

Heater:
